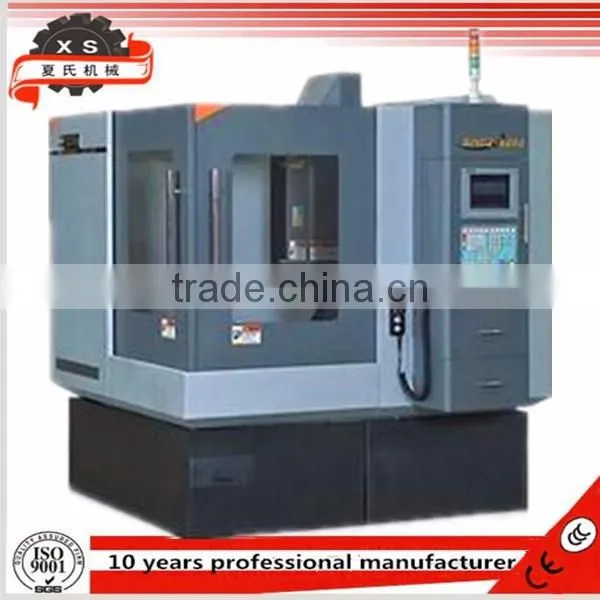

Help CenterBMDX6050 Metal CNC Engraving and Milling Machine With High Quality
Related Products
-
CNC Vertical Machining Center BVMC850NegotiableMOQ: 1 Set -
VMC(VC)1000L Vertical Machining Center (line Track)NegotiableMOQ: 1 Set
-
Vertical Machine Center for Saler VMC850NegotiableMOQ: 1 Piece
-
VMC1060 Hign Precision CNC Vertical Machining CenterNegotiableMOQ: 1 Set
-
VMC850 Cnc Machine Center for Mold Making, Vertical Machining CenterNegotiableMOQ: 1 Set
High rigid mechanical structure and humanized design to make the product reliable, convenient, practical, excellent price
High precision ball screw and linear guide rail of Taiwan Silver
X, Y, U, V axis linear guide rail structure

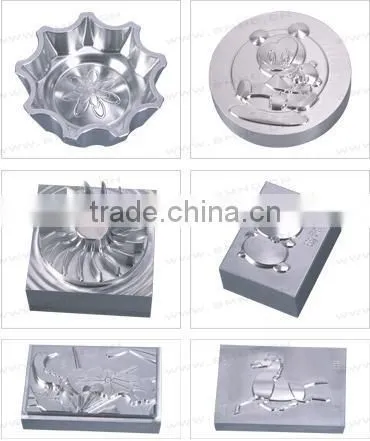

Applies to: engraving mold and other industries
Advantage
1.Castings: Meehanite type GC40 (GC275) application
Homogeneous casting Meehanite type GC40 is the most suitable for Qianzhu thickness 10-15mm.This kind of material type of compact structure, good strength, hardness is appropriate, low friction coefficient, and has the self lubrication, so after surface quenching, widely used in metal surface friction between the workpiece caused by thermal shock, such as a machine tool body, head seat, table and cylinder sleeve, quite widely use.
2.Stable and rigid structure
(1)Longmen overall structure greatly improves the strength and rigidity of the body
(2)Using ANSYS finite element analysis method, to reduce the vibration and thermal deformation of machine tool of the maximum.
(3)Integral castings using high quality rice Hanna cast iron (Meehanite), and two times after annealing and tempering treatment to eliminate stress.
(4)Z shaft nut fixing seat and the carriage is an integrated ultra rigid structure
(5)Heavy fuselage guarantee machining high rigidity
(6)Three shaft screw rod bearing all the Japanese NSK
Technical Parameters
X/Y/Z table travel(mm) |
500×600× 260 |
Distance from spindle nose to table surface(mm) |
400 |
Positioning accuracy(mm) |
±0.005/Random 300 |
Repeat positioning accuracy(mm)(mm) |
±0.003/Random 300 |
Spindle speeds /Motor/Taper (Rpm/KW) |
A type: 24000Rpm / 4KW / ER25 (shank diameter Φ3.175-Φ16); B, C-type: 1800Rpm / 5KW / BT30 |
Table size(mm) |
50× 500 |
T-slot(mm) |
14T×P100× 5 |
driving power(X,Y,Z) (kw) |
0.85,0.85,0.85 |
Max.Load (kg) |
500 |
|
Rapid feeding speed (X/Y/Z )(mm) |
10000 |
|
Work feed speed (X/Y/Z )(mm) |
60000 |
Tool magazine specification / Tool storage capacity |
BT30 / 10 handful Armless type (only applies to C-type machine |
Total input power(kw) |
14 or 16 kw |
Machine overall dimensions (mm)(LxWxH) |
1894x1910x2050 |
Machine weight(kg) |
3000 |
standard accessory
01 |
Host |
|
1 |
Including electric cabinet |
02 |
Automatic lubrication system |
|
1set |
|
03 |
Closed guard |
|
1set |
|
04 |
Three-color warning lights |
|
1 |
|
05 |
Coolant tank |
|
1 |
|
06 |
Electronic hand wheel |
|
1 |
|
07 |
ER25 tool chuck |
φ4,φ6,φ8,φ10,φ12 |
1set |
|
08 |
flat cutting pliers |
150mm |
1 |
|
09 |
Combination plate |
M12 |
1set |
|
10 |
Transmission line |
|
1 |
|
11 |
BT30 shank (with a wrench) |
|
1 |
specially equipped for B-type machine and C-type machine |
12 |
BT30 pull studs |
|
1 |
|
13 |
The pads iron and support 1, adjust the horizontal screw 2, the foot support |
|
|
|
Option Widgets
01 |
Spindle oil cooler |
02 |
Instrument on the knife |
03 |
The auxiliary work table |
04 |
The fourth axis |
05 |
Turntable Style Tool Magazine |

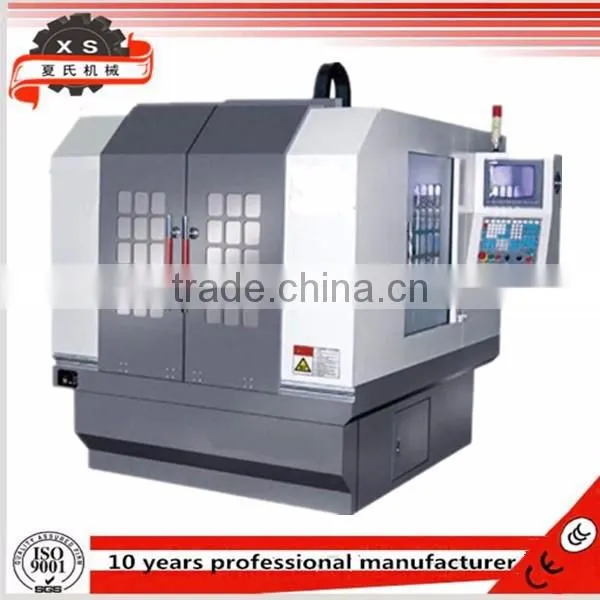

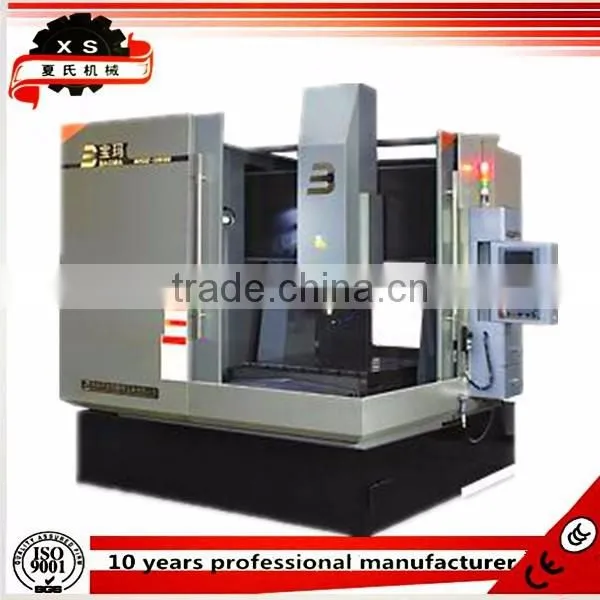

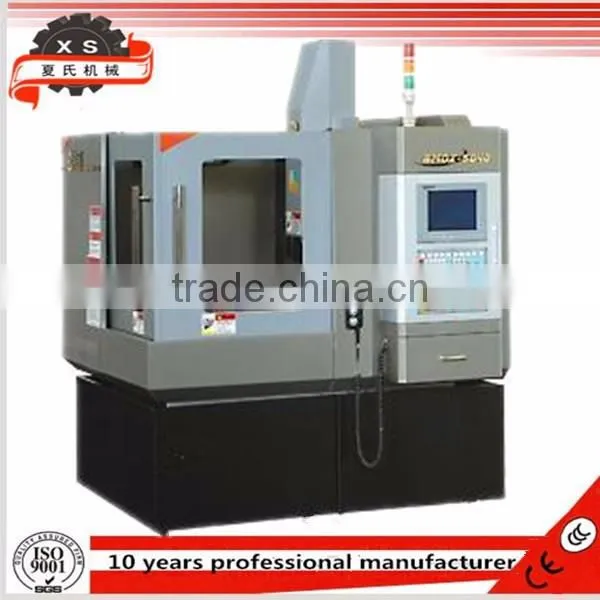

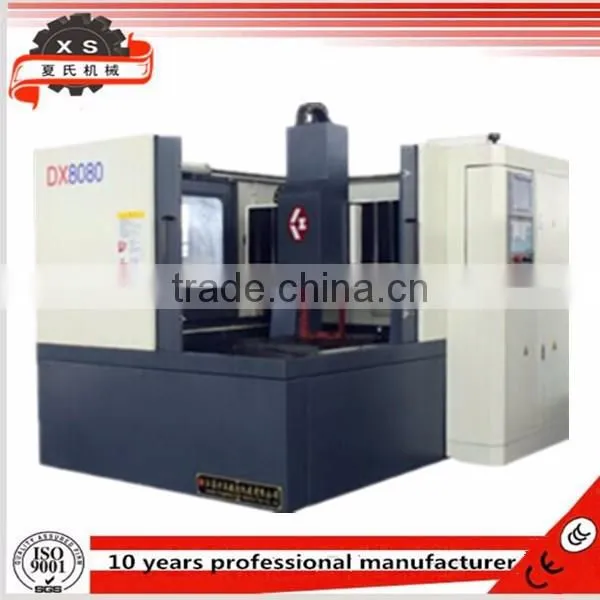

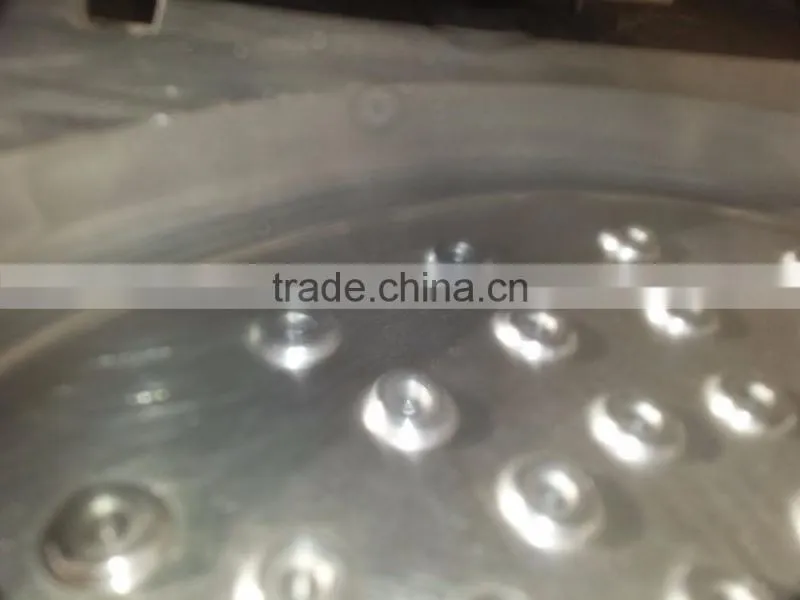

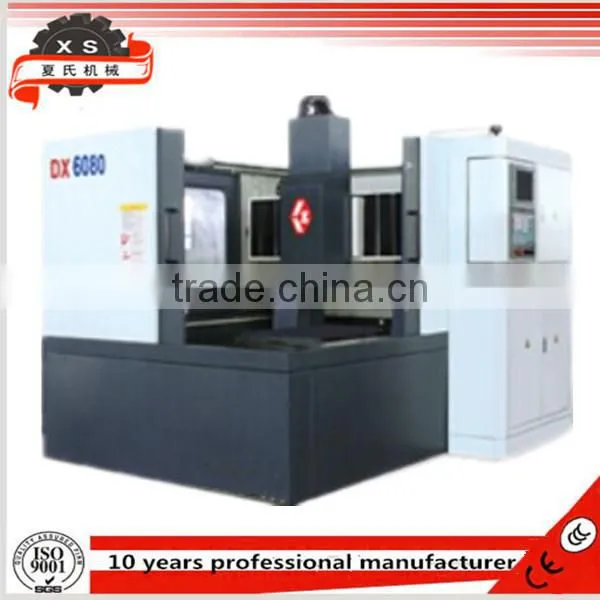

Picture details
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
