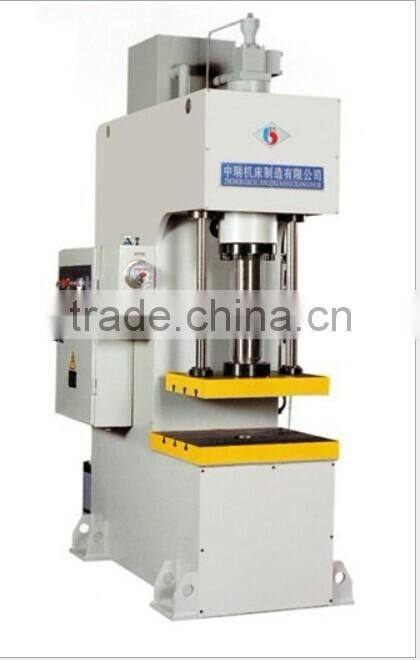

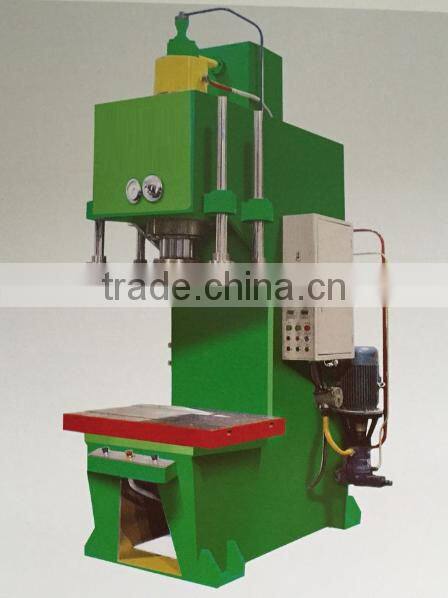

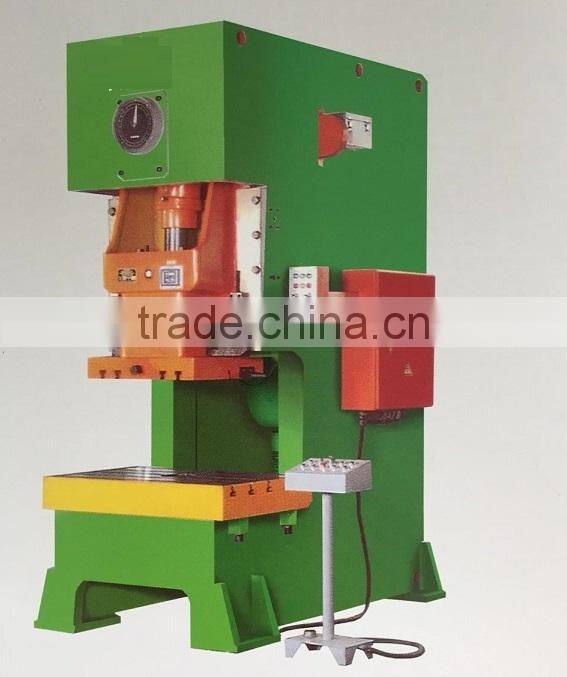

Help CenterYH41-100 High Speed Cframe Single-column Hydraulic Press
Related Products
-
Heavy Duty Machine Four Column Hydraulic Press Machine 300 Ton Y33-300US$ 3,000 - 4,000MOQ: 1 Set -
High Quality Filter Shell Hydraulic Deep Drawing Press Machine Y28A-80 for Sale,hydraulic PressUS$ 1,500 - 2,000MOQ: 1 Set
-
200 Tons Four Column Universal Hydraulic Press/4 Column Hydraulic Press/hydraulic Press MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
Hot Sale Hydraulic Press Machine Price 500 Tons Y33-500US$ 3,000 - 4,000MOQ: 1 Set
-
FRAME UPLIFTING HYDRAULIC PRESS YDK-100NegotiableMOQ: 1 Set
Intorduction
This series of hydraulic presses have independent hydraulic and electrical control systems and
uses button centralized control to achieve two molding technologies of constant stroke and
constant pressure with functions of pressure display,stroke and pressure adjustment,etc. In
addition,this series has guide pillar for guiding,thus improving the accuracy of products, and the guide pillar and piston rod are given surface hard chromium plating treatment after quenching to ensure the abrasion resistance and better roughness of the surface.The oil pump inlet is
equipped with unique filtration device to ensure the service life of oil pump and valve.The oil
way connections use imported high-pressure hose to greatly reduce machine noise.In addition,
the imported PLC, grating protection,human-computer interface(touch screen) and other
advanced components can be configured based on user requirements.For the special
requirements of customers,we can make special design and production to meet the production
technological requirements of customers to the maximum extent.
Technical parameters
Type | Value | Unit | ||
Rated pressure | 1000 | KN | ||
| Max.hydraul ic pressure | 25 | mm | |
| stoke of slide | 600 | mpa | |
open height | 800 | mm | ||
throat depth | 400 | mm | ||
Blanking hole diameter | 200 | mm | ||
Slipper speed
| Empty descending | 100 | mm/s | |
| Return velocity of the slipper | 100 | mm/s | |
Platform size
| right-left
| 800 | mm | |
| front-back
| 700 | mm | |
|
|
|
| |
Table height above floor |
| 800 | mm | |
Dimensions of dropping hole |
| - | - | |
Overall dimensions | right-left | 2000 | mm | |
| back-front | 1655 | mm | |
| Height | 2810 | mm | |
Main motor | 7.5 | KW | ||

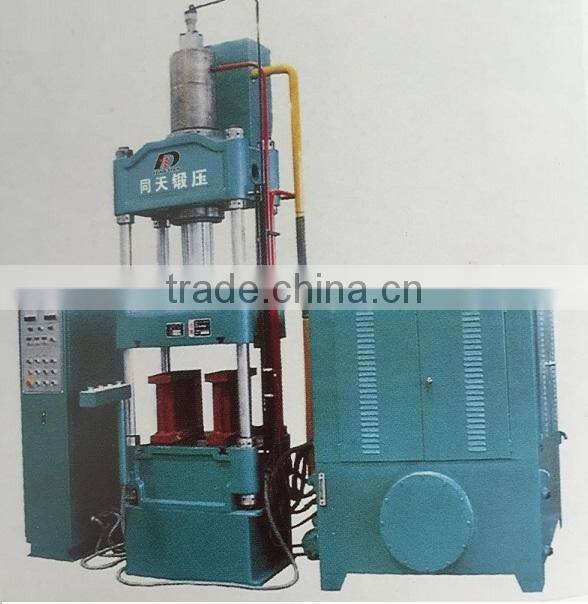

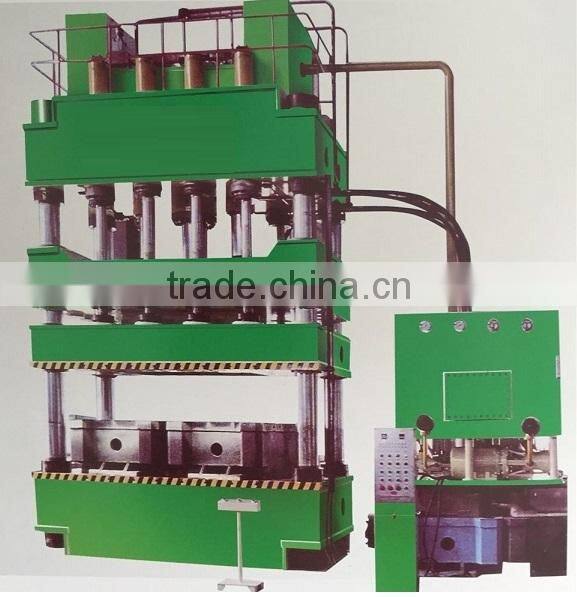

Detailed pictures for your reference

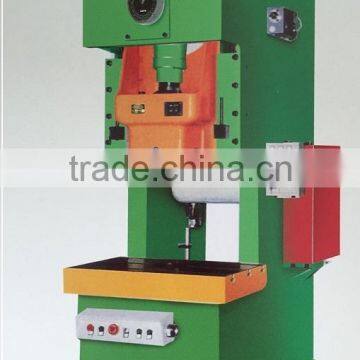

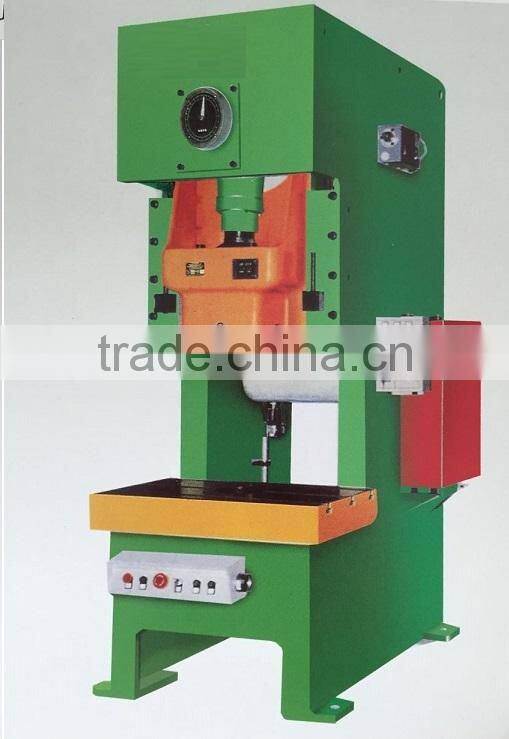

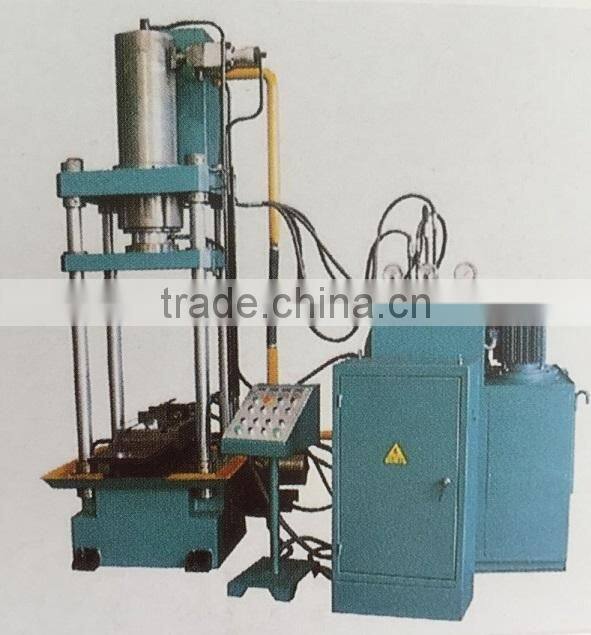

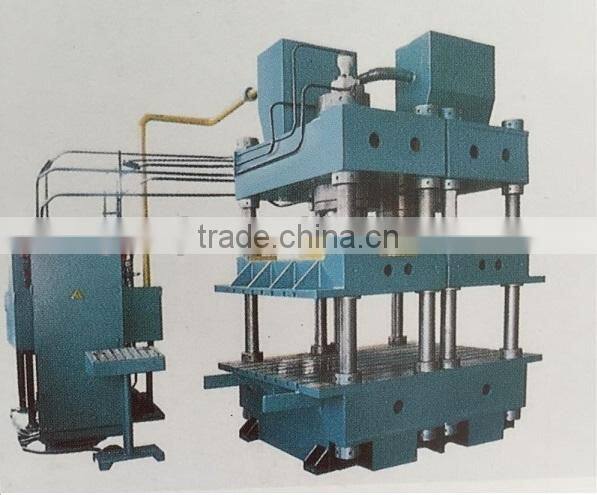

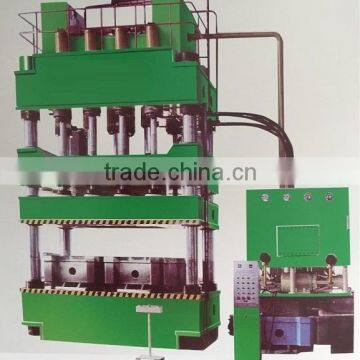

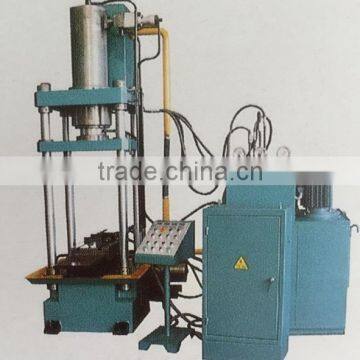

Other Press Machine
We will pack the machine with standard export wooden case ,ensure the transport safety
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
