125T Hydraulic Horizontal Baler,cardboard Baling Press Machine
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
Hydraulic Vertical Semi-auto Waste Paper Baler Machine Y82-250T
-
Hydraulic Vertical Semi-auto Baler Machine for PET Bottles, Used Clothes and Paper Cardboard DB-20T
-
Hydraulic Full-automatic Horizontal Baler Machine for Eucalyptus Leather,cardboard Baling Press Machine YW2-150T
-
Y81-1600B Hydraulic Scrap Iron Copper Aluminum Steel Baling Machine
-
Q43-1000 Automatic PLC Control Alligator Shear for Recycling Industry
-
Q43-630 Automatic PLC Control Alligator Shear for Recycling Industry
Product Details
| Condition | New | Packaging Type | Film | |
| Packaging Material | Paper, Plastic | Automatic Grade | Automatic | |
| Driven Type | Hydraulic | Voltage | 380v(50Hz) | |
| Power | 30kw | Brand Name | Xiashi | |
| Model Number | YB4-125T | Weight | 14000kg | |
| Dimension(L*W*H) | 9500x12000x3500(mm) | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application
Applicable for baling & belting of loose materials like scrap paper (cardboard,newspaper),plastic
scraps(PET bottle,plastic film or crates) & straw,etc.
Features:
1) Horizontal structure; Feeding can be manual or automatic with conveyor.
2) PLC control, push-button operation, safe & reliable.
3) Manual belting.
Technical parameter
Model | YB4-125T |
Main system | 125KN |
operation mode | hydraulic power |
power of motor | 30KW (host) + 4KW (conveyor optional) |
Oil pump Model | YCY14-1B-80 |
rated Displacement | 80ml / r |
rated pressure | 31.5MPa |
Hydraulic oil | 46 # anti-wear hydraulic oil |
Feeding Opening(L×W) | 1500mm × 820mm |
Bale size(W×H×L) | 1100 × 1000mm × 1500-2000mm |
Bale density | 800-1000kg / m3 |
Bale efficiency | 8-10 t (8-10 pack) / hour |
Overall dimensions(L×W×H) | 9500x12000x3500(mm) |
Machine weight | 14000kg |

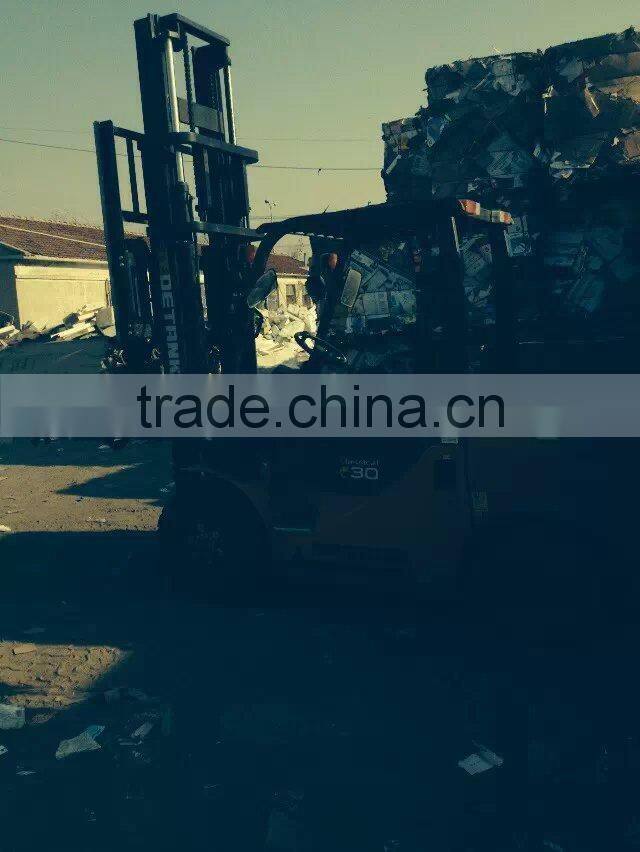

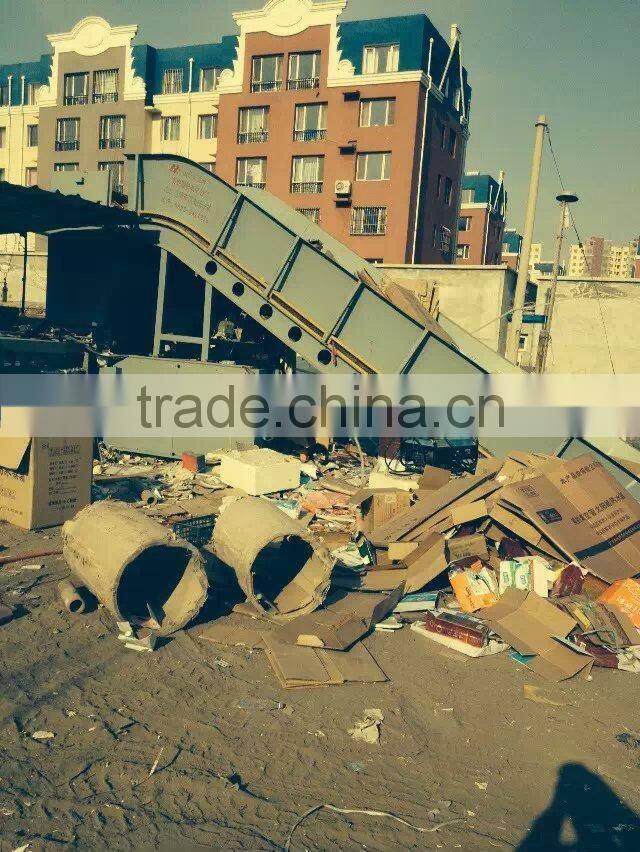

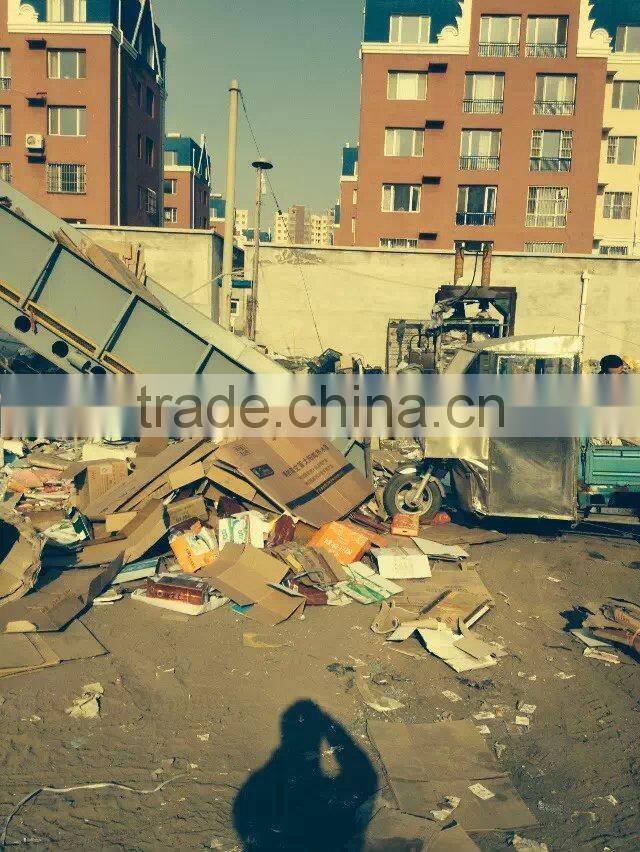

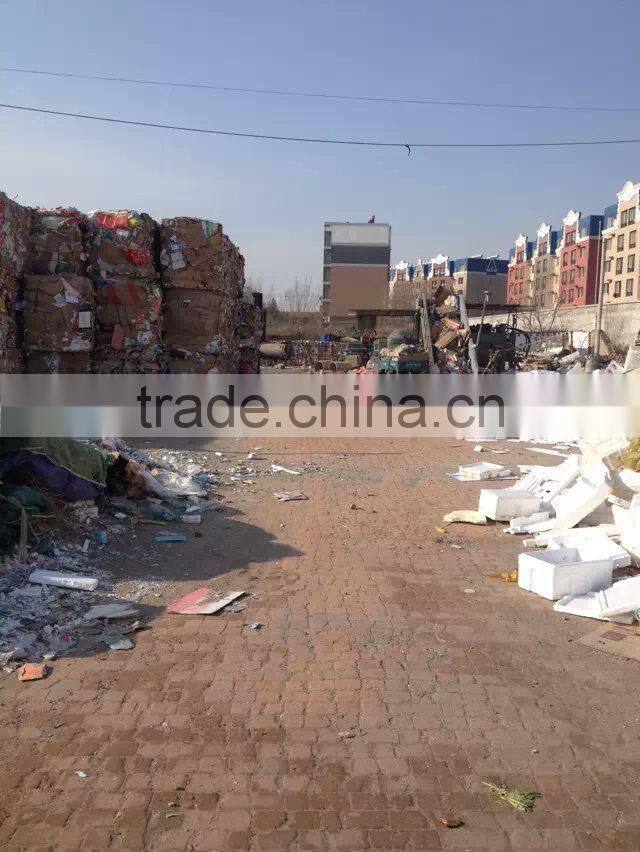

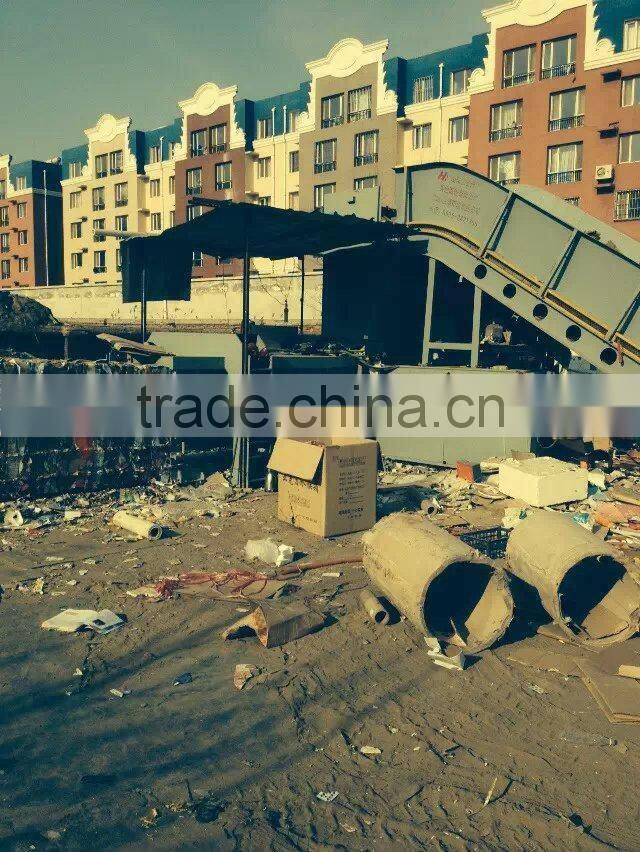

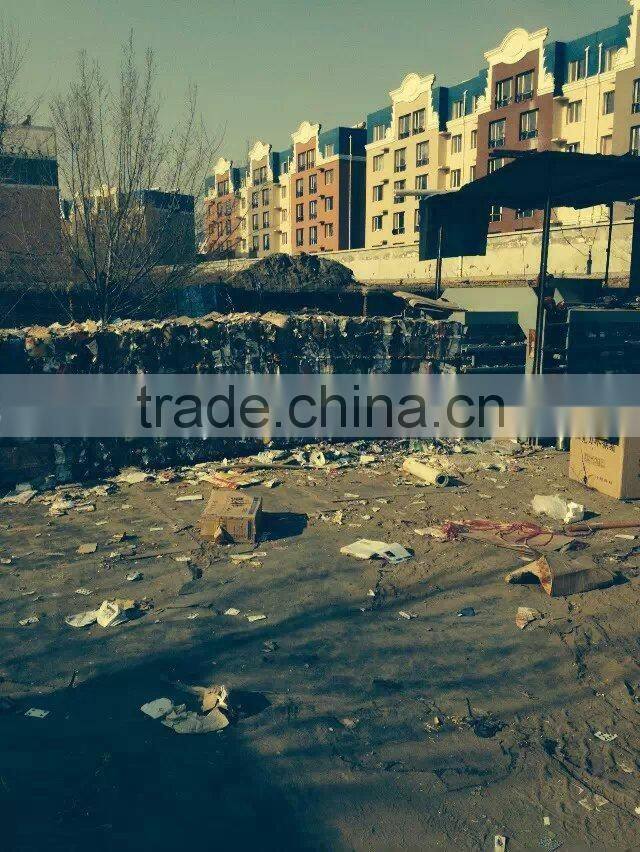

Detailed pictures for your reference
More picture for you reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
