Specifications
1.Metal scrap recycling
2.Operation by PLC automatic or manual valve
Product Description
Y81 metal baling press are suitable for all kinds of scrap metal as following
Apply in
1. Various steel paring
2. Scrap metals, such as waste copper, aluminum, copper and so on
3. All kinds of old things made of metal, like aluminum can, household appliances, oil drum bike, car etc
Features
1.Final bale out way: push out, turn out, lateral push out.
2.Operation by PLC automatic or manual valve.
3.Good quality seals, so no oil leak.
4.Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.
Technical parameter
Y81 Series Hydraulic Scrap Metal Baler | ||||||
No. | Type | Nominal force(KN) | Power (KW) | Feed Box Size (mm) | Bale Size (mm) | Output(kg/h) |
1 | Y81-1250 | 1250 | 15 | 1200*700*600 | 300*300 | 800-1500 |
2 | Y81Q-1350 | 1350 | 22 | 1400*600*600 | 600*240 | 1500-2200 |
3 | Y81-1600A | 1600 | 22 | 1600*1000*700 | 350*350 | 2000-3000 |
4 | Y81-1600B | 1600 | 22 | 1600*1200*800 | 400*400 | 2000-3000 |
5 | Y81-2000 | 2000 | 37 | 1800*1400*900 | 450*450 | 2500-3500 |
6 | Y81-2500 | 2500 | 44 | 2000*1400*900 | 500*500 | 3000-5000 |
7 | Y81-3150 | 3150 | 60/66 | 2000*1750*1200 | 500*500 | 3500-5000 |
8 | Y81-4000C | 4000 | 90 | 3000*2000*1200 | 600*600 | 6000-8000 |
9 | Y81-6000 | 6000 | 135 | 5000*2000*1200 | 700*700 | 8000-10000 |
Note: 1. Please choose the model according to different demand. 2. Manual or PLC automatic control can be chosen! | ||||||

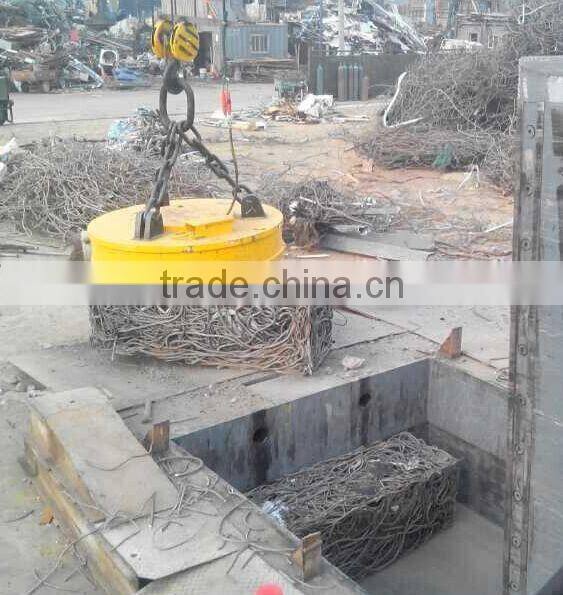

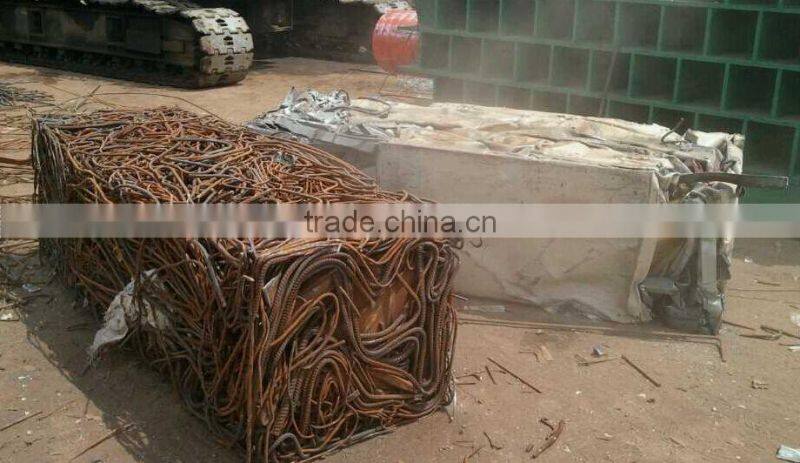

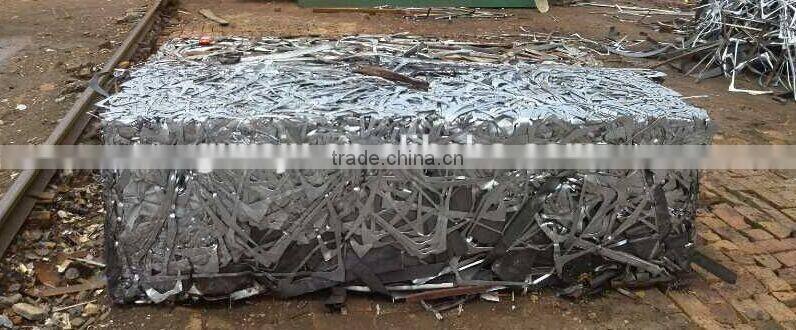

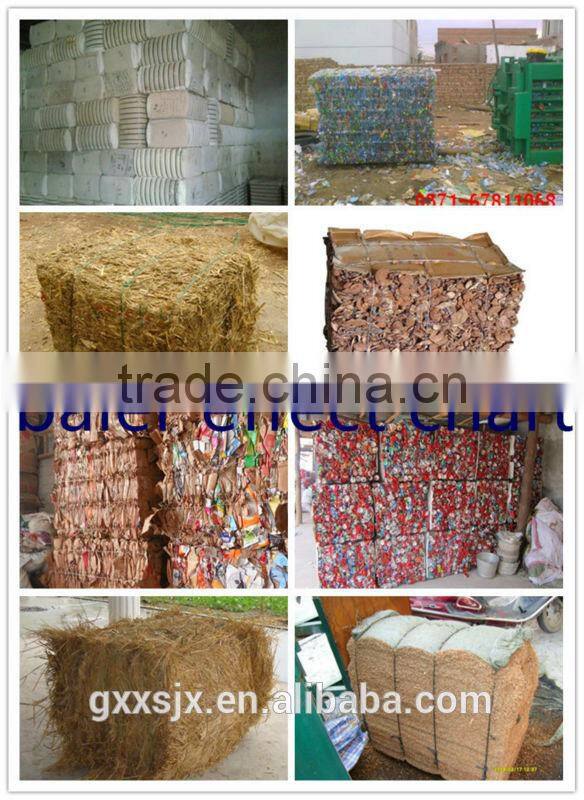

Bale Effect diagram

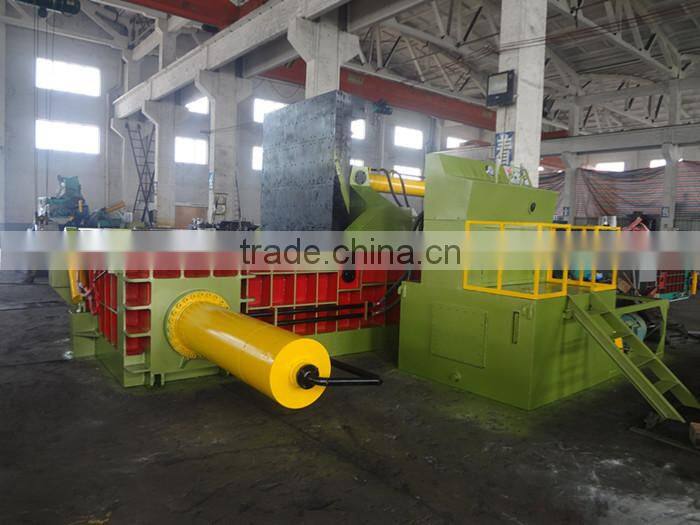

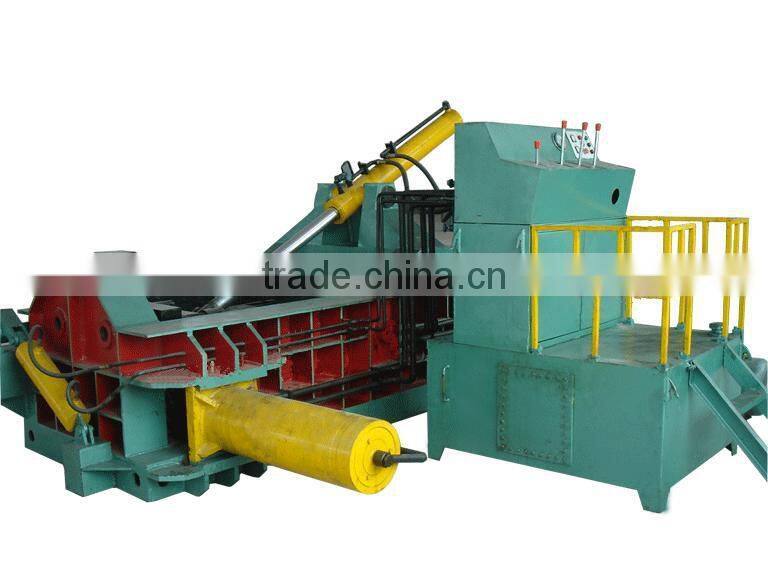

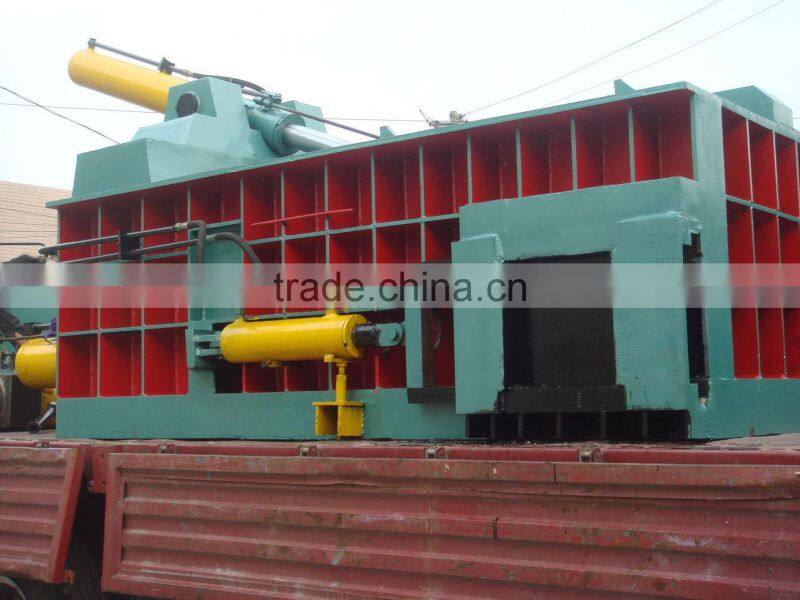

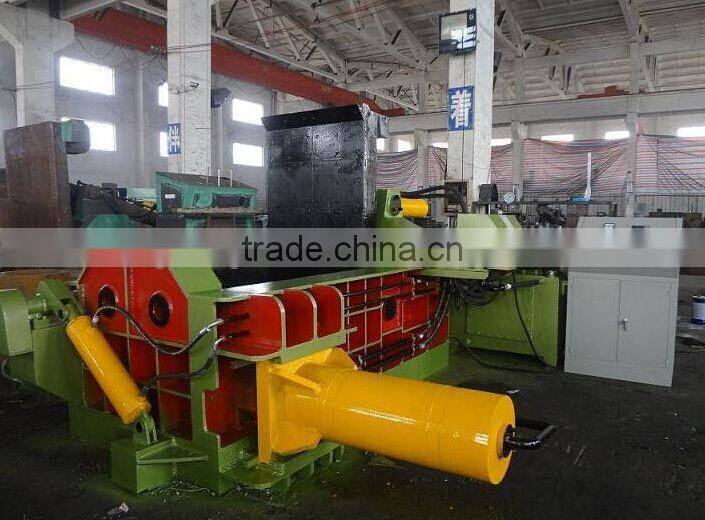

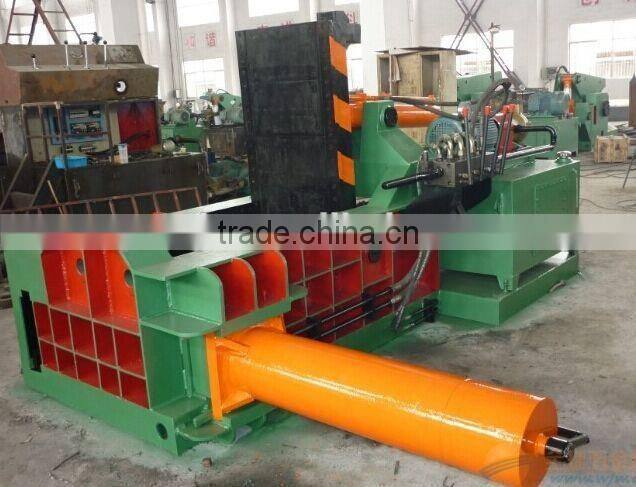

Detailed pictures for your reference

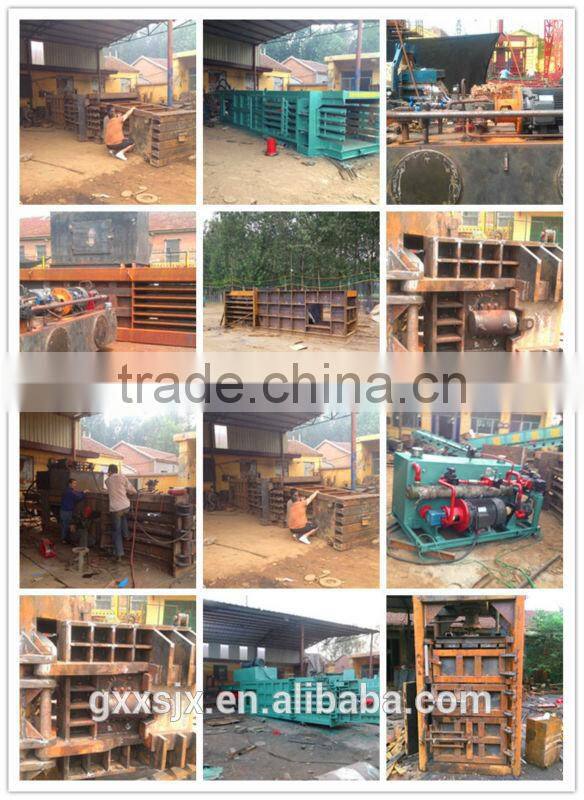

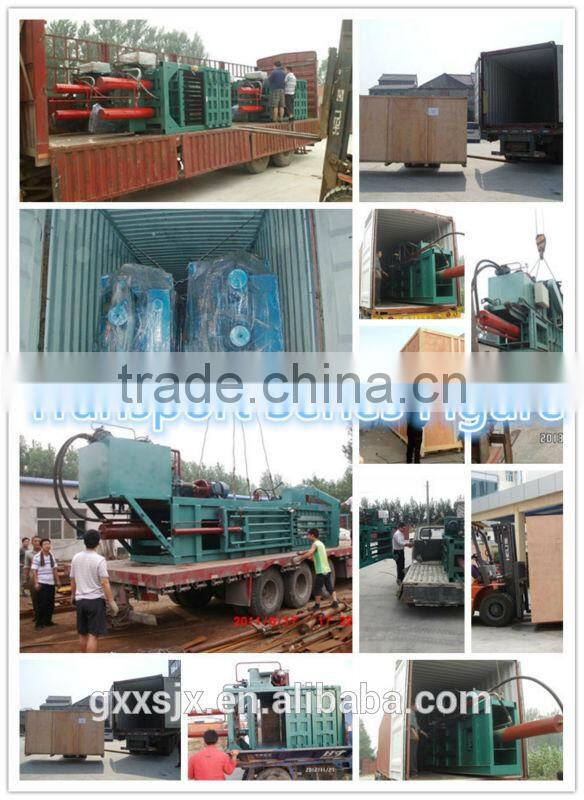

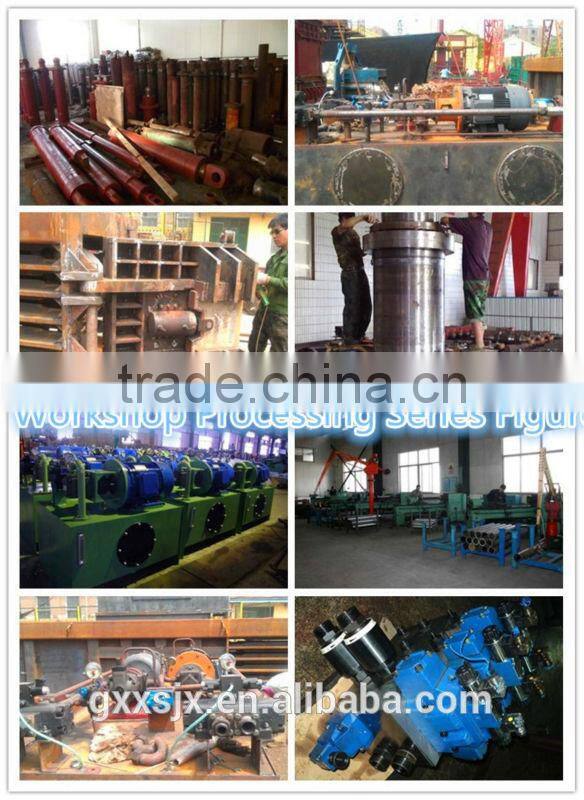

For more pictures for your reference
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
