Help CenterHEIGHT Float Switch (HT-3508P)
Related Products
HEIGHT
Application
MINitype plastic float switch is made up of magnetic reed switch and floater, The floater have the magnetic material ,The floater along with the water level float up and down. liquid level sensor use the avdance import switch elements,It low price,high realiable .
we have many material and specification for ducts can be used to water dispender ,water heater,solar energy,air conditional,humidifier,fuel tank,water tower,ect.Widly used in household appliance,industrial equipments,agricultyre equipments.
Main Techical Parameter
Max Contact Rating : 10W
Max Switching Voltage : 100V DC
Max Switching Current : 0.5A
Max Breakdown Voltage : 220V DC
Max Carry Current : 1.0A
Max Contact Resistance : 100mΩ
Temperature Rating : -10~+60°c/+85°c
Float Ball Material : P.P
Flat Body Material : P.P

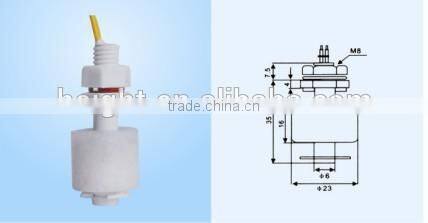

Dimension
1, Material,size and other requirements are customized.
2, Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3, Answer your question detailed
4, Solve the problem with you during using our products
5,More our products you can visit our website:
