US$ 120 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
TOP- electric welding machine
Model Number:
TOP60- electric welding machine
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name TOP- electric welding machine
Model Number TOP60- electric welding machine
Voltage 24V
Current 60
Rated Duty Cycle 60% of co2 machine for hydrogen welding machine
Dimensions 465*280*480mm
Weight 9kg
Usage welding steel plate
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas





Stainless steel welder



Product Description

          details data:



ModelTOP60TOP100TOP200TOP300TOP400
AC Voltage Requirement (V)220/110
Phasesingle
DC Voltage 24V5V 60A5V 60A5V 60A5V 60A
Max Gas Output60L/h100L/h200L/h300L/h400L/h
Max. Working Pressure (kg/cm2)1.3
Max. Water Consumption (L/h)0.060.060.110.170.23
Water Feedmanual
Max. Flame Modifier Consumption (L/h)0.050.050.10.150.17
Flame Modifier Feedmanual
Dimensions - L*W*H (mm)465*280*480435*308*540485*300*540640*245*550730*300*540
Gross Weight (kg)915202532
Ventilation Space Requirement ()200 in each direction





Click here can know more product details





Applications

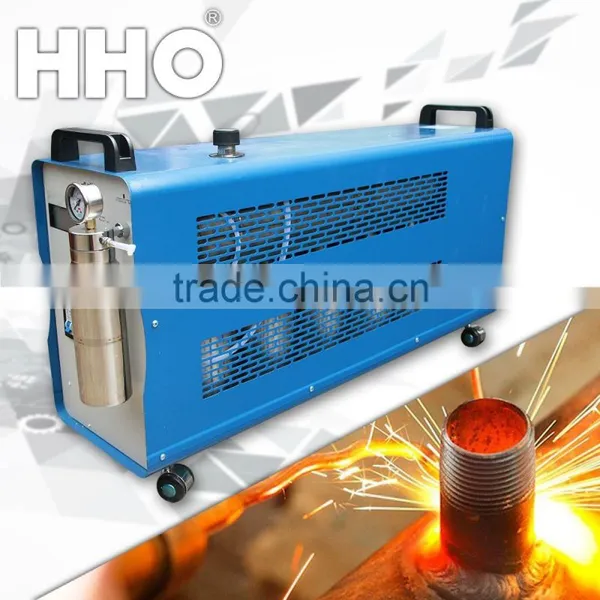

 What is the application of our oxyhydrogen welding machine  ?





1. Heat treatment for metal parts.

2. Weld the hinge of spectacles rim.
3. Seal the injection glass bottle, conforming to GMP industrial standards.
4. Fuse the lead or tin alloy plate for storage battery.
5. Cut and fuse quartz or fine parts etc.
6. Peel off FPC of computer, fuse LED chip and thermocouple.
7. Weld jewelry made of gold, silver, copper, lead, tin casting etc, such as stud, safety pin, chai etc.
8. Polish irregular acrylic surface. After polish, the work piece will be smooth and shiny.


 Stainless steel welderStainless steel welderStainless steel welderStainless steel welderStainless steel welderStainless steel welder







Advantages

What is the Advantages of our oxyhydrogen welding machine?



Cost saving
Oxy hydrogen Generator saves 60% cost compared to acetylene. Saves 40% compared to propane. The fuel is just pure water and a little electricity

Welding precisely
The flame is concentrated, it can achieve welding precisely. Suitable for the precious metal such as jewelry welding and avoid the metal loss during it

Welding quickly
The oxy-hydrogen flame calorific value reaches 34000Kcal/kg,and temperature high up to 2800 degree. It can make the welding spot reaches melting point in 1 second

Clean flame without carbide
Oxy-hydrogen flame combustion doesn't form any carbide, so there is no black spot after welding. And it will not influent the rigidity & flexibility of workpiece. Make jewelry stay beautiful in perfect condition

Safe & Convenient
Oxy hydrogen generator can produce gas automatically without gas cylinder. Just need pure water & electricity as fuel. No worry for cylinder explodes.The machine will turn on or off automatically by detecting the gas pressure.The gas output volume is adjustable. Easy to operate



Environment friendly
Oxy-hydrogen generator just needs pure water & electricity as fuel. And it will just generate steam in the end. Do no harm to environment & jewelry welding operators



Stainless steel welderStainless steel welder



Company Information

Company  Information



Our company is located in Changsha city, Hunan province, China. We are a professional manufacturer of researching and producing oxy-hydrogen generators, carbon clean machines, cutting machines, welding machines and other machines. We have strong production and export experience. Our machines are widely used in the world.



In the technology, we are devoted to improving old products and developing new products, and doing our best to meet market demands.



In the manpower, we have a professional technology development team with 10 technical personnel and more than 50 production staff members as well as a 20-person sales team.



Hntcny is also providing green energy solutions. We are specializing in Oxy-Hydrogen Generators, which change ordinary soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development philosophy is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.



Hntcny Engine Carbon Cleaning Machine consumes water and electricity to create oxy-hydrogen gas which feeds into to the engine for cleaning the accumulated carbon and increasing the combustion efficiency of the existing fuel. There is no pollution, no harmful gases or chemical additives to harm you, you engines or the environment.







Packaging & Shipping









FAQ

 FAQ



1.Q: Are you a factory or a trading company?
    A: We are a factory.



2.Q: Where is your factory located? How can I visit there?
   A: Our factory is located in Changsha City, China. You can fly to Changsha Huanghua airport, then we will go to the airport to pick you up. Warmly welcome customers from home and abroad to visit us.



3.Q: How does your factory do regarding to quality control?
   A: Quality is priority. We always attach great importance to quality controlling, from production started to the very end. Our factory has gained CE, ISO9001 authentication.
