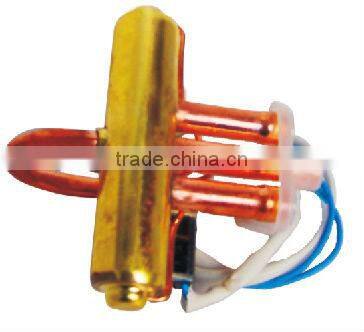

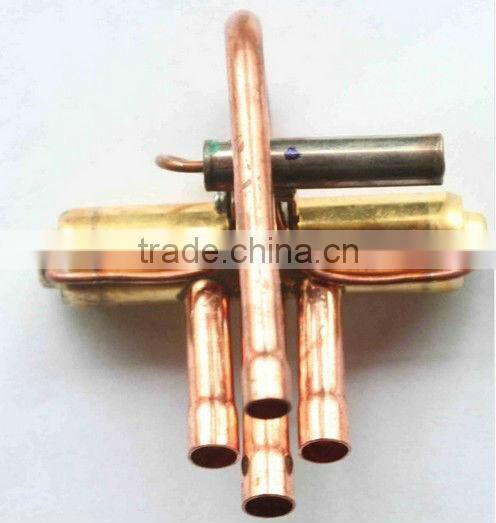

4 Way Reversing Valve for Air Conditioner

Name: 4 Way Reversing Valve for Air Conditioner
Brand: Partsnet
Availability: InStock

FOB Price

US$ 5 - 10 / Piece

300 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Air Conditioner Parts, Air Conditioner Parts	Application	Home
Certification	Other, RoHS	Place of Origin	Zhejiang, China
Brand Name	Partsnet	Model Number	DHF-5

Packaging Details

Standard export carton or simple packing

Product Description

4 way reversing valve for air conditioner

Feature

1.All connections are copper welded

2.Avaiable full-size porting maintains unrestriced gas flow

3.Valve interior is easily opened for inspection

4.Machined steel housing built to exacting tolerances of 0.005MM

Specification

DHF 4-way reversing valve is the key part of the heat pump air conditioner.The flow direction of the refrigerant is changed under the electromagnetic of the pilot valve,so that cooling in summer and heating in winter are realized.

Voltage: AC220V 50/60HZ

Testing pressure: 4.40 MPa

Max working pressure: 3.00 MPa

Fluid temperature: -20°C ~ +120°C

Model	Nominal Capacity	Suitable Media	Suitable Power	Internal Leakage	Max. Operation Pressure Differential		High Pressure Side Connection	Low Pressure Side Connection	Min. Operation Pressure Differential
DHF-5	5KW	R22.R407C.R410A	5-7W	≤1000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	8.10+0.20mm	9.70+0.20mm	0.25MPa
DHF-9	9KW	R22.R407C.R410A	5-7W	≤2000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	9.70+0.20mm	12.90+0.20mm	0.34MPa
DHF-11	11KW	R22.R407C.R410A	5-7W	≤2000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	12.80+0.20mm	16.10+0.20mm	0.34MPa
DHL-20	20KW	R22.R407C.R410A	5-7W	≤4000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	12.8+0.20mm	19.15+0.20mm	0.34MPa
DHL-34	34KW	R22.R407C.R410A	5-7W	≤4000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	19.05+0.20mm	22.20+0.20mm	0.34MPa
DHL-45	45KW	R22.R407C.R410A	5-7W	≤6000ml/min	R22 R407C/2.5MPa	R410A/3.1MPa	22.20+0.20mm	28.60+0.20mm	0.34MPa

Packaging & Delivery

Packaging Detail: Carton/Wooden Case/Pallet

Delivery Detail: 25~35 days after receiving deposit

Payment: T/T , L/C

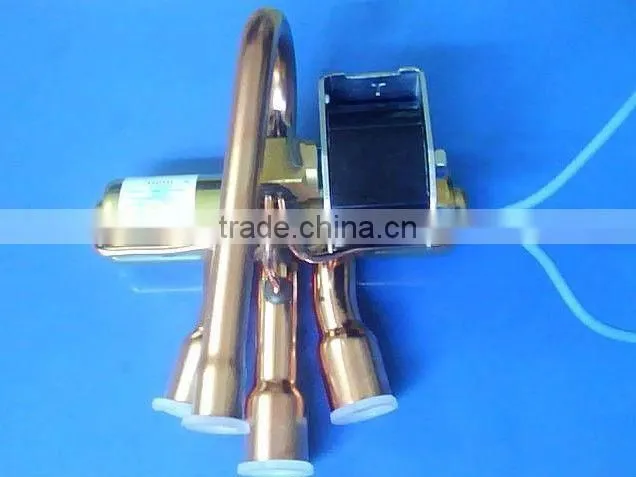

4 way recersing valve for air conditioner
