Specifications
1.Air-conditioning,Refrigeration2.light weight and flexible
3.fire resistance
4.Material:Rubber

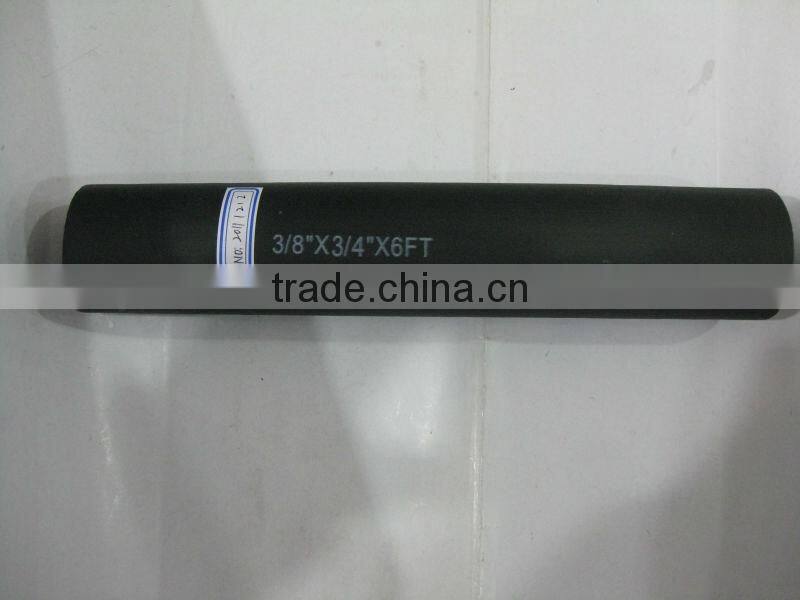

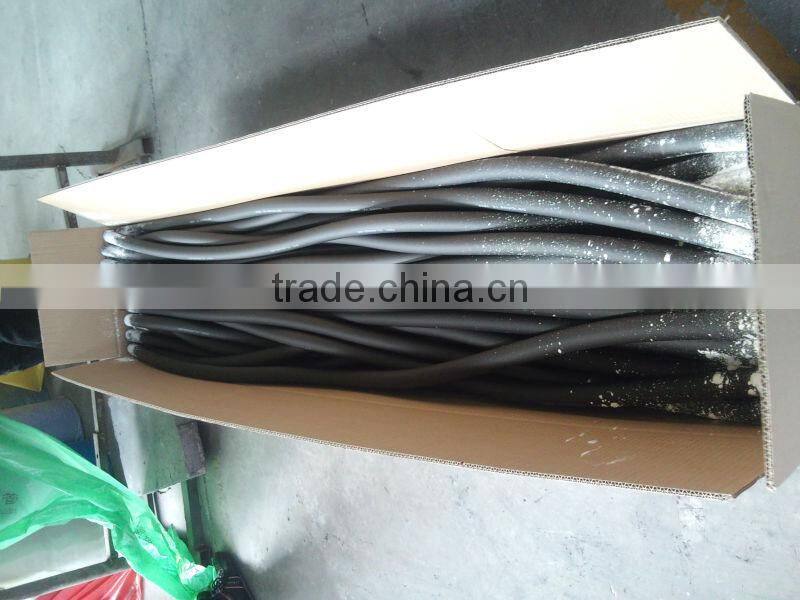

Product Name:Rubber Foam Insulation Pipe
1.Product features:
1).Low density,closed-cell structure ,low thermal conductivity,long-using life,low cost of routine maintenance and repairs;
2).Closed-cell structure and the dense skin make the water vapor is not easy through, and low water absorption;
3).Soft materials,Construction easy to install ,and pleasing in appearance,smooth;
4).Wide temperature range from -50 degrees to 110 degrees,good weather ability;
5).Excellent fire performance.
Item | Unit | Specification | Standard | |
Density |
| Kg/m³ | ≤95 | GB/T6343 |
Flammability
| Oxygen index | % | ≥32 | GB/T2406 |
SDR | —— | ≤75 | GB/T8627 | |
Conductivity factor Average temperature -20°C 0°C 40°C |
| W/(m.k) |
≤0.031 ≤0.034 ≤0.036 |
GB/T10294 |
Watervapor permeability | Coefficient | g/(m.s.pa) | ≤2.8*10-11 | GB/T17146-1997 |
Factor | —— | ≥7.0*10³ | ||
Water absorption ratio in vacuum | % | ≤10 | GB/T17794-2008 | |
Dimension stability 105±3°C,7d | % | ≤10 | GB/T8811 | |
Crack resistance | N/cm | ≥2.5 | GB/T10808 | |
Compression resilience ratio Compression time 72h | % | ≥70 | GB/T6669-2001 | |
Anti-ozone Ozone pressure 202mpa 200h | —— | Not cracking | GB/T7762 | |
Aging resistance 150h | —— | Slightly crumpling, no cracks, | GB/T16259 | |
Temperature | °C | -50°C——110°C | GB/T17794
| |
2.Application:
1).Widely used in central air conditioning,construction,chemical,medical treatment,
2).Light textile,metallurgy,vessel,vehicle,electrical appliance and etc industry and sectors of various hot and cold media pipeline,container,can achieve to reduce the energy saving effect of the hot and cold loss.
