Specifications
good quality and best price
Specifications 1)electric blender,beer machine,heater,refrigerator, condensor
2)3-34w output,IP44,IP42
3)Blowing or sucking,UL CE approval

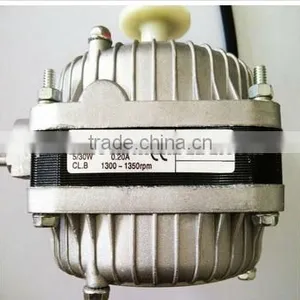

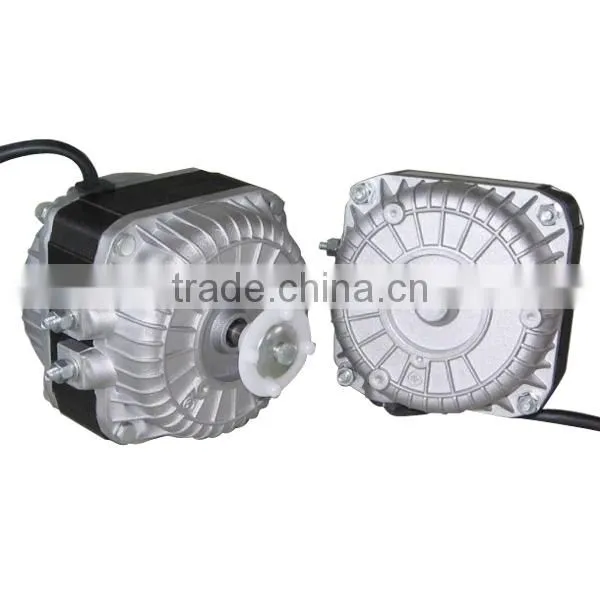

1. Brief Introduction of Shaded Pole Motor 26-18 Series
The shaded pole motors 26/18 series distinguish from other models with two foot mountings of 26mm on one side and 18 mm on the opposite side from the appearance structure. However, they are still popular in unit heater, commercial refrigeration display cases, evaporator, condensing unit, ice machine, etc. We believe the good quality products and good service will meet your request.
Technical Features:
Material: Housing made of die-cast aluminium
Stator pack: coated in black
Foot mounting: Track dimension 26mm on one side, 18 mm on the opposite side
Direction of air flow: "B"or "S" (B-blowing, S-sucking)
Direction of rotation: counter-clockwise, seen on shaft end
Mounting position: Any, preferrably horizontal
Optimize performance: match with a variety of mounting brackets and fan blades according to the different models
Mode of operation: Continuous operation (S1)
Bearings: self-adjusting calotte sleeve bearing(mean service life of 30,000 hours in horizontal installations position)
Motor protection: impedance switched ( combination D-H)
Mounting: guard grille and wall ring are mounted onto the protruding thread ends of theA side.The Q-motor can also be screwed on via the mounting flanges (integrated in the bearing shields).
Axial impeller mounting: Mounted to the motor shaft using a plastic adapter with pulling peg and an M4 screw(combination A-D) OR M5 (combination E-H) screw.
Power specifications: At 50/60Hz, the blade angle of the axial impellers must be reduced 6° each.
2. Our competitive Advantages
A) Cost advantage
We have our own workshop, metal processing workshop and many other advanced machines. Key production parts are manufactured by ourselves.
B) Technological advantage
Our R&D center is provincial R&D Center. There are 4 Professor grade engineers and 6 senior engineers in our company.
C) Substantial experience and good service
We professionally produce motors and fans for more than 33 years. And we have done international trade for more than 10 years. So we can supply high quality products and services.
D) High cost performance
We have cost advantage, technological advantage and substantial experience. So our products have high cost performance. You can take the same cost purchase more better goods, or spend less for the same product.
