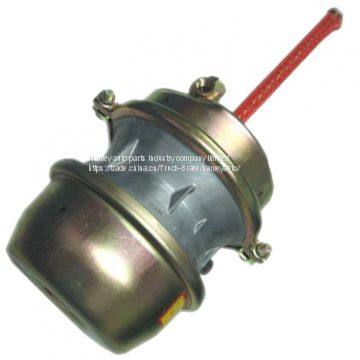

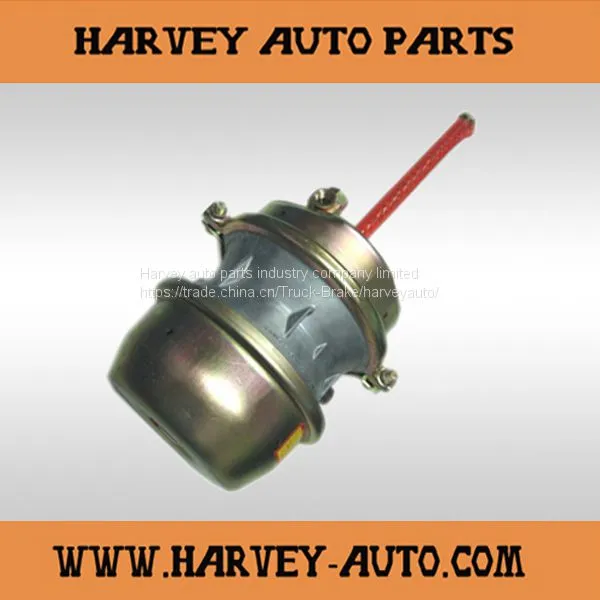

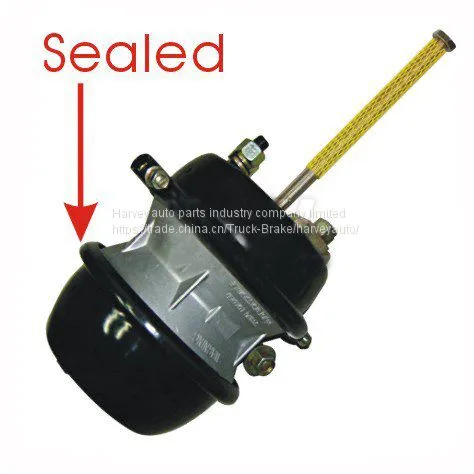

T3030DD Sealed Air Brake Chamber
HV-S17
Maximum operating pressure: 1mPa
Operating temperature range:-40 to 80 degrees Celsius
Operating pressure: 800kpa
| Stroke: | 64/64mm | Bolt Center: | 120.7mm |
| Port thread: | M16*1.5 | 3/8"NPT | 3/8"NPT |
| Bolt Thread: | M16*1.5 | M16*1.5 | 5/8"UNC |
| Push Rod: | M16*1.5 | M16*1.5 | 5/8"UNF |
| Total Push Rod Length: | 285mm |
* Used in the heavy duty trucks,trailers and semi-trailers
* Conform to GB/T9001-2008 idt ISO9001:2008 Standard
* OEM Service and customized design for printing and packing
* Audited by SGS and ZD
* Over 20 years experiences in the Air brake System
We are a manufacturer of Various Air Brake Parts covering various Vehicles such as VOLVO, Mercedes Benz, Scania, R.O.R, DAF , D-C, MCW, MAN, FORD, BPW, FIAT, Foden, ERF, LDV, Leyland, Iveco, Kamaz ...etc
We make the formal commitment that we will offer one year's gurarantee after the shipment, if any quality problems of our products, we promise to replace the defective ones in the next shipment.
