Wheel run out measuring machine

Specifications

This measurement machine is used to measure the radial and axial run-out of wheel and analyze the harmonic wave.

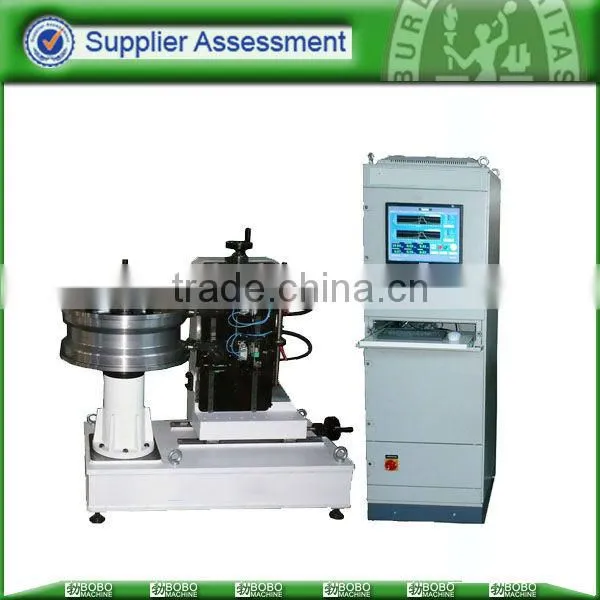

Wheel run out measuring machine



This measurement machine is used to measure the radial and axial run-out of wheel and analyze the harmonic wave. Which is designed based on ISO 16833:2006 Road vehicles — Wheels — Measurement of radial and lateral run-out standard



Main technical data

1. Wheel nominal diameter: 16”~25”
2. Wheel nominal width: 5”~14”
3. Center hole diameter: φ160,φ221,φ28
4. Radial measuring accuracy solution: ≤0.2 mm
5. Machine repeatability accuracy: 0.05mm
6. Load cell capacity: ±10 mm
7. Machine Position method: Floating cone style
8. Checking method: Hard roller (Steel GCr15) in the contacting way.
9. Sensor slide plate moving: done by pneumatic part.
10. Sensor moving: done by pneumatic part
11. Main shaft rotating drive: manual
12. Wheel tightening: manual
13. Power consumption: <1 kw
14. Compressed air: 0.4~0.6MPa
15. PC deals with data saving, statistics, and printing.
16. Display of first and second harmonic wave
17. Main machine weight: about 800kg
18. Main machine dimension: 1350 mm×610 mm×1350 mm
