The punching die is speically designed for your production as per your drawing, can match with the punch press for auto line.The automatic punching line, stamping line, blanking include decoiler, straightener, feeder, punching machine and recoiler,etc, used for continuous work.
Such automatic production line can be use for material blanking, profile forming, deep drawing, etc work with speical designed mould, die, tools.
I Production flow:

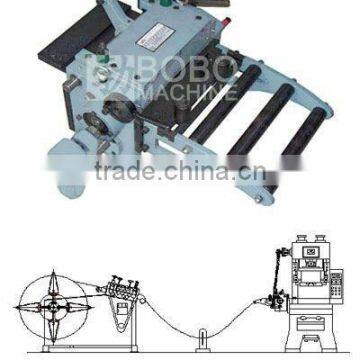

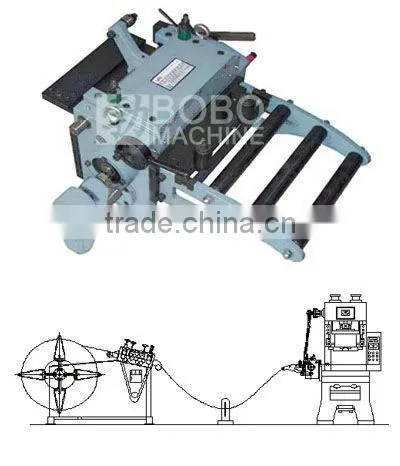

Decoiling and straightening machine → Pneumatic feeding device → punching machine
II Technical data
l Material: Steel plate in coil
l Available external diameter: 1200mm
l Available interior diameter: 508±10mm
l Width of steel strip: 250mm
l Thickness of steel strip: 0.6mm
l Weight of coil: ≤1200 kg
l Work speed: 48pieces/min
l Power: 380V±10%
l Air pressure: ≥0.5Mpa
auto press line used for material blanking work.
We can supply the complete production line inlcude punching die, punching mould, punching tools.
