Bobo Machine Co., Ltd.: Nantong, Jiangsu, China; Main products: Pipe Duct Machine, Baling Machine, Roll Foaming Machine, Roll Forming Machine, PU Foam Machine, Centrifuge Machine, Metal Processing Machine Wheel Equipment, Chain Machine, Thread Rolling Machine, Polishing Machine

Home > Products > HVAC duct machine > Air Conditioning Ventilation Duct Machine

Air Conditioning Ventilation Duct Machine

FOB Price

US$ 15,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Pipe Production Line
Pipe Material	Carbon Steel	Application	Other, Air conditioning duct
Production Capacity	35m/min	Place of Origin	Jiangsu, China
Brand Name	BOBO	Model Number	Round, Rectangular
Voltage	380, Customize	Power(W)	5.5-11.5KW
Dimension(LWH)	5500X1500X1250mm	Weight	3800kg
Certification	CE, ISO	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Air conditioning ventilation duct machine

Rectangluar pipe production

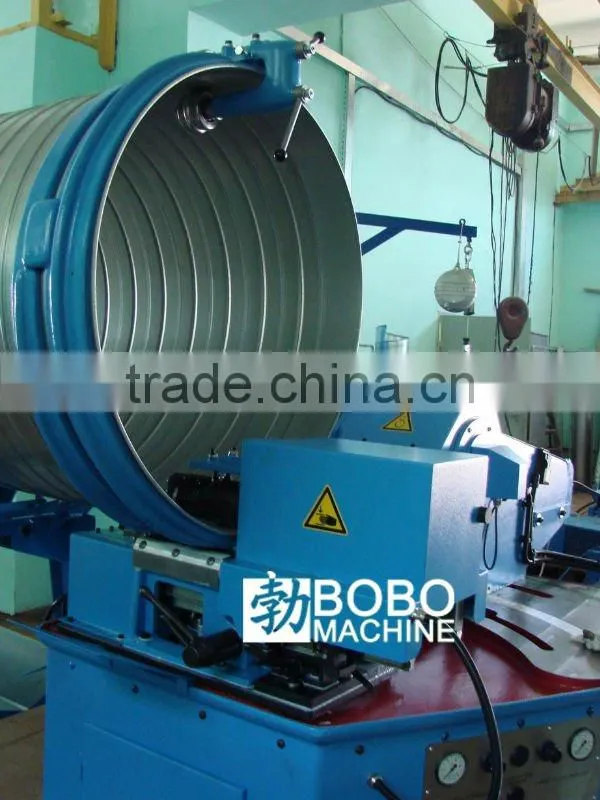

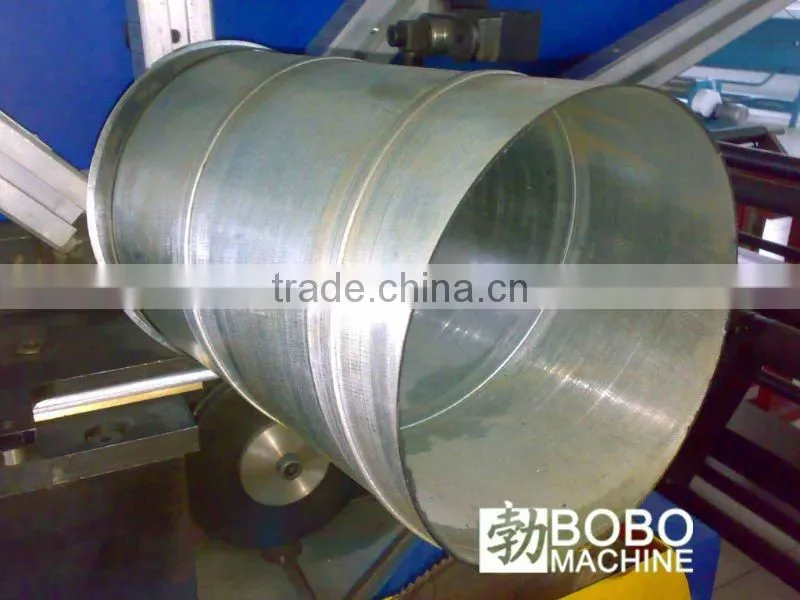

For the spiral round ventilation air duct, the complete line include sprial tubeformer for straight duct and the gorelocker for elbow making.

For spiral tuebformer, we have BTF-I and BTF-II with different configuration for your option.

main difference

Model	BTF-I	BTF-II
Forming mould	Spring steel mould Feature: lower cost Adjustable a little Quick change	Duct type mould Feature: Fixed diameter Accurate size Hard stiffness
Cutting method	Saw cutting Feature: Lower cost With noise and dust With burr on section	Slitter cutting Feature: Silent work Clean work Smooth section
Diameter range (in practice)	80-1000mm	100-1600mm
Thickness range	0.4-1.0mm	0.4-1.2mm

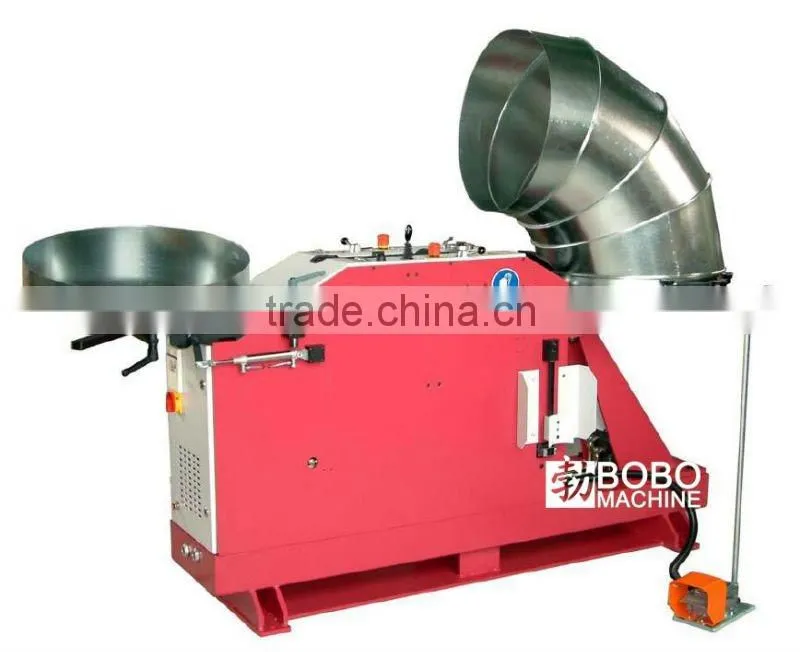

For elbow making

The complete line include follow details:

1- cnc plasma cutter

2- roll bending machine

3- seam welding machine

4- gorelocker

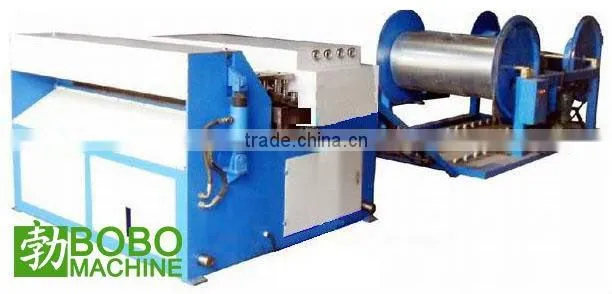

For rectaglua air duct fabrication machine

There are autoduct line ADL-II, ADL-III, ADL-V with different configuration and performance for your option

Other suggested machine such as:

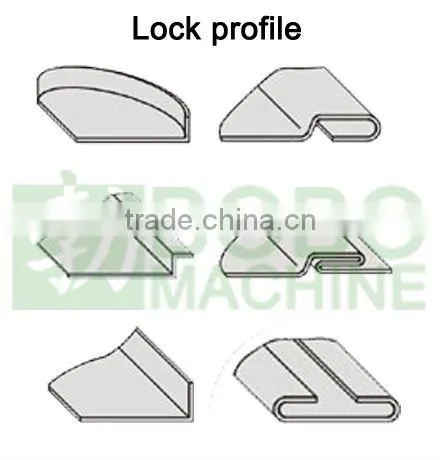

1- lock former machine

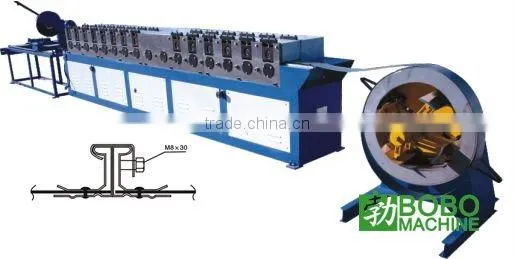

2- TDC, TDF flange making machine

3- hand folder

4- beading machine

5- duct corner press, etc
