Home > Products > Flexible conduit machine > Flexible metal conduit machine

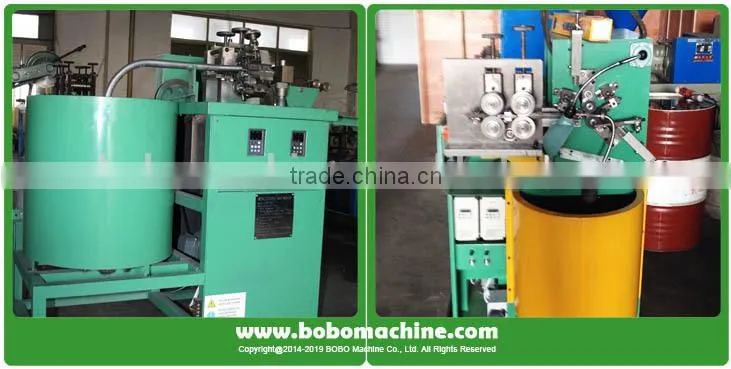

Flexible metal conduit machine
USD $5,000 - $10,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- The Flexible metal conduit machine will be shipped from Shanghai China.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, Conduit forming machine | |
| Pipe Material | Carbon Steel | Application | Other, Cable casing, shower hose | |
| Production Capacity | 2-3m/min | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | FH series | |
| Voltage | Customized | Power(W) | 2.2-4.0KW | |
| Dimension(L*W*H) | 1200X1200X900 | Weight | 600-1200KG | |
| Certification | ISO, CE | Warranty | one year since the date B/L. | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Flexible metal conduit machine1- Single lock or double lock
2- Diameter up to 200mm
3- Thickness up to 1.2mm
Flexible metal conduit machine
Product Description
The Flexible metal conduit machine is Continuously producing double or single swage steel flexible hose by using stainless steel or copper, iron, aluminum, etc. The finished flexible hose is widely used for sanitary hose, cable casing, etc.
Feature of Flexible metal conduit machine
- Single or double for different flexibility
- Adjustable forming speed by invters
- Changeable moulds for different diameter
- High output capacity with lower noise
- Stable performance and easy maintenance.
Main technical data of Flexible metal conduit machine
| 1 | Diameter Range | 3/8" to 8" |
| 2 | Strip width | 8-25mm |
| 3 | Strip thickness | 0.15-0.35mm |
| 4 | Forming speed | about 2-3m/min |
| 5 | Motor power | 2.2-3.5 KW x 2 |
| 6 | Dimension | 950 x 850 x 1400 (base on machine size) |
| 7 | Weight | 600-1200KG |
