Home > Products > Flexible conduit machine > control cable outer casing wire rolling machine
control cable outer casing wire rolling machine
USD $9,000 - $25,000
/ Set
1 Set(Min.Order)
- 6 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, wire rolling machine | |
| Pipe Material | Carbon Steel | Application | Other, cable casing, control cable outer casing wire rolling | |
| Production Capacity | 1.2m/s above | Place of Origin | Jiangsu, China | |
| Brand Name | BOBO | Model Number | WF-200 | |
| Voltage | 380V | Power(W) | 3kw | |
| Dimension(L*W*H) | 2200X1000X2000mm | Weight | 1400kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
control cable outer casing wire rolling machine1-for outer casing hose as raw material
2-with straightening device

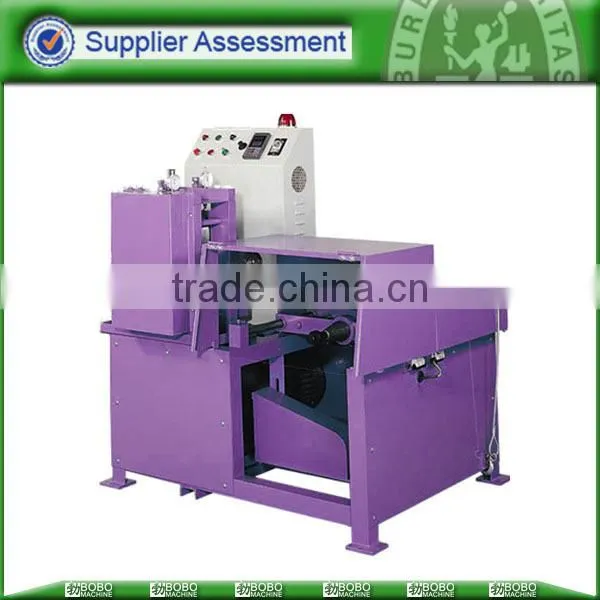

control cable outer casing wire rolling machine
The control cable outer casing wire rolling machine is used to flat steel wire into flat shape, which is suitable for outer casing hose purpose as raw material.
Features of control cable outer casing wire rolling machine
- Pressing roller is made from Cr12Mov, with heat treatment HRC≥59°
- Equipped with inverter from Mitsubishi, Japan for main motor speed adjustment
- Equipped with auto alarm and emergency stop function for wire feeding control
- Equipped with straightening device for wire feeding
- Equipped with water cooling system (Optional device)
Main technical data of control cable outer casing wire rolling machine
1 | Max. wire diameter | 1.7mm |
2 | Wire output speed | 1.2m/s above |
3 | Pressing roller diameter | 200mm |
4 | Wire flattening tolerance | ≤±0.01mm |
5 | Bobbin capacity | 110kg |
6 | Motor power | 3.0kw, 0-50Hz, 3Phase |
