Spiral corrugated culvert tube forming machine
- 1 Set / Sets per Month
- Spiral corrugated culvert tube forming machine will be delivered from shanghai.
- T/T L/C D/P D/A Credit Card PayPal
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Other, pipe making machine | Pipe Material: | Stainless Steel |
Application: | Other, Spiral corrugated culvert tube forming machine, Drain Pipe | Production Capacity: | 0-20m/min adjustable by inverter | Place of Origin: | Jiangsu, China |
Brand Name: | BOBO | Model Number: | BTF-3600 | Voltage: | 220V or CUSTOMIZED |
Power(W): | 33kW | Dimension(L*W*H): | 3900*1600*1420mm | Weight: | 10Ton |
Certification: | CE,ISO | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

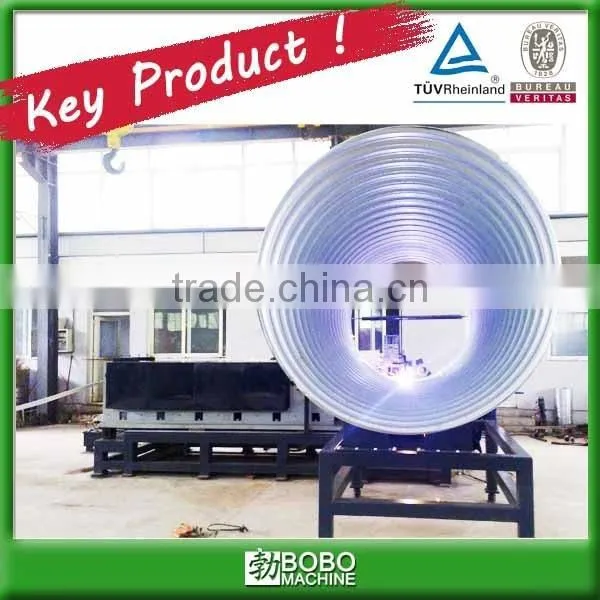

Spiral corrugated culvert tube forming machine
The Spiral corrugated culvert tube forming machine is widely used in highway,railway,culvert channels,bridges,temporary pavement,drainage channels and a variety of mine roadway retaining wall supporting projects.
Feature of Spiral corrugated culvert tube forming machine
- Equipped with flexible moulds for variable diameter by adjustment.
- PLC control system with cutting length, quantity setting
- Automatic forming, cutting and unloading process.
Main technical data of the Spiral corrugated culvert tube forming machine
No. | Parameter | Data |
1 | Model | BPT-3600 |
2 | Diameter range | 1000-2500mm |
3 | Strip width | 600mm |
4 | Strip thickness | 2.0-3.0mm |
5 | Spiral pitch | 550mm |
6 | Seam lock | double lock |
7 | Feeding speed | 1-20m/min |
8 | Motor power | about 33 KW |
1.What's the application of the Spiral corrugated culvert tube forming machine ?

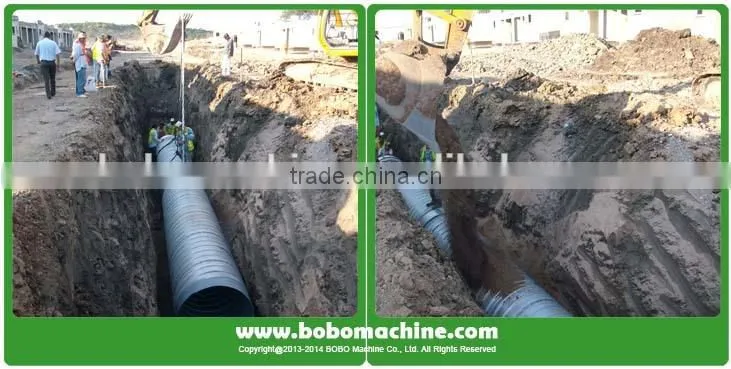

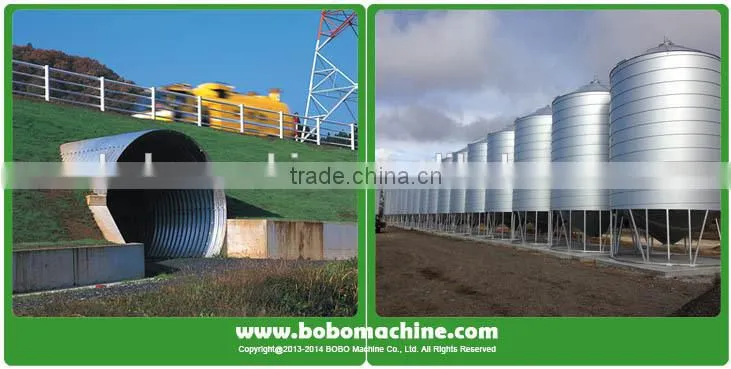

Re: the Spiral corrugated culvert tube forming machine is used to produce corrugated metal pipe, whichis widely used for storm water culvert, drainage water culvert, bridge column, hurricane shelter, foundation pile, etc.
2.How about the culvert pipe size for diameter and wall thickness?
Re: the culvert pipe diameter can be customized from 500-6000mm with wall thickness 2.0-4.0 mm for different kinds of application.
3.What’s the raw material (strip) width and the corrugation design?
We can customized the machine as per your requirements, the suitable strip width can be from 150mm to 1000mm, and the corrugation can designed as per your drawing.
4.How many dies going with machine?
Re: We design the flexible moulds for different kinds of diameter, which is made from the guiding roller and wire rope. Also the fixed size moulds can be customized.
5.How about the after-sales service, including installation, commissioning and training?
Re: We will supply all the operation manual and video clip going with machine, and we supply free training here in our plant. Also we can send technicians to your site for installation and training, but the relevant should be borne by your company.
6. How about the guarantee after order?
Re: The guarantee period is one year since the date B/L. and we will supply free help include spare parts during the guarantee period; just the freight charge should be borne by you.
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
- Professional and patient consulting service to help you find the suitable solution.
- Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
- Powerful control of the machine production schedule and quality, and keep you posted about details in time.
- Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package for your confirmation before shipment.
- Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
- For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
- For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that
BOBO MACHINE CO., LTD is the professional supplier for metal processing machinery in China. We supply the duct machine, pu foam machine, baling machine, leather machine, wheel production line and different kinds of metal processing machinery.
With many years successful industry experience, we have established long term cooperation with lots of customer from all over the world. Also we have sales network in Britain, Russia, USA, Mexico and Brazil to supply the machine and service in local market directly.Also we can work as your professional consulting advisor in China to sourcing the right machine and equipment as per your requirements, to offer you the complete solution and necessary after sale service.
“Professional and creditable, customer first”, with these work faith, we successfully win the expanded market and favorable feedback from our customers, and we always look forward to be your reliable supplier and advisor in China, to have a long term cooperation for mutual benefit.
