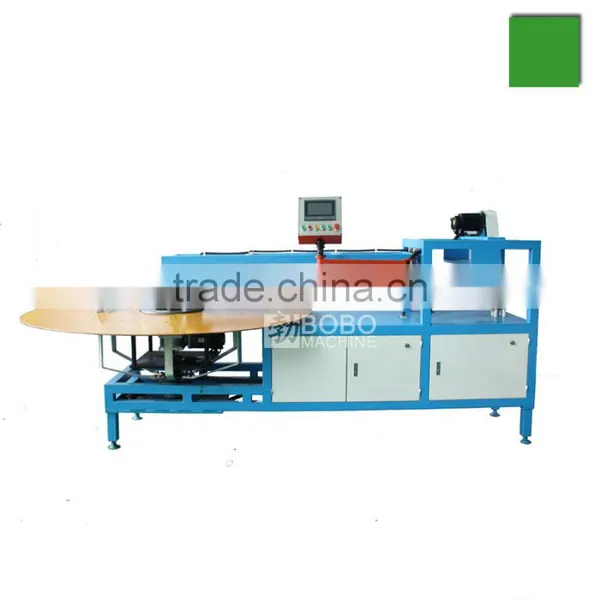

PLC Control Evaporator Aluminum Serpentine Rotative Table Tube Bender Machine

FOB Price

US$ 7,500 - 9,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Cangzheng	Model Number	CZ01
Machine Type	Coiling Bending Machine	Raw Material	Pipe
Material / Metal Processed	Brass / Copper	Power	Other, PLC
Automation	Automatic	Extra Services	Cut To Length
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Trade Capacity

Product Description

Product Application

The Evaporator tube bending machine machine is used for copper, aluminum, Bundy tube, refrigerator freezer wire-tube evaporator, condenser, fin evaporator production and processing. After years of research and development and practice, strengthened strength of winding tube, while improving the convenience of the winding tube mold replacement. More critical, from the traditional one-processing 4-5 root canal to one-processing 8-10 root canal, increasing production efficiency, saving labor costs. (The multi-station freezer evaporator full-hard copper tube rotary CNC bending machine has applied for national invention patent.)

Main Features

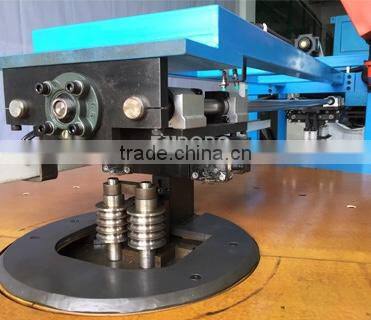

◆Three-part clamping die to minimize tube distortion, get smooth cutting end surface.
◆High accuracy concentricity ensures to get good welding quality in following process.
◆Chipless cutting with 360° rotary cutting and stretching with two points clamping.
◆ Straightening wheel Nylon and “U” shape rubber belt to avoid scratch on tube surface

	Parameter	Data
1	Tube Material	Copper / Aluminum / Bundy tube
2	Tube Diameter	4-20mm
3	Cutting Length	>50mm
4	Work Speed	0~60m/min, adjustable by Inverter
5	Cutting Tolerance	0.5mm/1m

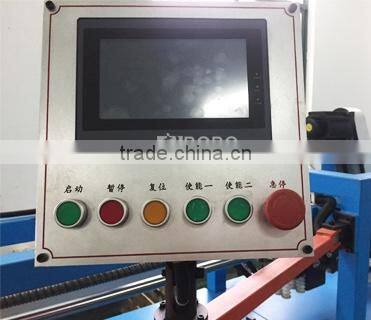

6	Control System	PLC control / HMI
7	Motor Power	1.12KW
8	Electric System	380V, 50Hz, 3Phae (Customized)
9	Dimension	2300 x 650 x 1300 mm
10	Weight	460 KG

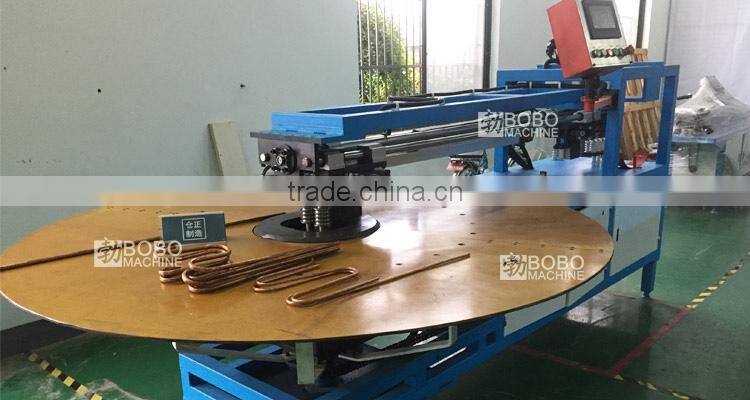

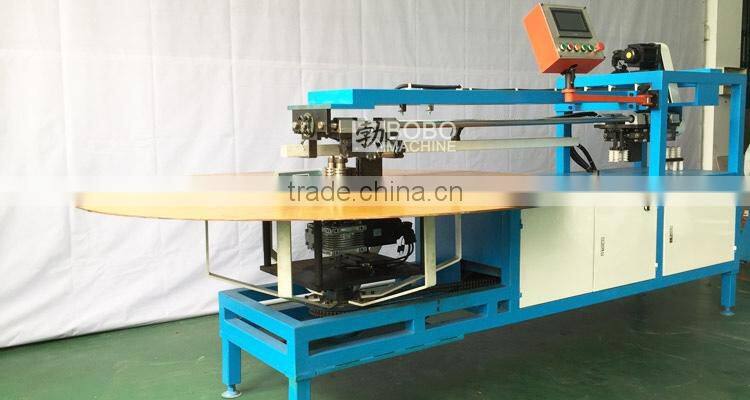

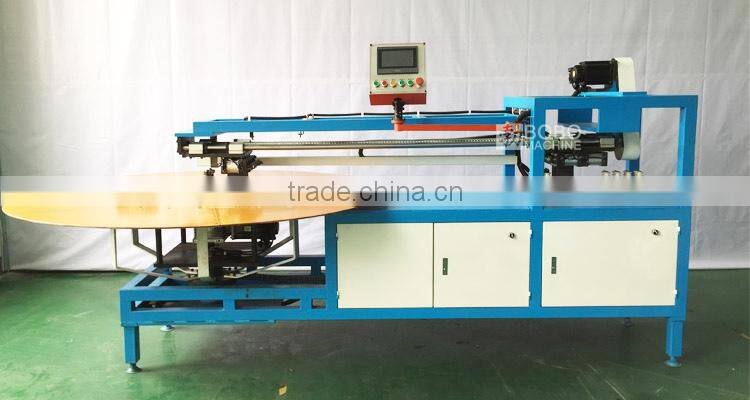

Detailed Images

Packing & Delivery

Packaging
Size	2300 x 650 x 1300 mm
Weight	460kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
