Hydraulic textile press
- 10 Set / Sets per Month
- Hydraulic textile press will be shipped from Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Textiles, Other, Textiles, Textile, wool baler | Packaging Type: | Other, Compressed bale |
Packaging Material: | Other, Rope, wire, etc | Automatic Grade: | Semi-Automatic | Driven Type: | Hydraulic |
Voltage: | 380V or can be customized | Power: | 4kw | Place of Origin: | Jiangsu, China |
Brand Name: | BOBO | Model Number: | PA20-8060 | Weight: | 950kg |
Dimension(L*W*H): | 1000*750*2750mm | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

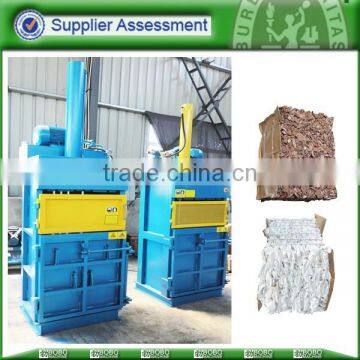

Hydraulic textile press
This hydraulic textile press is used to packaging wool, cardboard, waste paper, cotton, etc. It is designed as vertical structure, hydraulic Transmission, electrical control and manual biding. Also, we can produce the machine according to the requiremnet of customers.
Features of hydraulic textile press:
- This machine is driven single-cylinder and two-pole structure
- This machine adopts hydraulic transmission, with an independent power sector and electrical systems
- Travel range of the machine working pressure can be adjusted to suppress the size of objects
- Stand-alone packing a bag mouth and automatic device, feeding the mouth-locking device, safe and reliable
- Can be customized according to user requirements
Main technical data of hydraulic textile press:
Force | 20ton |
Bale size | 800×600×400-900mm |
Driven way | hydraulic |
Structure | vertical |
Bale weight | 80-100 KG |
Motor Power | 4 KW |
Recycling time | about 30seconds |
Capacity | 4-6 bales/hour |
Bale method | manual |
Bale out method | automatic turn over |
Operation | handle |
Machine body | 1000*750*2750mm |
Body weight | 950KG |
Machine color | customized |
Control mothed | hand-operated valve |
Other models maybe you are interested
Model | Force | Bale size | Bale weight | Efficiency | Power (kw) | Machine weight | Dimension(mm) |
PA10-6040 PB10-6040 | 10 Ton | 600*400 mm | 30-50 KG | 4-6 bale/hour | 2.2 | 800 KG | 900*650*2100 |
PA20-8060 PB20-8060 | 20 Ton | 800*600 mm | 80-100 KG | 4-6 bale/hour | 4 | 950 KG | 1000*750*2750 |
PA30-8060 PB30-8060 | 30 Ton | 800*600 mm | 100-130 KG | 4-6 bale/hour | 5.5 | 1000 KG | 1000*750*2750 |
PA30-M1070 PB30-M1070 | 30 Ton | 1100*700 mm | 130-150KG | 4-6 bale/hour | 5.5 | 1200 KG | 1350*850*3200 |
PA40-M1070 PB40-M1070 | 40 Ton | 1100*700 mm | 150-200KG | 4-6 bale/hour | 7.5 | 1800 KG | 1350*850*3200 |
PA40-M2080 PB40-M2080 | 40 Ton | 1200*800 mm | 200-240KG | 4-6 bale/hour | 7.5 | 2050 KG | 1600*1050*3300 |
PA50-M2080 PB50-M2080 | 50 Ton | 1200*800 mm | 250-320KG | 4-6 bale/hour | 7.5 or 11 | 2600 KG | 1600*1050*3300 |
PA60-M5075 PB60-M5075 | 60 Ton | 1500*750 mm | 380-420KG | 4-6 bale/hour | 11 or 15 | 2900 KG | 1850*1150*3300 |
PA80-M5075 PB80-M5075 | 80 Ton | 1500*750 mm | 450-480KG | 4-6 bale/hour | 15 | 3300 KG | 1850*1150*3300 |
PA100-M5075 PB100-M5075 | 100 Ton | 1500*750 mm | 500-550KG | 4-6 bale/hour | 15 | 3700KG | 1850*1150*3300 |
ACCESSORIES FOR YOUR BALER
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long term cooperated forwarders who can handle the shipment smoothly.
Also we would like to have seamless cooperation with your forwarder at your convenience.
1.Professional and patient consulting service to help you find the suitable solution.
2.Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3. Powerful control of the machine production schedule and quality, and keep you posted about details in time.
4.Free training and accommodation in our plant during machine inspection. Or photos and video of the machine and package
for your confirmation before shipment.
5.Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
6.For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
7.For the spare parts, we will supply the parts for free during one year guarantee period, also the parts supplying at original cost after that.
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the pressing material, bale size and weight, industrial voltage, planned output to us.
3. Q: When we received the machine, how to install it?
A: The machine has been installed already before shipment, when you recieved, just need to connect the electric and fill in the hydraulic oil.
4. Q: How to maintenance baling machine?
A: Don't exposed to the sun and rain, replace the hydraulic oil at fixed period.
5. Q: What is the delivery time?
A: Normally the delivery time of the machine is 20 days after receive down payment.
6. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
