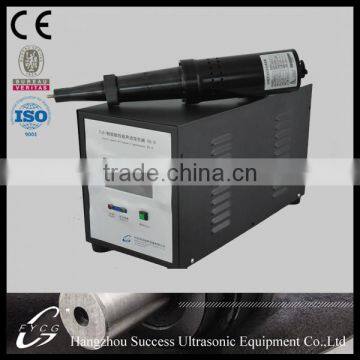

Ultrasonic Impact System

Products Major technical performance parameter

Generator size: 380×220×200mm
Generator weight: 8kgs
Power supply: 220V,50HZ, 5A
Working frequency: 20kHz
Max power: 500W; 10%--100% adjustable
Main size: length 450mm
Weight: 4 KGS
Impacted object shape: Impact needle or Impact stick

Characteristic
High power, high impact effect
High reliability, long using life
Light weight, portable, easy to operate
Excellent designation, wide use scope
Distinctly save energy, reduce charge.

Efficacy
1 .Cause residual stress of pulling in the metal welding line surface layer changed into compressive stress. Significantly increase the fatigue life of metal structure
2. Change the grain layer on metal surface into plastic deformation layer to improve strength and hardness of metal surface layer significantly.
3. Improve the weld toe geometric, reduce the stress focus.
4. Change weld toe stress field, reduce welding deformation obviously, and improve size stability of work piece.
ultrasonic impact treatment device application areas: the industries have strict requirement on welding stability and strength. Such as bridge, electric power, shipbuilding, pressure vessel, steel structure and other industry’s metal welding.
