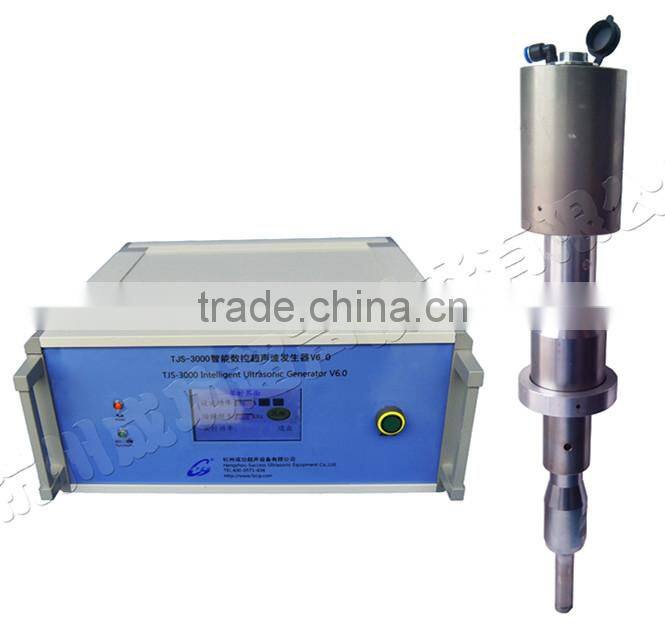

20K LAB use ultrasonic extraction machine

Specifications

Simple, low-cost design
Low operating costs
High efficiency
Low maintenance
Faster emulsification

High Power Ultrasonic Sonochemistry 20 Khz For Solid-liquid , Liquid-liquid Dispersion



Quick Detail:







Simple, low-cost design
Low operating costs
High efficiency
Low maintenance
Faster emulsification











Description:

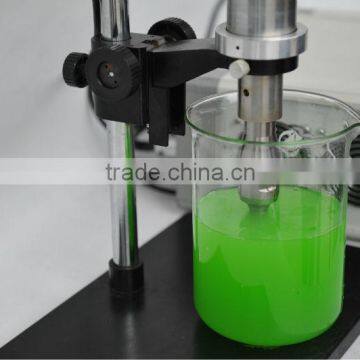

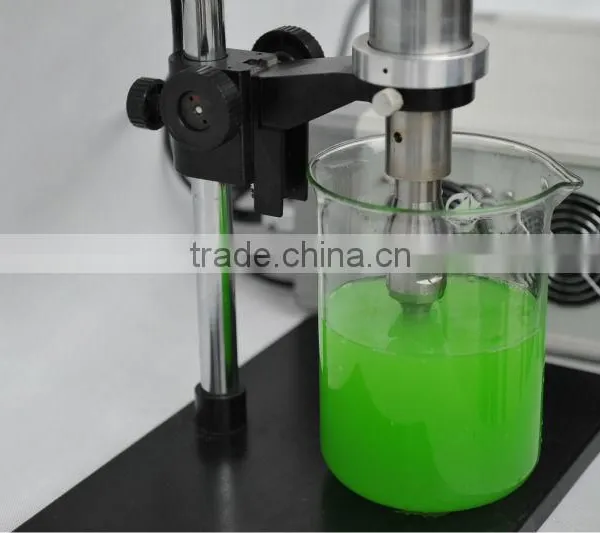

Ultrasonic dispersion refers to the liquid medium, the ultrasonic "cavitation" in the liquid, the liquid particles dispersion and agglomeration process.



Ultrasonic technique as a physical means and tools, can produce various extreme conditions in the liquid, a phenomenon known as sonochemistry, ultrasonic equipment related is called ultrasonic chemical equipment (referred to as "the sound of chemical equipment"). Ultrasonic dispersing device is an application of acoustic chemical equipment, can be used for water treatment, solid dispersion of particles in a liquid system, disaggregation, promoting effect of solid-liquid reaction etc.



Applications:







All kinds of paint, dye and homogeneous dispersion; various industrial additives and food field and mix. Can be applied to various solid-liquid, liquid-liquid dispersion field.











Specifications:







Model	YP-S53	YP-S55	YP-S57	YP-S59	YP-S61
Frequency	20±1 KHz	20±1 KHz	20±1 KHz	20±1 KHz	20±1 KHz
Power	500 W	1000 W	1500 W	2000 W	3000 W
Voltage	220±10% V	220±10% V	220±10% V	220±10% V	220±10% V
Temperature	300	300	300	300	300
Pressure	35 MPa	35 MPa	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>20 W/cm²	>30 W/cm²	>40 W/cm²	>60 W/cm²
Max Capacity	> 5 L/Min	> 10 L/Min	> 15 L/Min	> 20 L/Min	> 30 L/Min
Material Of Tip Head	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy



PS:If you need more power, we can install two or more device.











Competitive Advantage:







 A single set of high power, maximum power can reach 3000W



 Work stability: continuous work around the clock



 The titanium alloy as the transducer and the tool head material, improve the vibration transmission efficiency, the service life of the equipment is greatly improved



 High temperature resistant: radiation head part, highest can withstand 600 degrees.



 High pressure: the maximum pressure 35Mpa



 A plurality of the tool head design: the effective increase of ultrasonic radiation area, the radiation effect is more uniform



 Focus on design, high energy density



 Upgrade equipment is simple, no need to change the customer production equipment and the existing process



 Simple installation, the standard flange butt joint installation



 Yield and efficiency can be improved obviously, reduce the cost of



 Sets of equipments used in combination
