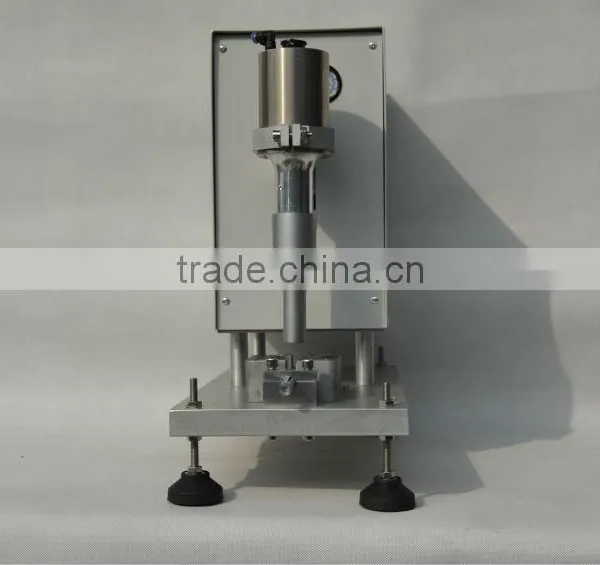

Industrial Ultrasonic MI Cable End Stripping Machine

Specifications

The New YPB65B-GB uses powerful pulses of Ultrasonic energy to strip the sheath from mineral insulated cable.

The ultrasonic energy transfers to the insulation on contact and de-compacts and liquefies the powder, which escapes from the end of the cable.
The result is that all the powder in the stripped section is cleanly removed leaving the conductors completely untouched.

The whole action is completed in seconds (in the case of small cables in a fraction of a second).

All cable sizes can be accommodated from 2mm (0.04”) to 30.0mm.

Product features:

• Longitudinal Design very simple to set-up and operate
• Ability to work every kind of MI cable from Ø 2mm to Ø 30 mm
• Comfortable work position designed to assure maximum efficiency
• Equipment in conformity with ISO safety rules
• Great reliability with large use of stainless steel and titanium
• Advanced electronic Rack with high quality components
• Very fast stripping process suitable for every number of pieces
• Continuous use with automatic ultrasounds standby
• Safety foot-switch or hand-switch operated

Application Areas and Industry:

Fireproof cable and mineral insulated cable manufacturers

Fireproof cable and mineral insulated cable construction company and processing factories, such as high temperature and Thermal Meter supplier etc.
