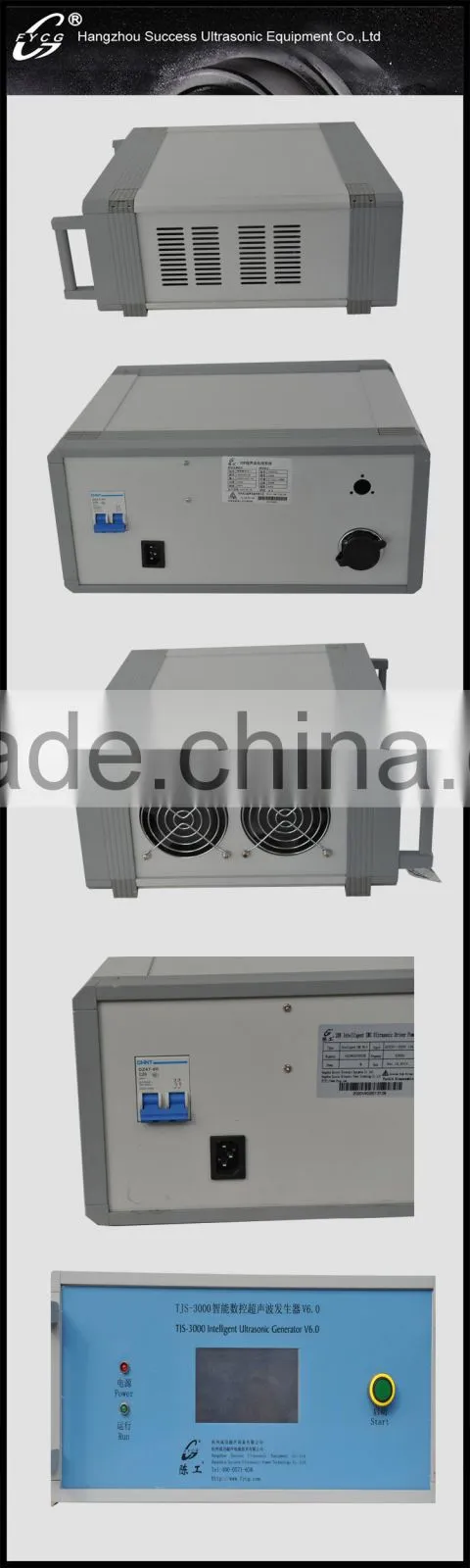

V6.0 Ultrasonic Digital Generator
Characteristics
Researched and developped by Hangzhou Success Ultrasonic Equipment Co.,LTD, the ultrasonic sound chemical processing system has the following characteristics :
1. Owning the 2 types of products: lab-class and industry-class, different model( power: 50W---3000W ),satisfying the demand of different customers. The energy converting efficiency is high,would reach more than 80%.
2. The amplitude of the ultrasonic is steady, working continiously for long time, adapt the design of nine-section working probe(industry), radiating area is increased 2.5 times more than triditional working probe.
3. Adapt the ultrasonic digital generator, controlled by the numbers,strong ability against the disturbance.
4. The frequency, power could be in real time monitoring.the power is adjusted among 0-100%,owning the self-atomatic alarm function,easily to do operation.
5. The ultrasonic sound chemical system is suitable for the working environment of high temperature and high viscosity(below 300°C, less than10atm ).
6. Supply the solution for customer’s measurement,according to the requirements of the customer.
Parameter
| Model | H15X6010 | H15X6020 | H20X6010 | H20X6020 | H20X6030 | H28X6010 | H30X6010 |
| Frequency | 15 Khz | 15 Khz | 20 Khz | 20 Khz | 20 Khz | 28 Khz | 30 Khz |
| Power | 1000 W | 2000 W | 1000 W | 2000 W | 3000 W | 1000 W | 1000 W |
| Size | 385*142*585 mm | ||||||
| Voltage | 220 V 50Hz | ||||||
| Temperature | ≤ 300°C | ||||||
| Moisture | ≤ 85%RH | ||||||
