Ultrasonic Atomizing Nozzles
US$ 990 - 3,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Ultrasonic Humidifier
Installation:
Tabletop / Portable
Certification:
CE, Other, CE, ISO 9001:2008
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
30KHZ Ultrasonic Nebulizer for Industry ApplicationUS$ 1,500 - 2,800MOQ: 1 Set -
50KHZ Ultrasonic Nebulizer for Electronic CoatingUS$ 1,500 - 2,800MOQ: 1 Set
-
50KHZ Ultrasonic Nebulizer for Medical CoatingUS$ 1,500 - 2,800MOQ: 1 Set
-
20KHZ Ultrasonic Nebulizer Pulverizing MachineryUS$ 1,500 - 2,800MOQ: 1 Set
-
50KHZ Ultrasonic Nebulizer Pulverizing MachineryUS$ 1,500 - 2,800MOQ: 1 Set
Type
Ultrasonic Humidifier
Installation
Tabletop / Portable
Certification
CE, Other, CE, ISO 9001:2008
Mist Output (gallon / day)
1680
Power (W)
100
Voltage (V)
220
Place of Origin
Zhejiang, China
Model Number
YP-W59
Brand Name
FYCG
Capacity
1680, 0.5-150L/h
Humidity Control
Humidistat

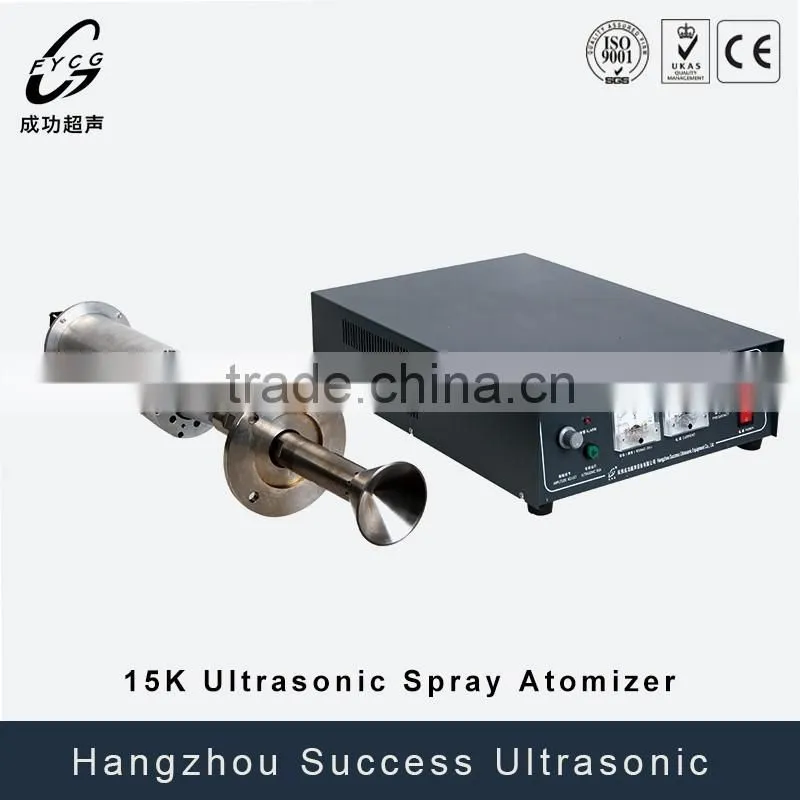

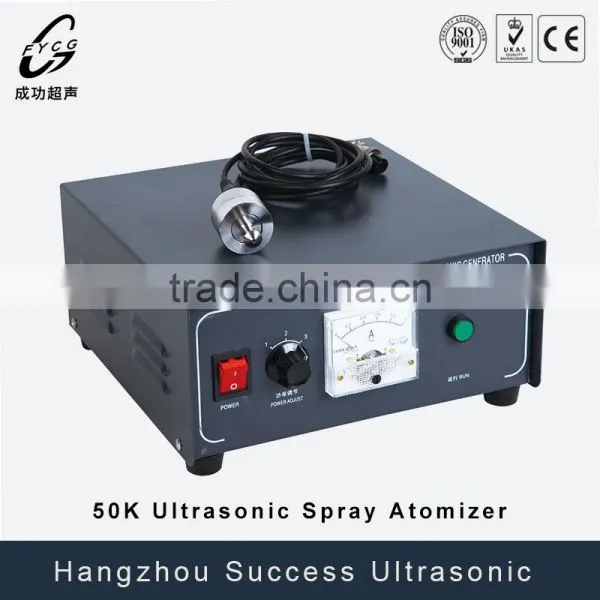

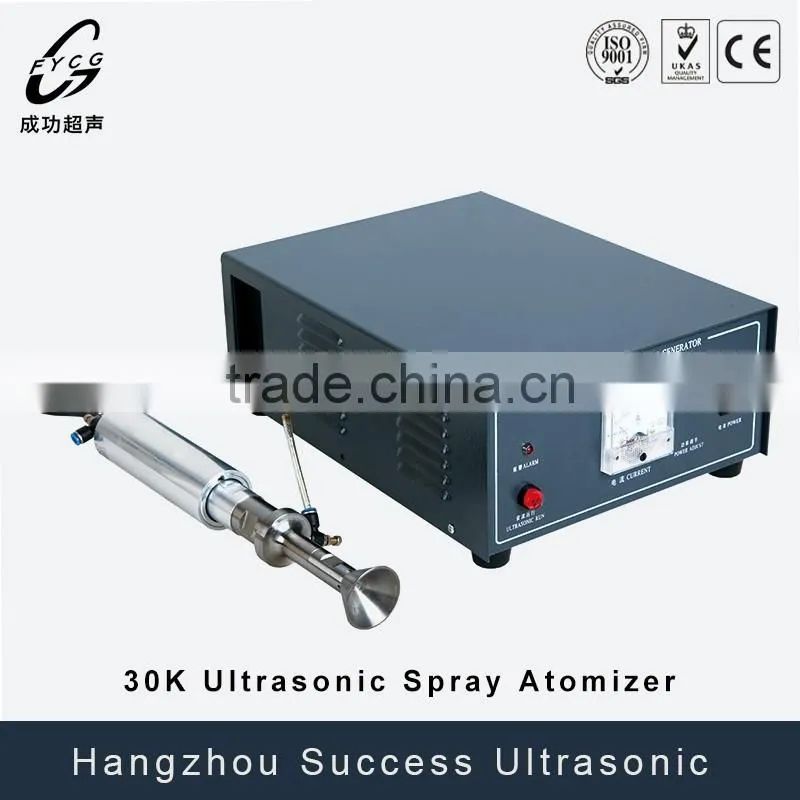

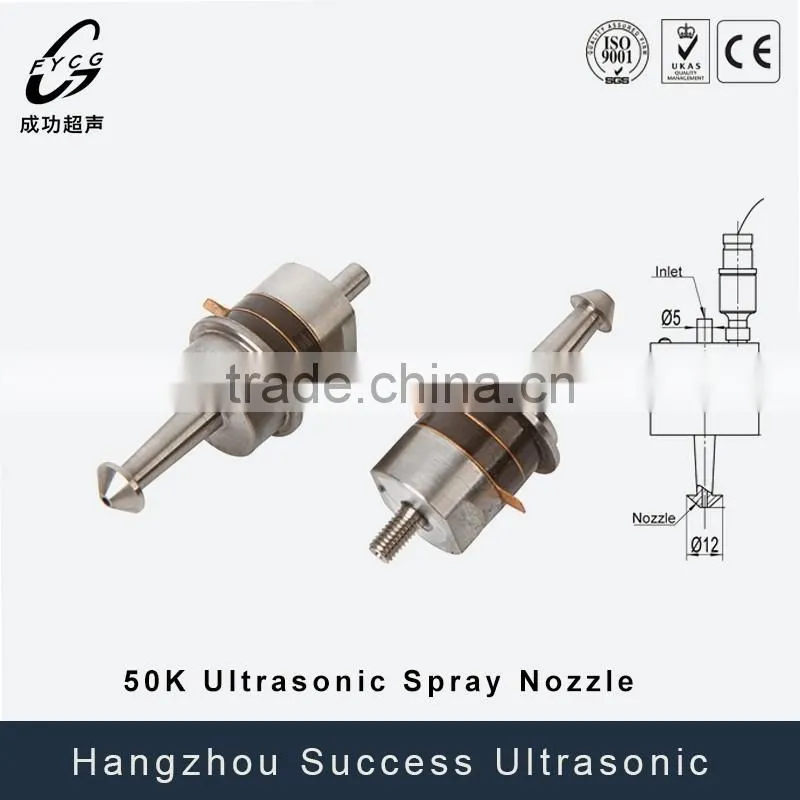

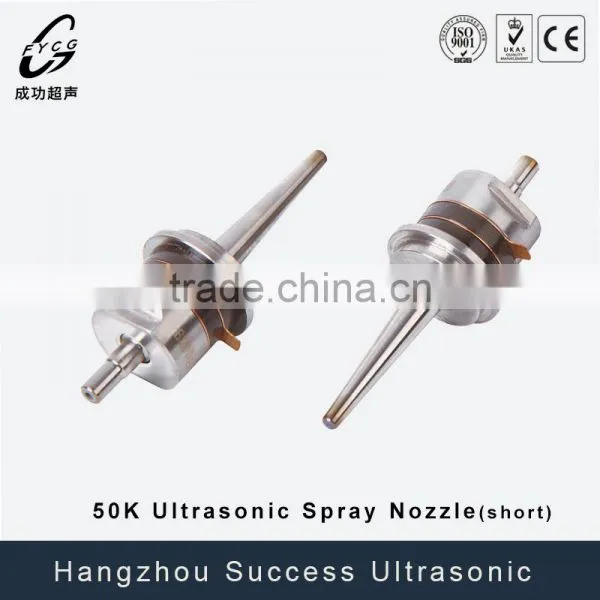

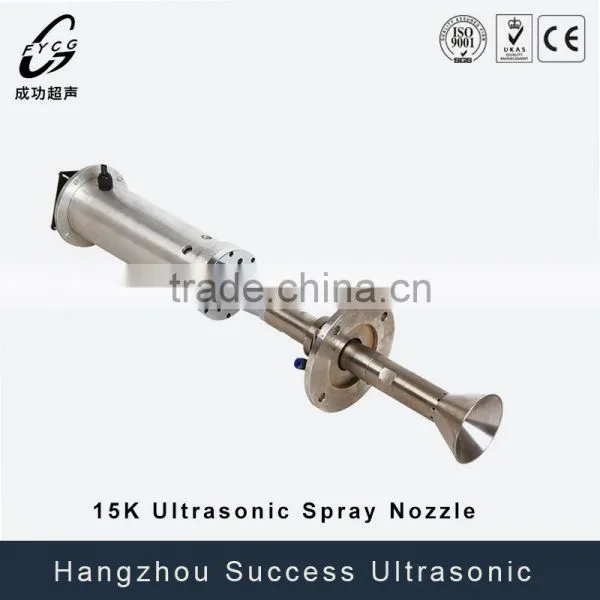

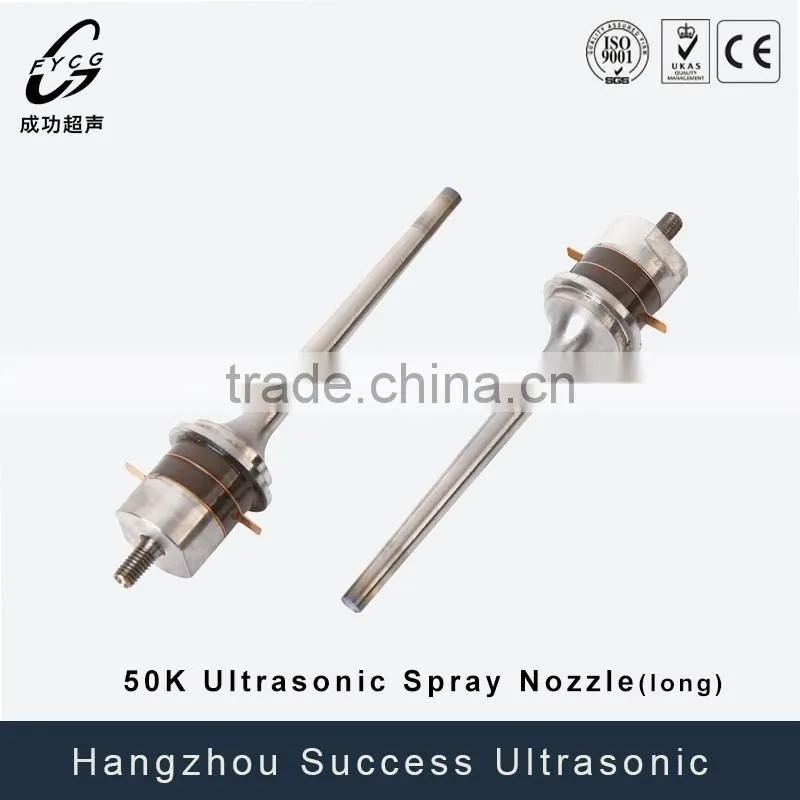

15-50K Ultrasonic Atomizing Nozzles/Ultrasonic Spray Atomizer
Ultrasonic Spray technology is used to coat practically any substrate shape, size or surface with uniform micron thick coatings, and even nanocoating thicknesses.
Feature
1.A major breakthrough in spray technology, you can spray a variety of liquids.
2.Low power consumption, the fog of great energy saving.
3.No plug, no abrasion, no noise, no pressure, no moving parts.
4.Can be any combination to meet the requirements of the spray volume.
5.The use of high-performance titanium and stainless steel.
Parameter
| Model | YP-W63 | YP-W61 | YP-W59 | YP-W57 | YP-W55 | YP-W51 |
| Frequency | 15 Khz | 20 Khz | 30 Khz | 40 Khz | 50 Khz | 60 Khz |
| Max Atomization Volume | 150 L/H | 100 L/H | 70 L/H | 10 L/H | 2 L/H | 0.5 L/H |
| Average Particle Diameter Of Fog | 62 μm | 51 μm | 39 μm | 32 μm | 28 μm | 20 μm |
| Power Consumption |
0.001 Degrees/Kg |
0.01 Degrees/Kg |
||||
| Atomization Head Structure | Horn |
Cylindrical |
||||
| Power | 500 W | 300 W | 100 W | 60 W | 30 W | 30 W |
| The application of atomizing media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
|||||
Use |
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on |
|||||

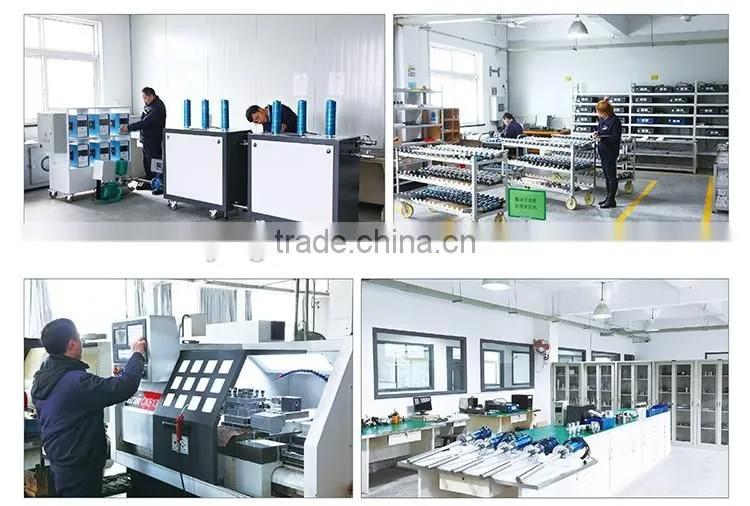

Company View:
