Specifications
1.Tungsten Carbide Ball2.Various sizes
3.High quality with best price
4.Fast delivery time
5.OEM/ODM is welcome
YG6 Tungsten Carbide Ball&tungsten carbide ball 6mm
1.About us
Zhuzhou Good Cemented Carbide Co., Ltd is a professional manufacturer of various tungsten carbide dies and cemented carbide precision casting parts.We have rich experience in the area over 10 years and we're equipped with advanced equirement and professional engineers."High Quality,Best Price,Sincere Service" is the soul of our company.
Our main products include cemented carbide drills,cutting cutters,mining tools,drawing dies,carbide strip,rods,balls,etc..Skillful workers and advanced machines can make every of your size possible.Diffrent grades are available too.
2.About our advantage
1) 100% quality guarantee (ISO9001)
2) Various sizes for selection
3) Professional technical support
4) OEM & ODM are welcomed
5) Small order is acceptable
6) Factory service with competitive service in the market
7) Delivery in time
8) Flexible payment terms(L/C,T/T,western union, Paypal, etc.)
9) Best after-sale service
3.About Tungsten Carbide Ball
The balls have extreme hardness and high wear resistance. They're widely used for bearings,balls screws,valves and flow meters,pen,spraying machines,pump,machinery parts,oil,hydrochloric zcid lab,
hardness measuring insturment and high-end industry,etc..
Equivalent grade | ISO grade | WC% | Co% | Hardness (HRA±0.5) | Density (g/cm3±0.1) | TRS | Characteristics and Application |
Mps | |||||||
Min | |||||||
YG6X | K01 | 94 | 6 | 93 | 14.85 | 2700 | The fine grain size, suitable for processing of non-ferrous metal finishing and woodworking cutting tools. |
YG10X | K20 | 90 | 10 | 92 | 14.45 | 3400 | suitable for all kinds of milling cutter and hole machining tool. |
YG6A | K10 | 94 | 6 | 92 | 14.95 | 2450 | suitable for wire drawing die and woodworking cutting tools. |
YG6X | K10 | 94 | 6 | 91.5 | 14.95 | 2500 | applies to non-ferrous metal cutting. |
YG6 | K20 | 94 | 6 | 91 | 14.95 | 2600 | Used for rough machining of non-ferrous metals. |
YG8 | K30 | 92 | 8 | 90 | 14.7 | 2700 | suitable for wire drawing die, drawing die. |
YG9 | K40 | 91 | 9 | 89 | 14.6 | 2800 | suitable for processing hard low grey cast iron. |
YG11 | K40 | 89 | 11 | 88.5 | 14.45 | 2900 | suitable for wearing parts and mining tools. |
YG12 | K40 | 88 | 12 | 89 | 14.4 | 3000 | suitable for rough machining of non-ferrous metals. |
YG13 | K40 | 87 | 13 | 88.5 | 14.2 | 3100 | suitable for wear resistance and resistance to stamping parts |
Tungsten carbide ball | ||
Type | Dimensions and tolerance(mm) | |
Diameter | Tolerance | |
D-0.5 | 0.5 | ±0.02 |
D-2.5 | 2.5 | ±0.3 |
D-3.3 | 3.3 | ±0.3 |
D-4.2 | 4.2 | ±0.3 |
D-5.5 | 5.5 | ±0.3 |
D-6 | 6 | ±0.3 |
D-8 | 8 | ±0.3 |
D-10 | 10 | ±0.3 |
D-12 | 12 | ±0.3 |
D-20 | 20 | ±0.3 |
D-25 | 25 | ±0.5 |
D-30 | 30 | ±0.5 |
D-35 | 35 | ±0.5 |
D-40 | 40 | ±0.5 |
D-45 | 45 | ±0.5 |
D-50 | 50 | ±0.5 |
… | … | … |
Note: The size and grade can be customized as requirements.

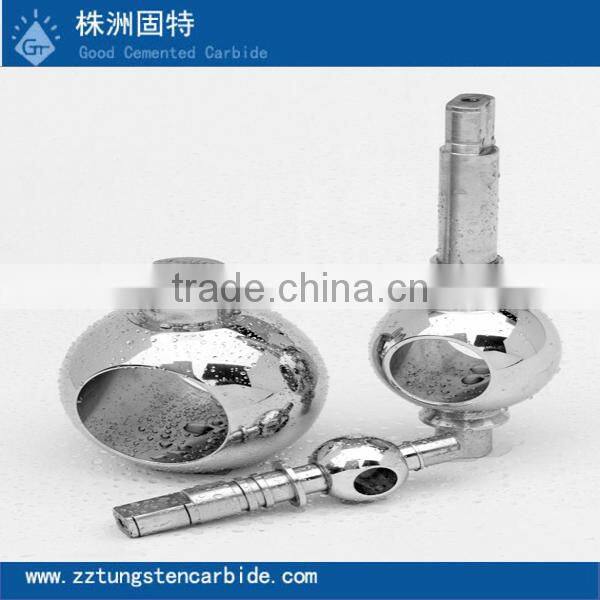

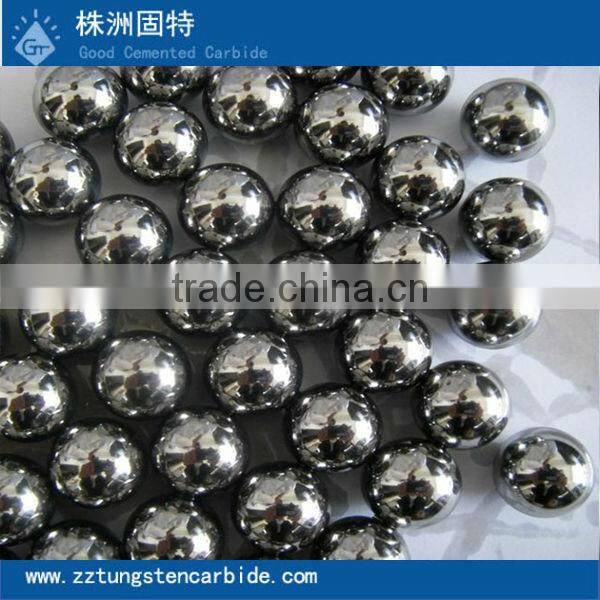

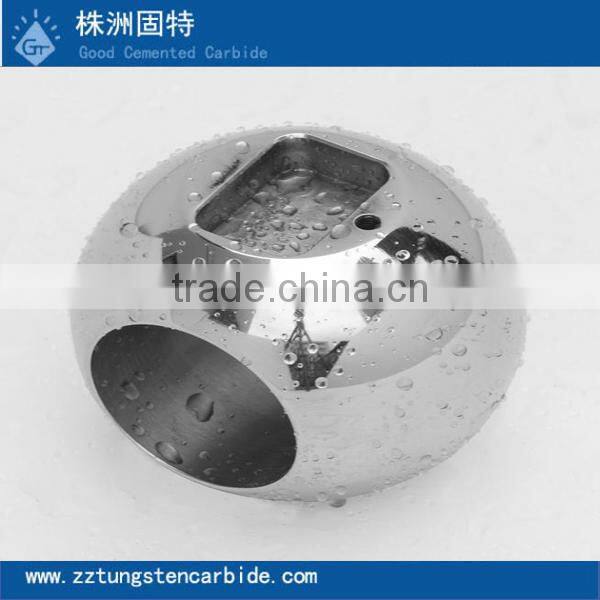

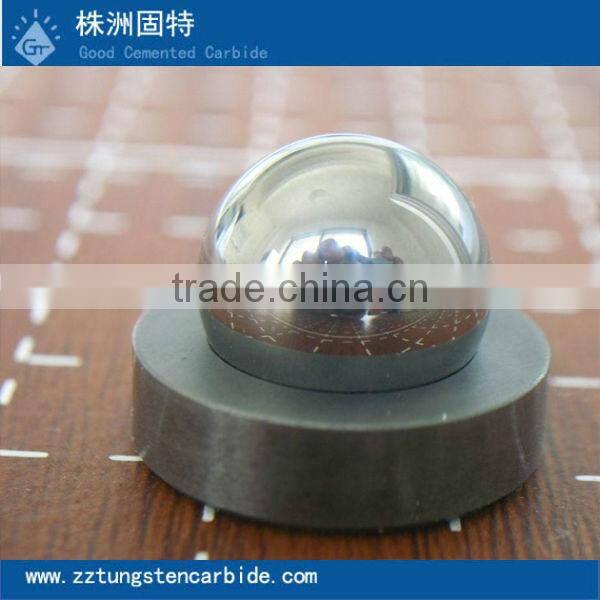

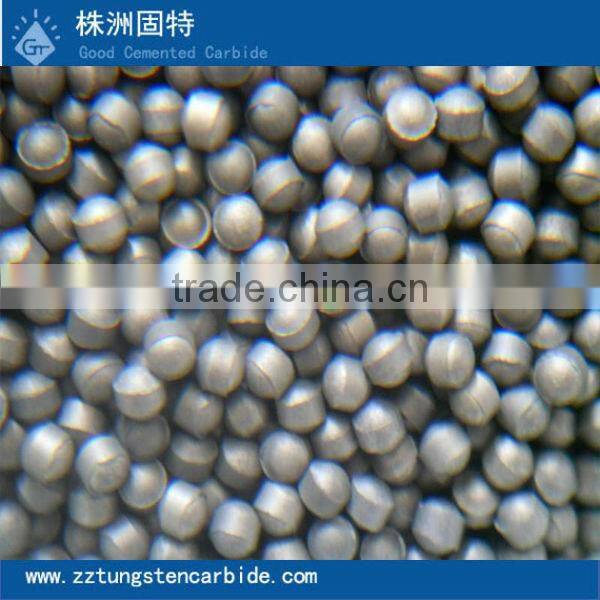

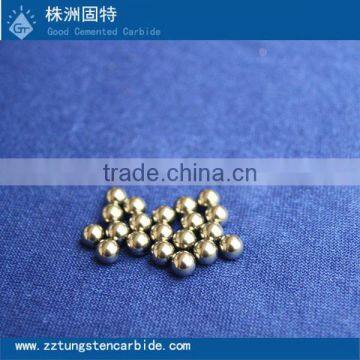

5.Tungsten Carbide Ball Pictures
6.wide application&production process
7.package&factory
You're welcome to visit our factory and we will show you around!!
Welcome to inquiry and we will provide you the best service.
