Tungsten Wire Drawing Die /Carbide Products/Customized Cemented
- 5000 Piece / Pieces per Month
- shenzhen/ningbo/shanghai
- T/T Credit Card PayPal
- SALVADOR meat grinder mincer chopper plates knives cutters spare parts accessories blades discos made in china
- Suitable for Apple Watch Ultra 2 S9/S8/S7 recovery upgrade repair tool
- 10x magnification tweezers Portable fragment forceps with magnifying glass
- TIDEWAY Rotary Burrs Micro - Grain Carbide End Mill For Cutting Cast Iron, Cast Steel
- TIDEWAY Oem Double Face T.c.t Panel Raising Carbide Shaper Cutters With Red Painted Color
- TIDEWAY Durable T.c.t Grooving Cutter Carbide Shaper Cutters For Wall Board And Windows Making
Product Details
Place of Origin: | Hunan, China | Brand Name: | GT | Model Number: | GT-011 |
Type: | Hand Tool Parts |
Product Description

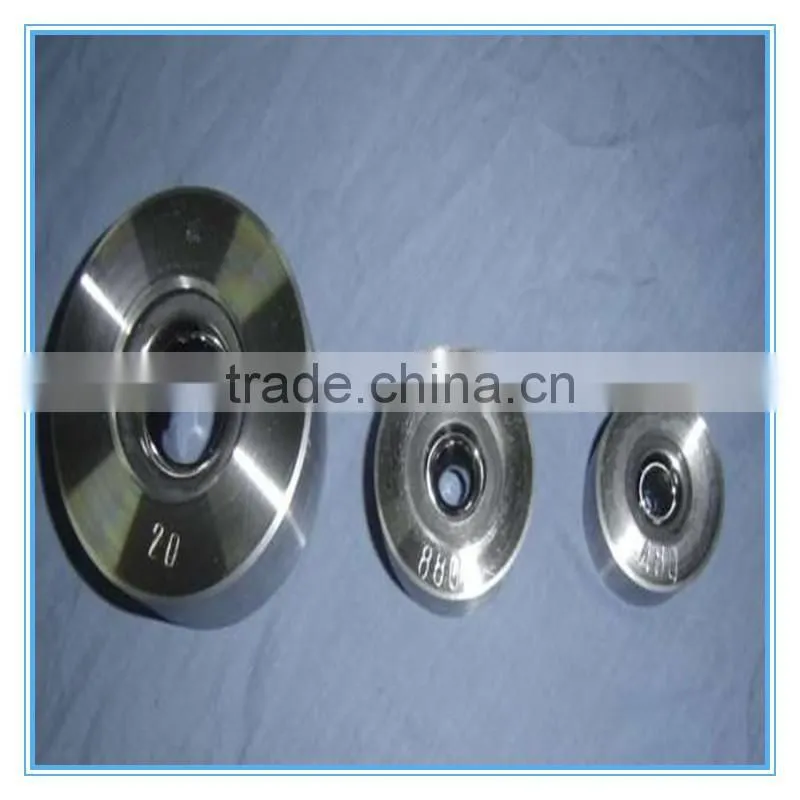

Tungsten Wire Drawing Die /Carbide Products/Customized Cemented
1. Item Description:
Tungsten Wire Drawing Die /Carbide Products/Customized Cemented | Usually refers to a variety of control wire mould, as well as optical fiber drawing die.All the center of the drawing die has a certain shape of the hole, round, square, octagon, or other special shapes.Metal is pulled through the die hole size smaller, even the shape change.Soft metal (such as gold and silver) steel is enough, can have many different size of hole on the steel mould |
Shape |
Round shape with different shape hole. |
Application | Different Kinds of metal wire. |
Features |
Tungsten carbide belongs to cobalt alloy, its main composition is tungsten carbide and cobalt. |
Density |
about 14.89g/cm3 |
Advantage |
It has good abrasion resistance, impact resistance, light and corrosion resistance, easy to repair, and the price is low, is a common wire drawing die core materials, widely used in the coarse, wire drawing |
Structure |
Typical structure of a cylindrical (or with a slight taper) of cemented carbide mold core and tightly inlaid in a circular steel bushing (case), the mold core in the inner hole Bell mouth radius, (Bell), the inlet cone (Entrance angel), deformation (work) cone (approach Angle) and sizing of all (bearing) and outlet Angle (back relief). |
Type |
Round, square, octagon, or other special shapes
|
Grade | Density(g/cm3) | Hardness(HRA) | TRS (N/mm2) | Recommended Application |
YG6 | 14.95 | 89.5 | 2580 |
Universal grade ,widely used in machining tools for cast ion,nonferrous metals and their alloys and nonmetal materials,wear parts ,and tools foe machining other alloys.
|
YG8 | 14.74 | 89.0 | 2710 | |
YG6X | 14.93 | 91.0 | 2480 |
Suitable for the semi-of hard cast iron,nonferrous metals and their alloys, and also suitable for the semi-finishing and of common cast iron and high manganese steel work-pieces and for othe tools
|
YG6A | 14.89 | 91.5 | 2350 | |
YG8C | 14.69 | 87.5 | 2850 |
Mainly used for rock drilling,auger tips and well drilling tools and at the same time for drilling stone walls,cemented construction and installation work,and machining stone materials.
|
YG11C | 14.32 | 86.5 | 2940 | |
YL10.2 | 14.45 | 91.5 | 2880 |
Mainly used for manufacturing strips and disc cutters and also for other tools
|
YM80 | 14.76 | 90.5 | 2590 |
For manufacturing strips and also for other tools
|
YS2T | 14.45 | 91.5 | 2380 |
Used for disc cutters and also for other tool
|
YM15.1 | 14.05 | 92.5 | 2170 |
Suitable for the rough and of stainless steel, finishing of high strength steel sinishing and semi-sinishing of hardened steel ,and the machining of oron based heat resistant alloys and glass articles.
|
Customized grade as per your request acceptable !

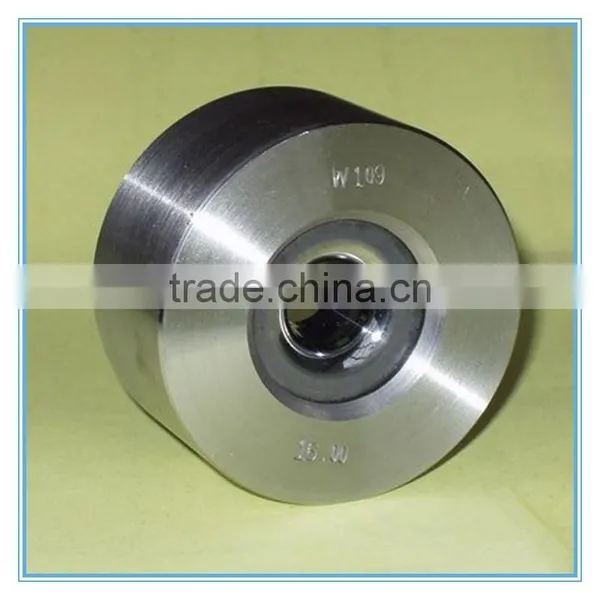

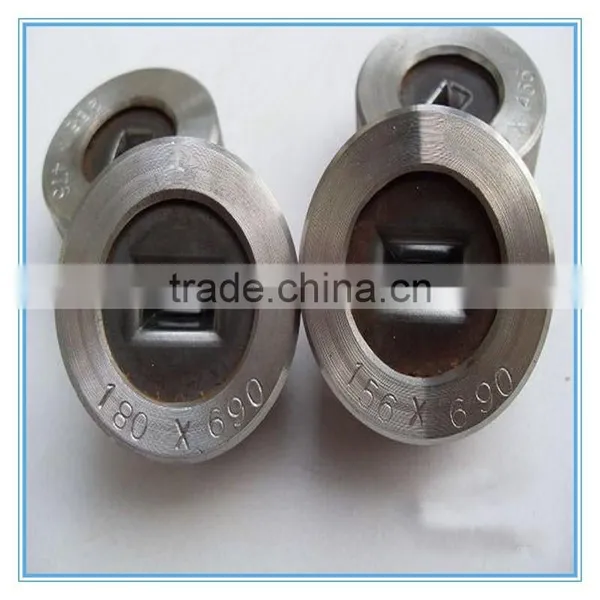

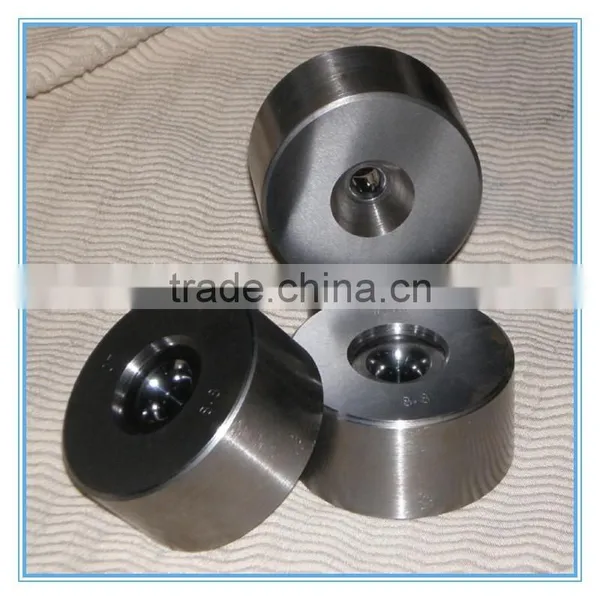

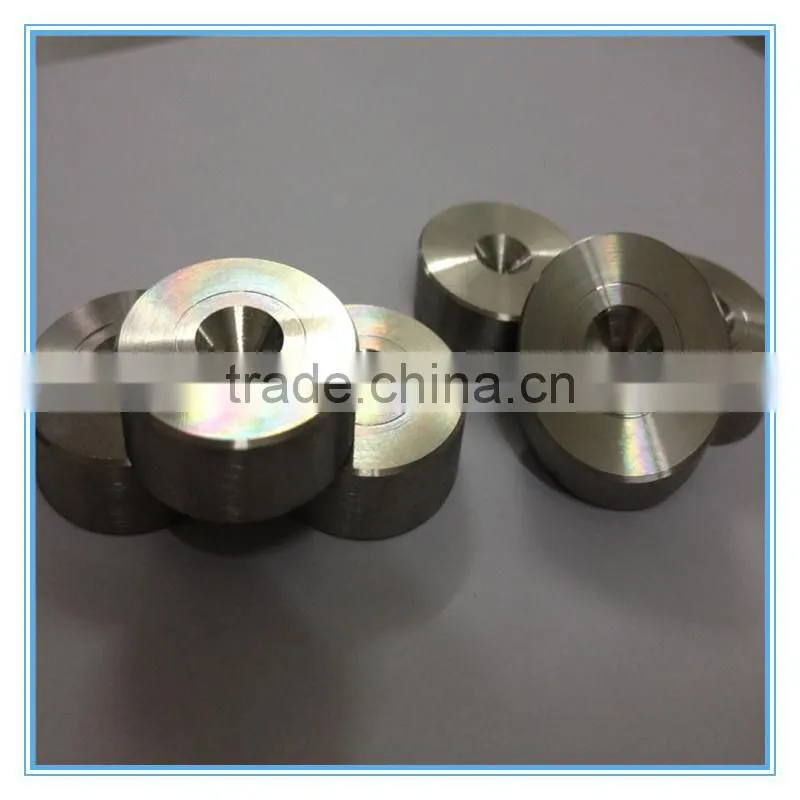

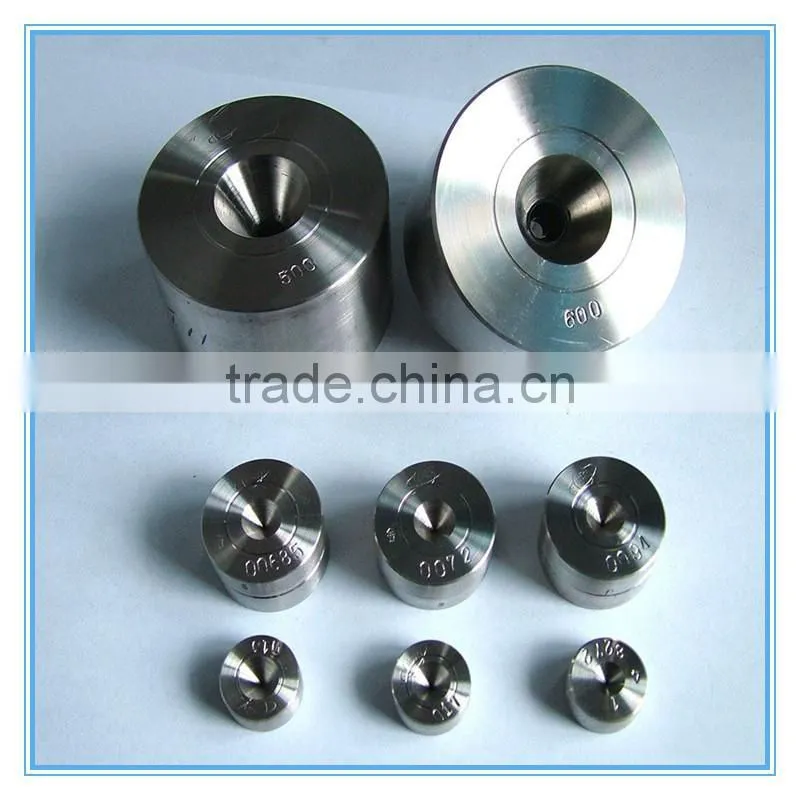

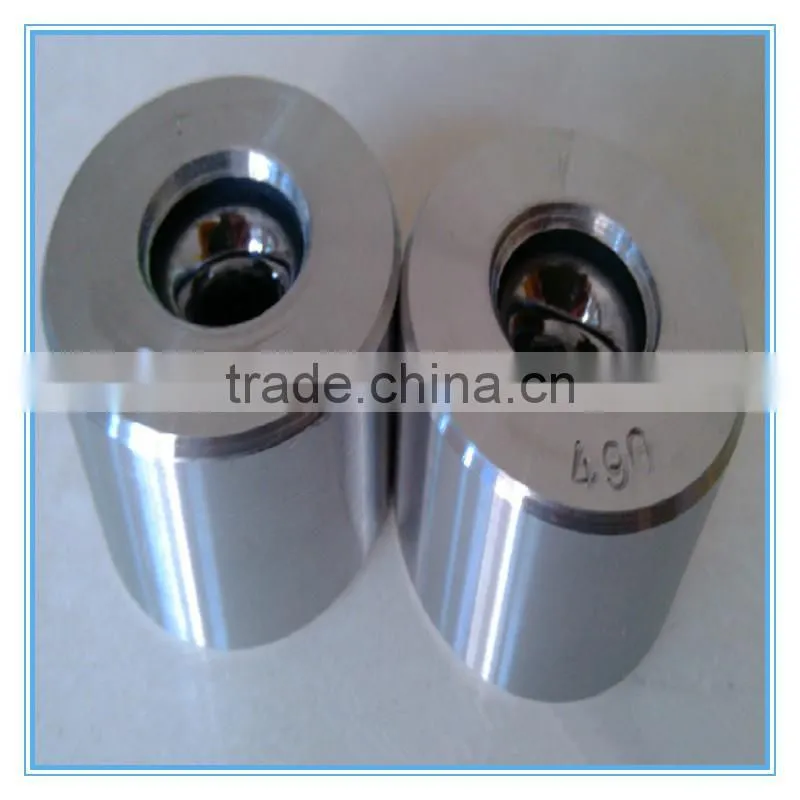

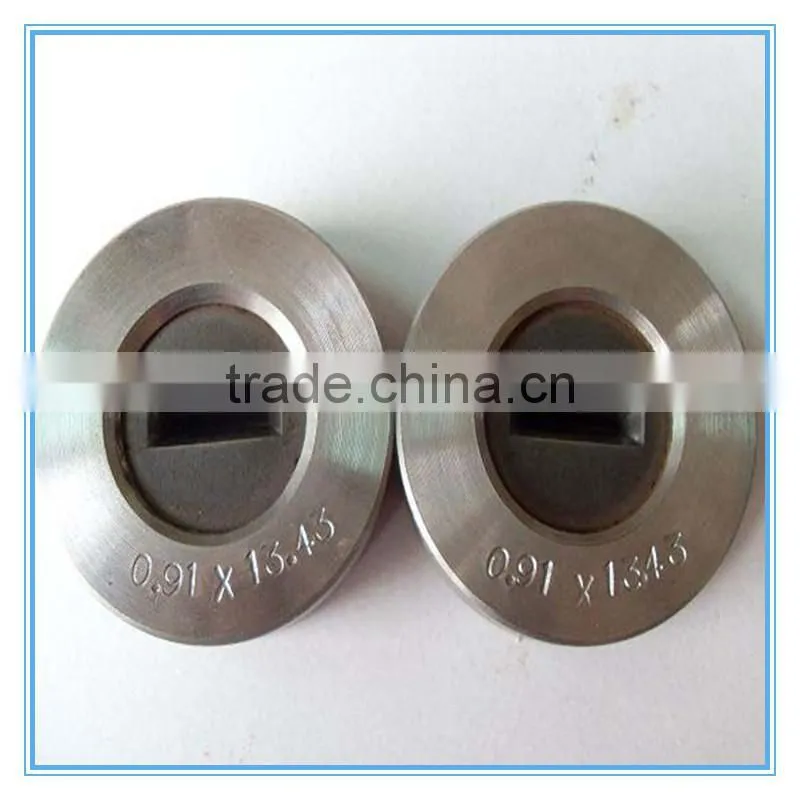

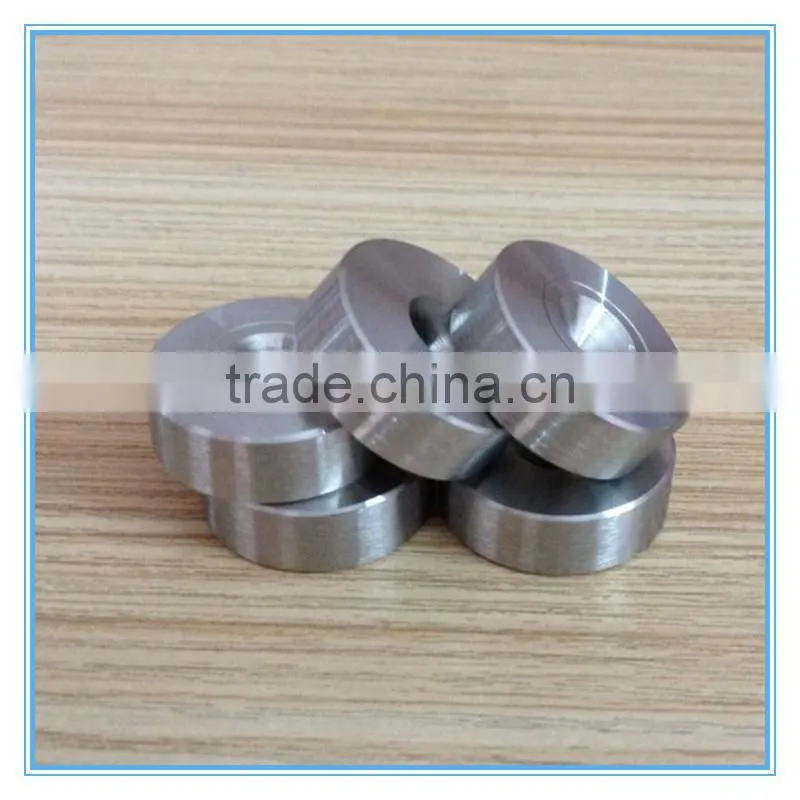

2.More item picture for your reference :
3. About Us :
Zhuzhou Good Cemented Carbide Co., Ltd. is a professional manufacturer of various tungsten carbide dies and cementsed carbide precision casting parts.We are equipped with advanced equipment and specialized persons,especially have rich experience in making products of complicated configureations.
Our Main products include tungsten carbide inserts,geoglogical and mining tools, drilling bits,crusching of carbide hammer ,precision casting parts, cutter tips, drawing dies,cold forging dies,new non-magnetic carbide mould,carbide bars,rods,balls,ware parts, ect.
We can also manufacture various cemented carbide tools as per drawing and samples based on different requirements of customers and provide whole package of solutions for machanical maching and manufacturing .
4.Why Choose Us:
- OEM & ODM available
- Quality Guarantee (ISO9001)
- Trial order acceptable.
- Short delivery time
- Good after-sale service
- Factory provide professional technical support & competitive price
- Various size for choose, customized as your drawing no problem
