Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle

Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle photo-1

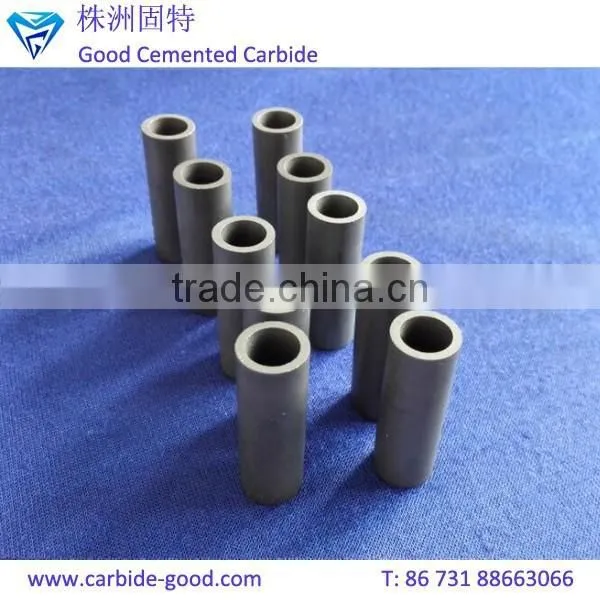

Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle photo-2

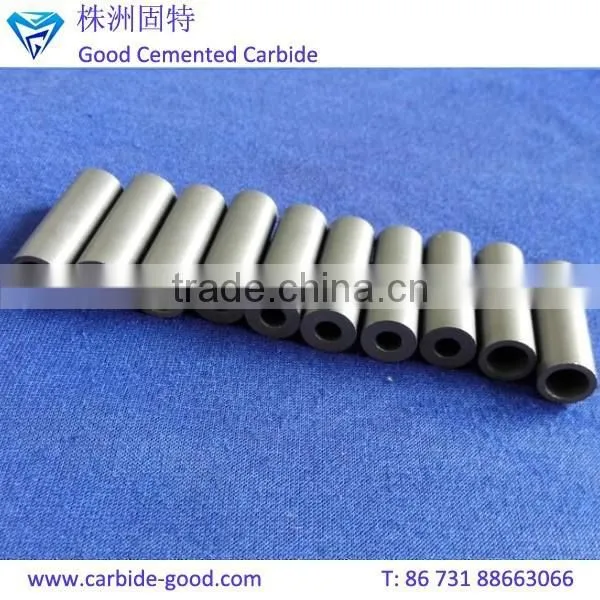

Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle photo-3

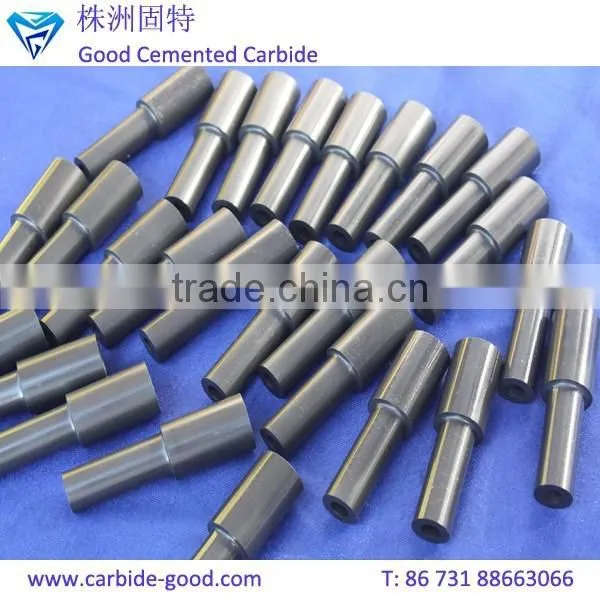

Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle photo-4

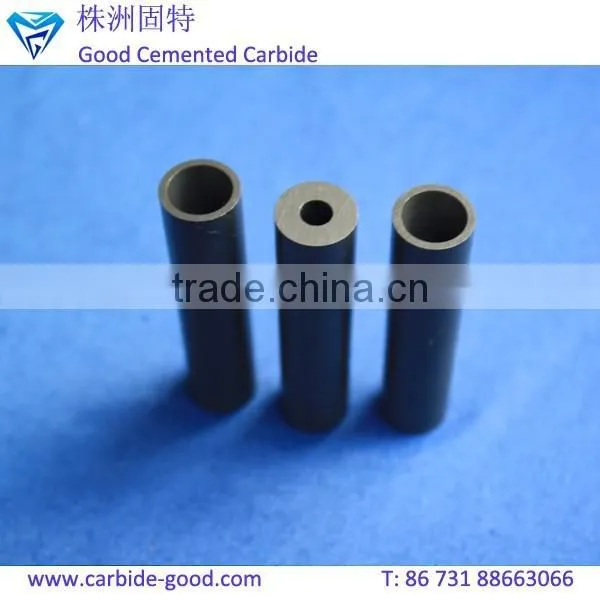

Venturi Boron Carbide Ceramics(nozzle) Blast Nozzle Sand Blasting Nozzle photo-5
US$ 1 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Zhuzhou Good
Model Number:
BC-1005
Payment & Shipping
Payment Methods:
Port of Shipment:
Any ports like Shenzhen Shanghai Guangzhou etc..
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name Zhuzhou Good
Model Number BC-1005
Type Hand Tool Parts

Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle



1.about Us





Zhuzhou Good Cemented Carbide Co.,Ltd. established in Zhuzhou City, Hunan Province, the largest tungsten carbide producing area in China and now our office moved to Changsha city, capital of Hunan province. We own a factory specialized in cemented carbide and related tools, we also do many other OEM products as request from customers. As a professional manufacturer, we are equipped with advanced equipments and specialized persons, especially have rich experience in making customized products. Over 10 years, we have been committing to "High Quality, Best Price, Sincere Service" as soul of our factory.







Our factory have a whole set of machines, including sieve shaker, press machine, sintering furnace, dryer, grinder, lathe, milling machine, cnc wire-cut machine, radial drilling machine, spark erosion drilling machine, etc. We also gathered the professional staff members in the area of designing, producing and sales and our workers are well trained and experienced.







Our main products includes: tungsten carbide inserts, cast tungsten carbide powder, geoglogical and mining tools, throw cast tungsten carbide ingots, tungsten carbide welding rods, carbide burrs, end mills and drill bits, crushing of carbide hammer and anvil, tungsten carbide glass and tile cutting wheels, precision casting parts, tungsten carbide balls, strips and plates, tungsten carbide roll rings, disc cutters and blades, brazed tips, drawing dies, blasting nozzles, cold forging dies, punching dies, new non-magnetic carbide tools, carbide wear parts, pure tungsten, etc. We can also manufacture various type of precision tools, non-standard and deep-processing products according to drawings and so on.



2.about our Advantage


1) 100% quality guarantee (ISO9001)

2) Various size for selection

3) Professional technical support

4) OEM & ODM are welcomed

5) Small order is acceptable

6) Factory service with competitive service in the market

7) Delivery in time

8) Flexible payment terms(L/C,T/T,western union, Paypal, etc.)

9) Best after-sale service


3.venturi boron carbide Description



The venturi boron carbide are in very high hardness, excellent wear resistance and the boron carbide won’t react with acid-base. High/low temperature resistance, high pressure resistant, density≥2.46g/cm³,micro hardness≥3500kgf/mm², TRS≥400Mpa, melting point is 2450℃. With above performance, now many customers choose the boron carbide nozzles to replace the nozzles made from tungsten carbide, silicon carbide, silicon nitride, aluminium oxide, zirconium oxide, etc.



4.venturi boron carbide Size



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

Type

Outer diameter

Inner diameter

Length

N35021

21.0

5.0-10.0

35.0

N60021

21.0

5.0-10.0

60.0

N82021

21.0

5.0-10.0

82.0

N100021

21.0

5.0-10.0

100.0


Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

Type

Outer diameter

Inner diameter

Length

N35021A

21.0

5.0-10.0

35.0

N60021A

21.0

5.0-10.0

60.0

N82021A

21.0

5.0-10.0

82.0

N100021A

21.0

5.0-10.0

100.0



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

Type

Horn diameter

Inner diameter

Length

N54032

15.0

3.2

54.0

N54048

15.0

4.8

54.0

N54064

15.0

6.4

54.0

N54079

15.0

7.9

54.0

N54095

15.0

9.5

54.0

N54111

15.0

11.1

54.0

N54127

15.0

12.7

54.0

N150032

15.0

3.2

150.0

N150048

15.0

4.8

150.0

N150064

15.0

6.4

150.0

N150079

15.0

7.9

150.0

N150095

15.0

9.5

150.0

N150111

15.0

11.1

150.0

N150127

15.0

12.7

150.0



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

Type

Exit

Inner diameter

Length

N130048

9.0

4.8

130.0

N135064

10.5

6.4

135.0

N140079

12.0

7.9

140.0

N165095

14.0

9.5

165.0

N190111

15.5

11.1

190.0

N215127

17.0

12.7

215.0



Note: not all the types and sizes are showed in here. Other shapes and sizes are also available upon request and welcome OEM&ODM.

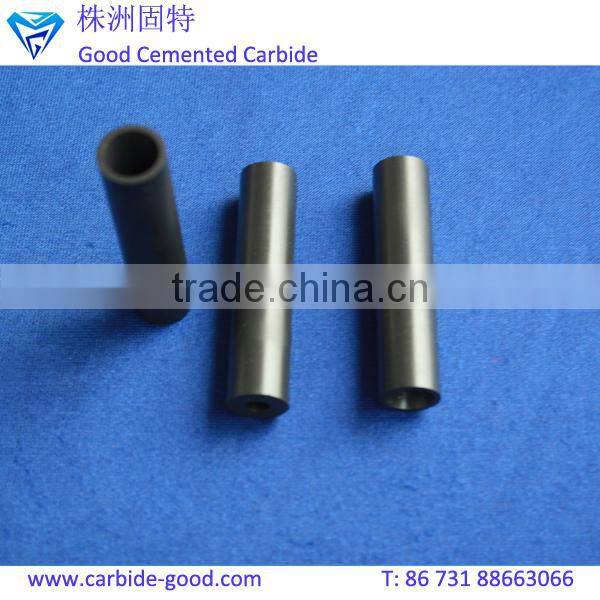

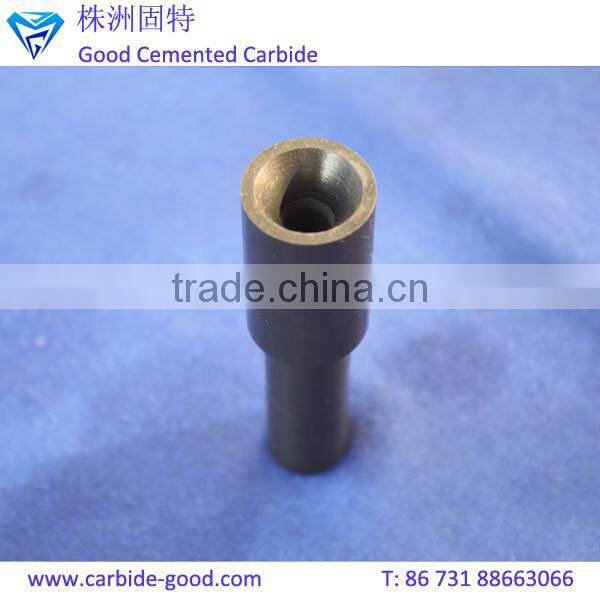

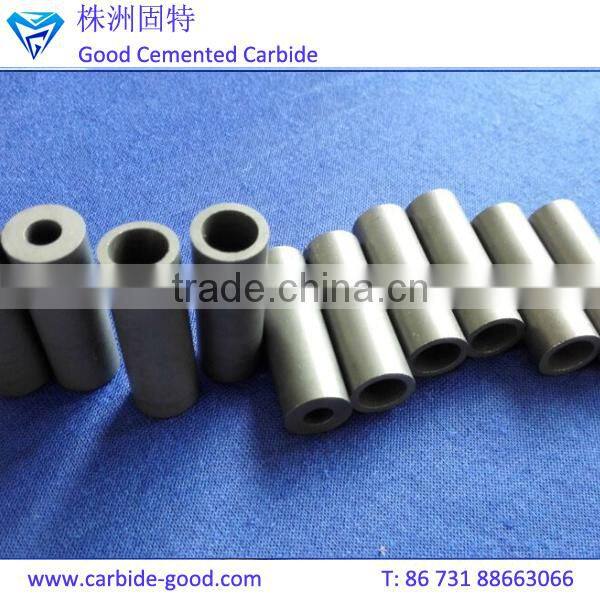

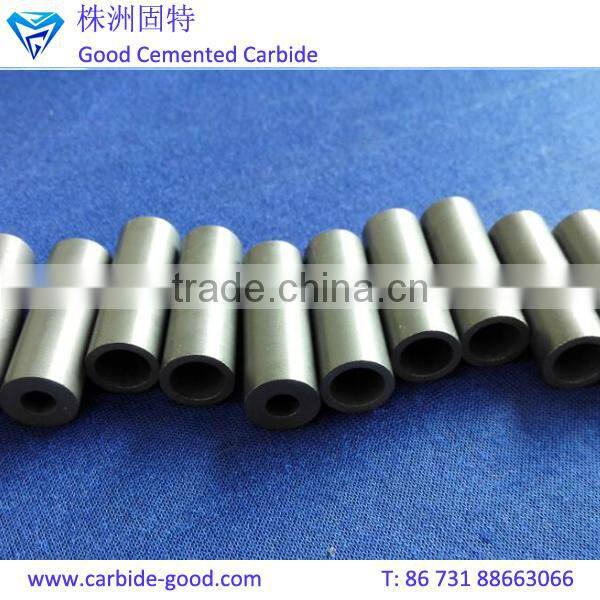

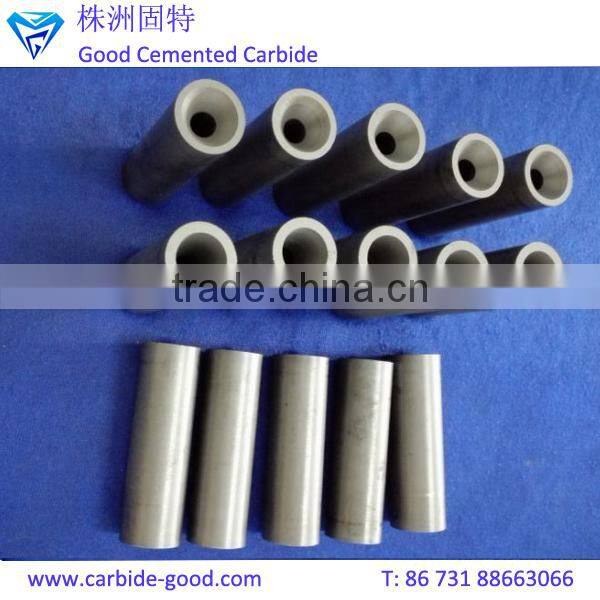

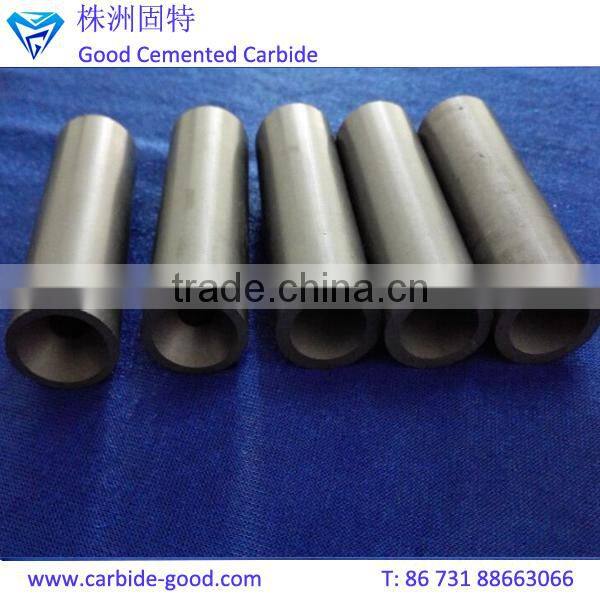

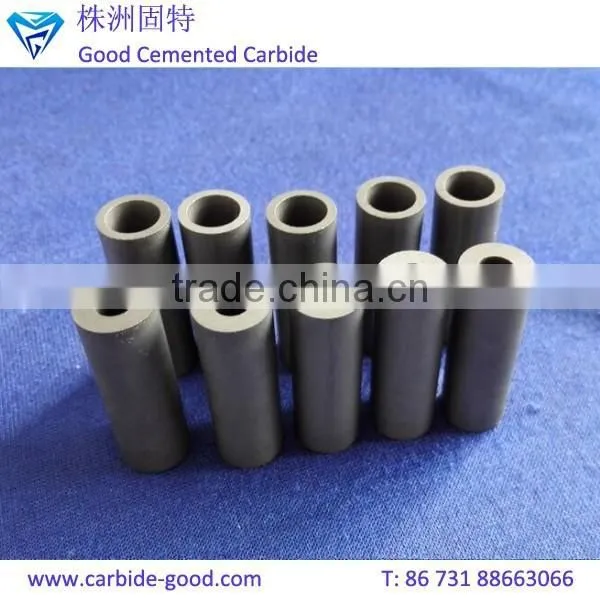

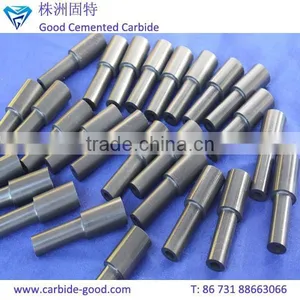

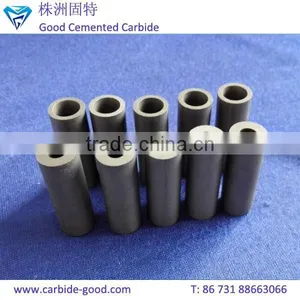

5.venturi boron carbide Pictures



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzleVenturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzleVenturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzleVenturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzleVenturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzleVenturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle



6.wide application&production process



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle





7.package&factory



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle



Venturi boron carbide ceramics(nozzle) blast nozzle sand blasting nozzle

You're welcome to visit our factory and we will show you around!!



Welcome to inquiry and we will provide you the best service.
