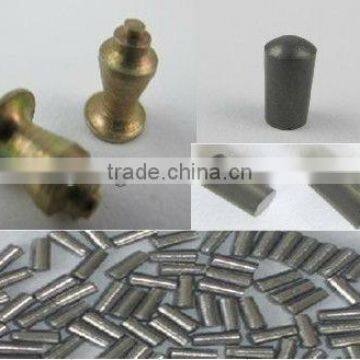

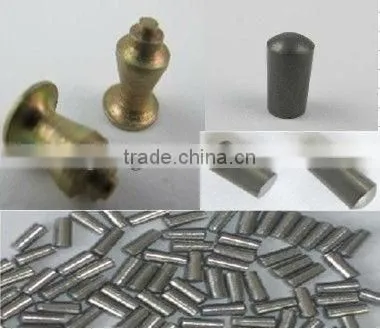

Tungsten carbide spike studs

Specifications

1.tungsten carbide ice gripping stud bodies/pins .
2. 100%raw materials
3. blanks or finished
4. satisfactory service

Application:

Install to studs for bikes,cars,trucks etc





1. The new tire studs can be easily installed and removed without professional installation tools. It can also be disassembled according to the season, when not being used the snow tire studs could be removed lightly and stored for use again in the following season. Choose appropriate size of new studs in the installation process in terms of the depth of tire thread.

2. Carbide studs, the primary working parts of tire studs, is one of our main export products. Being assembled with the outer shell of tire studs, which can be fixed to the surface of tire as a whole for antiskid effect. Through nearly four years of exploration and experience accumulation, production technology and quality control measures of our company have been fully mature. Now our company has a highly automated production capacity, the monthly output can reach up to 1060 million grain/month, and the throughput of existing raw material is 10 tons/month.



GRADE	Co+…	Hc	Den	HV30	RS	Metallographical phase
JX019	7.5-9.0	11.0-14.0	12.68-12.78	1400-1600	50-90	A04B02C02E00
JX021	8.2-10.0	10.0-12.0	12.10-12.20	1400-1600	50-90	A04B02C02E00
JX025	9.0-11.0	10.2-11.2	12.77-12.87	1380-1480	87-97	A04B02C02E00





The carbide pins can be controlled within a very tight tolerance at +/-0.05mm.

Samples and quotations will be given upon receipt of your enquiry.



Grade : YM12 FH019 FH015

Type: Φ2.3*5.2 Φ2.4/Φ2.08*5.8

Other grades may be offered by customers' requirements.

All the products must be inspected strictly with the ultrasonic and only those haven't any harm such as pore canbe shipped out.

High density,high wear&impact resistance,which lead them a long lifetime.
