As for carbide stone cutting tips , below are the general features for your reference. For more details of specific type, please inform us.
| Products name | tungsten carbide insert for chain saw machine for stone |
| Type | Power Tool parts |
| Material | 100% Virgin Tungsten Carbide |
| Grade No. | K20/K30/K40/YC20/YC15 |
| Main size | 12.7x12.7x5.0 MM-5.2MM |
| Free Sample | 1-2 pcs available |
| MOQ | 5KGS |
| Delivery time | 15 days |
| Original Place | Hunan, China |
| Service | OEM, ODM |
| Packing | Plastic box inside, carton outside; Or as per your request |
Advantage of our tungsten carbide insert for chain saw machine for stone:
- High Purity raw material
- Various size and full types are available
- Strictly checked, quality guaranteed
- Products can be customized as per requirment

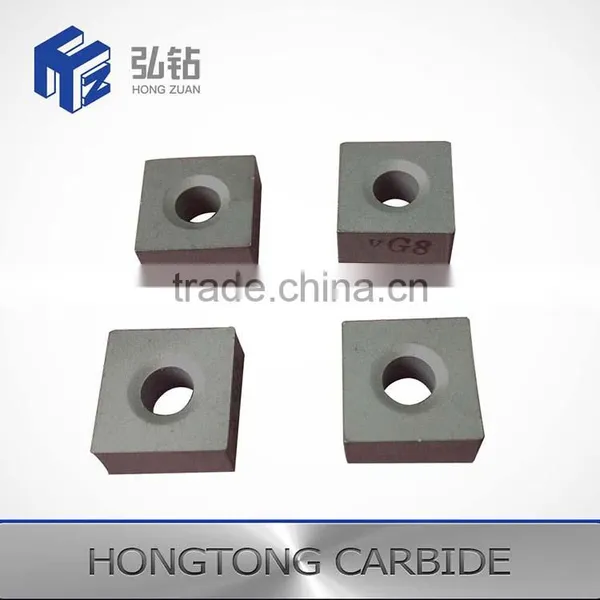

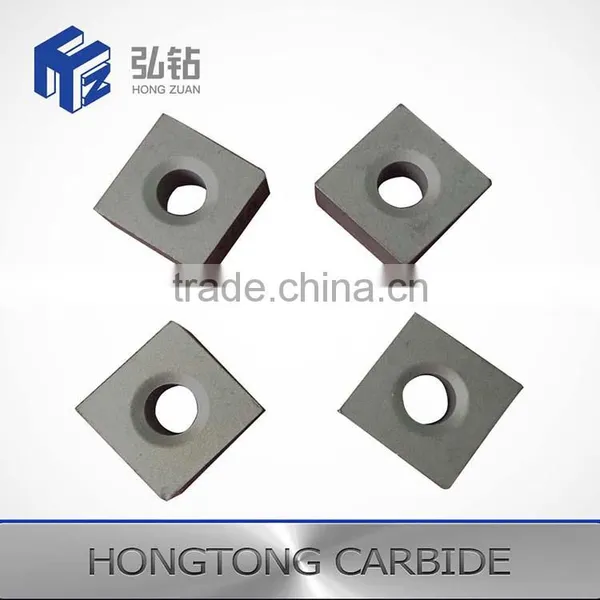

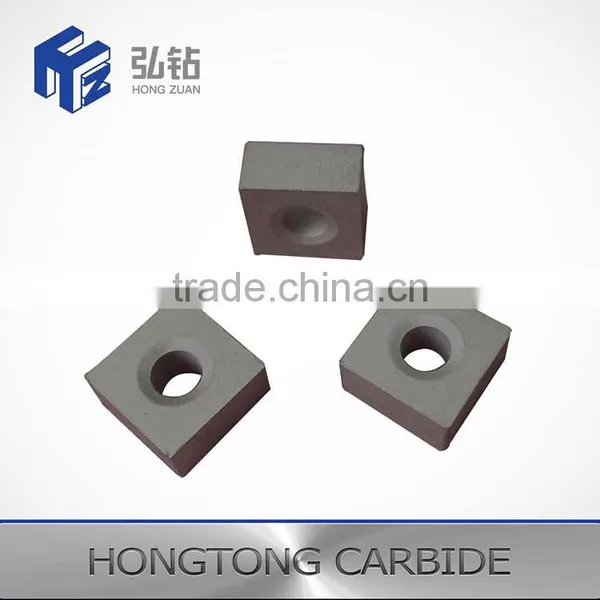

Below are the product picture and drawing for your reference. For more details, please inform us.
|
|
|||
| Type | L | W | T | |
| Squared | 12.7MM | 12.7MM | 5.0MM | |
| Squared | 12.7MM | 12.7M | 5.2M | |
Main Grade No. for our tungsten carbide insert for chain saw machine for stone:
Grades |
Density(g/cm³) |
Hardness(HRA) |
T·R·S (MPa) |
Application Recommended |
YG4C |
15.00 |
89.5 |
1800 |
Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
15.80 |
89.5 |
1700 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees |
All the produces must be inspected strictly with the ultrasonic and only those haven’t any harm such as pore can be shipped out.
- OEM & ODM are welcomed;
- Customized design is available;
- Reply your enquiry in 24 working hours;
- Experienced staffs answer all your questions in fluent English.
ZhuZhou HongTong Tungsten Carbide Co., Ltd., located at Liyu Industrial Park, Zhuzhou National High-tech Development Zone, is a high-tech joint-equity enterprise integrating R&D, production and marketing of cemented carbide series products.
The company sets up an independent production and R&D base, covering a total area of 7,000m2 and a plant area of 4,000m2. There is a group of experienced technical personnel and a staff of 80 people including 5 engineers, 8 assistant engineers, and 29 people having college degree or above. The company mainly produces cemented carbide drawing dies, cold heading dies, mining tools, sealing rings, and other nonstandard products, wherein the cemented carbide drawing dies and cold heading dies take a leading position in the industry, and the bore of wire-drawing die can be minimized to 0.1mm, deeply popular with customers.
If anything we can help, please feel free to contact us.
