1.TC BUSHES :
1.ISO9001:2008 Certificated
2.Good material
3.Delivery timely
4.Trial Order acceptable
5.Customized available

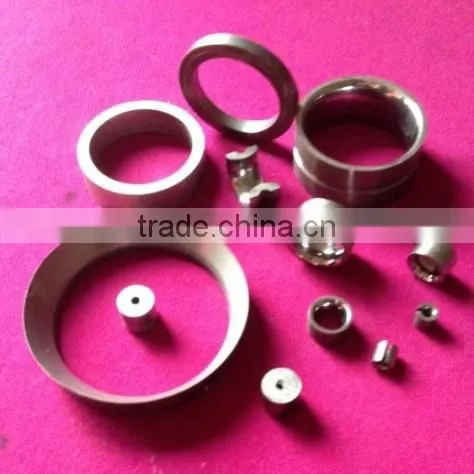

Tungsten Carbide Sleeves &Bushes Description:
Tungsten carbide bush is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion.
Tungsten carbide bush is widely known for its durability and quality. It can withstand high pressure and are resistant to corrosion ,so are used in water pumps, oil pumps and various other pumps. Today, tungsten carbide bush has been playing an important role in the field of long working parts material.
Our service:
Having excellent wear resistance, these bushes are available in different sizes and shapes to meet the varied requirements of our clients. The specification we can make is OD 10~ 300, ID 3~ 260 and H 8~ 150 mm. Either blanks or finished products can be provided.
Our material covers:WC-Co alloy, WC-Ni alloy,WC-Ni/Co alloy,WC-Tic-Ni/Cr alloy etc.
Nickel Binder Grades:
Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Cobalt Binder Grades:
Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG6 | 6 | 14.8 | 90 | 1520 |
YG6X | 6 | 14.9 | 91 | 1450 |
YG6A | 6 | 14.9 | 92 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG12 | 12 | 14.2 | 88 | 1810 |
YG15 | 15 | 14.0 | 87 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
LIPAI Carbide have R&D Dept can help customer to develop new grade as per special application.
Application Field:
Tungsten Carbide Sleeves are often used in water pump, oil pump and other pumps, especially used for high pressure or corrosion resistance pumps, flow control,.
For more information about tungsten carbide products, please feel free to contact us.Welcome to choose and join us-LIPAI Carbide!
