Home > Products > Carbide wire roller guide > cemented carbide wire guide wheel

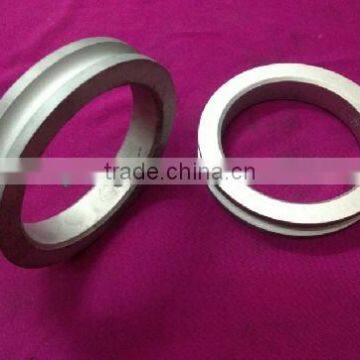

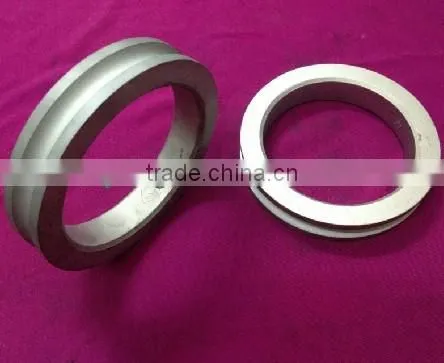

cemented carbide wire guide wheel
- 30 Ton / Tons per Month
- Any port in china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Lipai | |
| Model Number | YG6,YG8 | Type | Power Tool Parts |
Product Description
- TC Ball and Valve Seats
Tungsten Carbide Ball Valve & Valve Seat Description:
For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells,
high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.Various grades for
cemented carbide balls/pellets can be supplied according to customer's drawings.The surface finish,
tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.
Our service:
We can supply tungsten carbide ball and valve seat with high precision.With high corrosion and wear resistance
, and high strength and temperature resistant,our valve ball (tungsten carbide pellets) and seat export to many countries.
Nickel Binder Grades:
Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YN6 | 6 | 14.7 | 89.5 | 1460 |
YN6X | 6 | 14.8 | 90.5 | 1400 |
YN6A | 6 | 14.8 | 91.0 | 1480 |
YN8 | 8 | 14.6 | 88.5 | 1710 |
Cobalt Binder Grades:
Grade | Binder(Wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG6 | 6 | 14.8 | 90 | 1520 |
YG6X | 6 | 14.9 | 91 | 1450 |
YG6A | 6 | 14.9 | 92 | 1540 |
YG8 | 8 | 14.7 | 89.5 | 1750 |
YG11 | 11 | 14.40 | 87.0 | 2200 |
YG12 | 12 | 14.2 | 88 | 1810 |
YG15 | 15 | 14.0 | 87 | 2050 |
YG20 | 20 | 13.5 | 85.5 | 2450 |
LIPAI Carbide have R&D Dept can help customer to develop new grade as per special application.
Application Field:
Used widely in petroleum industry, especially for oil well pump, such as sucker rod pump.
QA/QC Practices:
All raw material physically tested prior to machining
