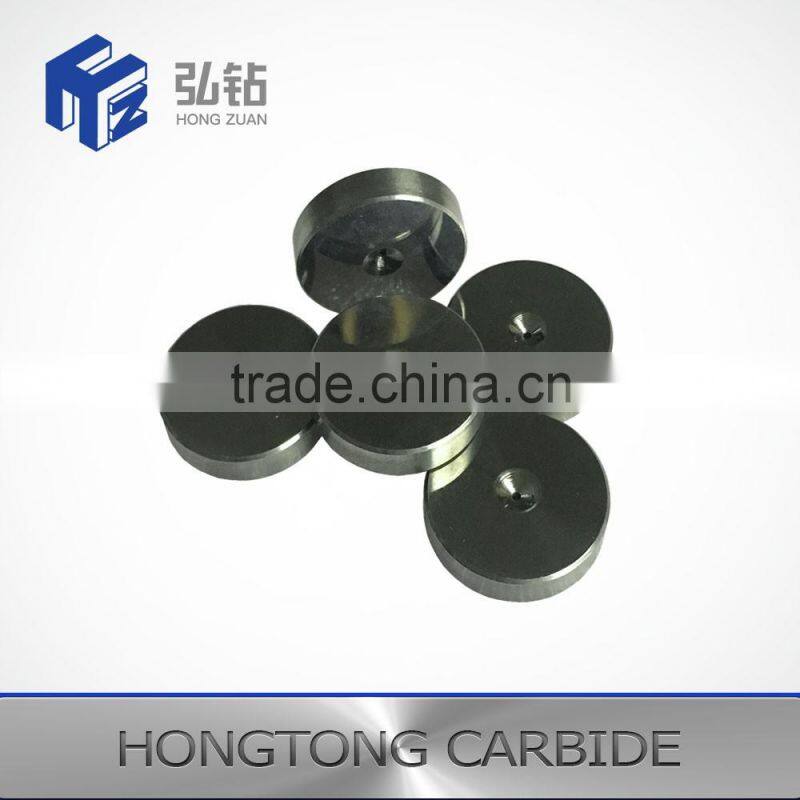

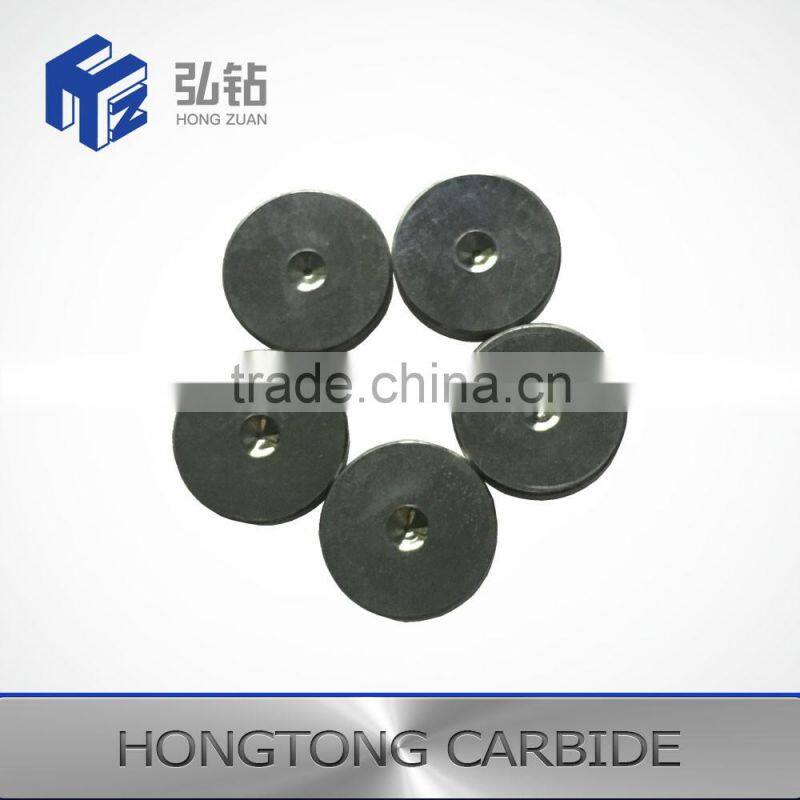

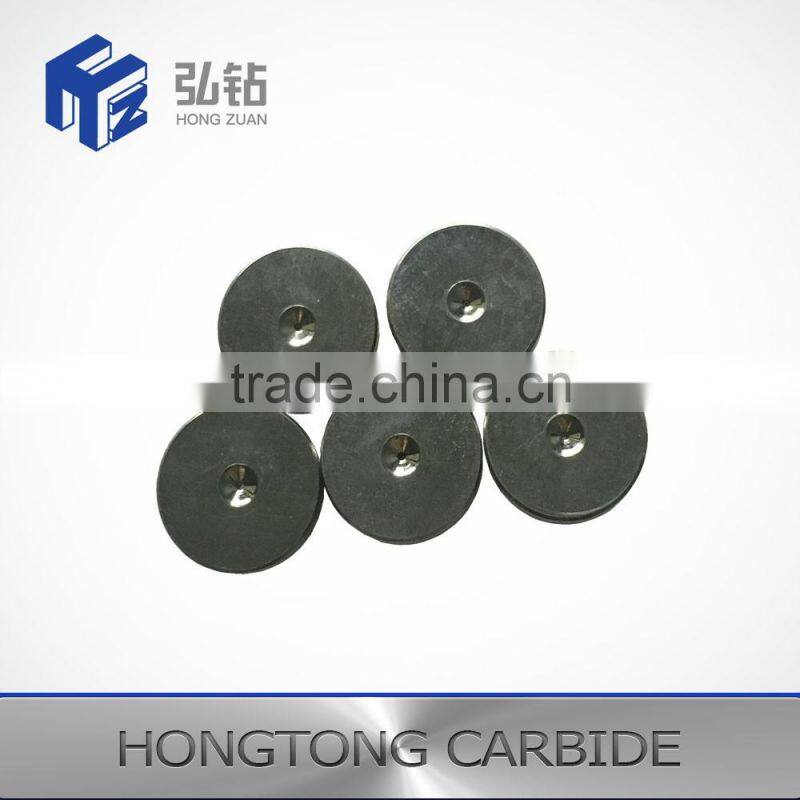

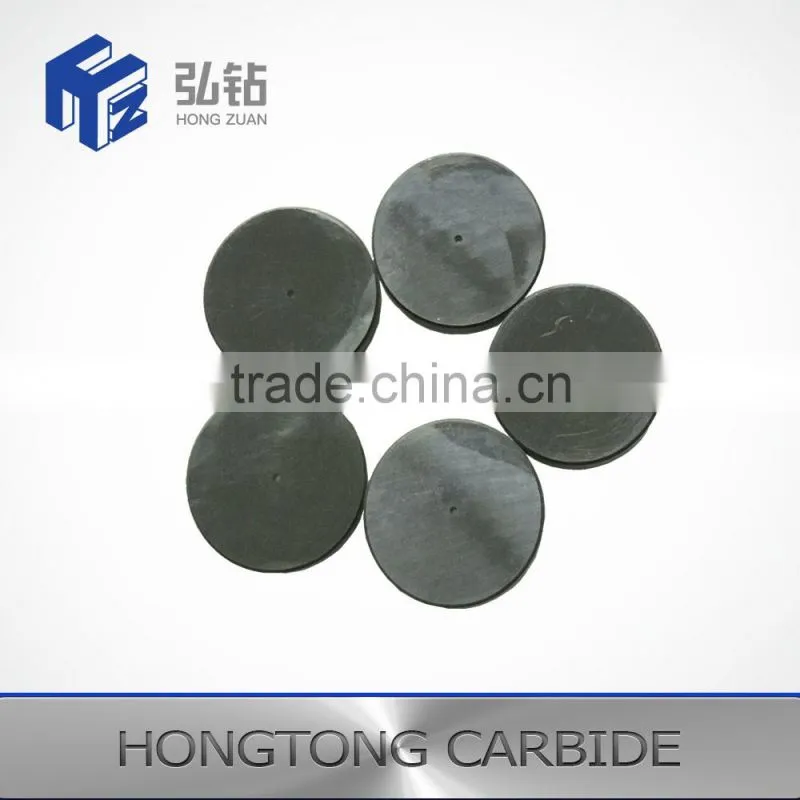

Finished Circular Plate Hard Alloy Nozzle of Cemented Carbide
Features of Tungsten carbide nozzle
Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance.
Application:
They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.
Free smaple was available!
Mains Grade for Tungsten carbide nozzle
Grade No. | Density (g/cm³) | Hardness (HRA) | T·R·S (MPa) | Application Recommended |
| YG4C | 45.00 | 89.5 | 1800 | Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG6 | 15.80 | 89.5 | 1700 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8 | 14.70 | 88.5 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG8C | 14.70 | 88.0 | 2300 | Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
| YG9C | 14.50 | 87.0 | 2400 | Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG11C | 14.40 | 86.5 | 2450 | Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
| YG13C | 14.30 | 86.0 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG15 | 14.00 | 86.5 | 2500 | It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
| YG16 | 14.10-14.30 | 87.5 | 2400 | It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
| YG20 | 13.40-13.70 | 85.0 | 2254 | Mainly for the stamping dies used in the conditions of heavy impact load and large strees |
ZhuZhou HongTong Tungsten Carbide Co., Ltd., located at Liyu Industrial Park, Zhuzhou National High-tech Development Zone, is a high-tech joint-equity enterprise integrating R&D, production and marketing of cemented carbide series products.
The company sets up an independent production and R&D base, covering a total area of 7,000m2 and a plant area of 4,000m2. There is a group of experienced technical personnel and a staff of 80 people including 5 engineers, 8 assistant engineers, and 29 people having college degree or above. The company mainly produces cemented carbide drawing dies, cold heading dies, mining tools, sealing rings, and other nonstandard products, wherein the cemented carbide drawing dies and cold heading dies take a leading position in the industry, and the bore of wire-drawing die can be minimized to 0.1mm, deeply popular with customers.
