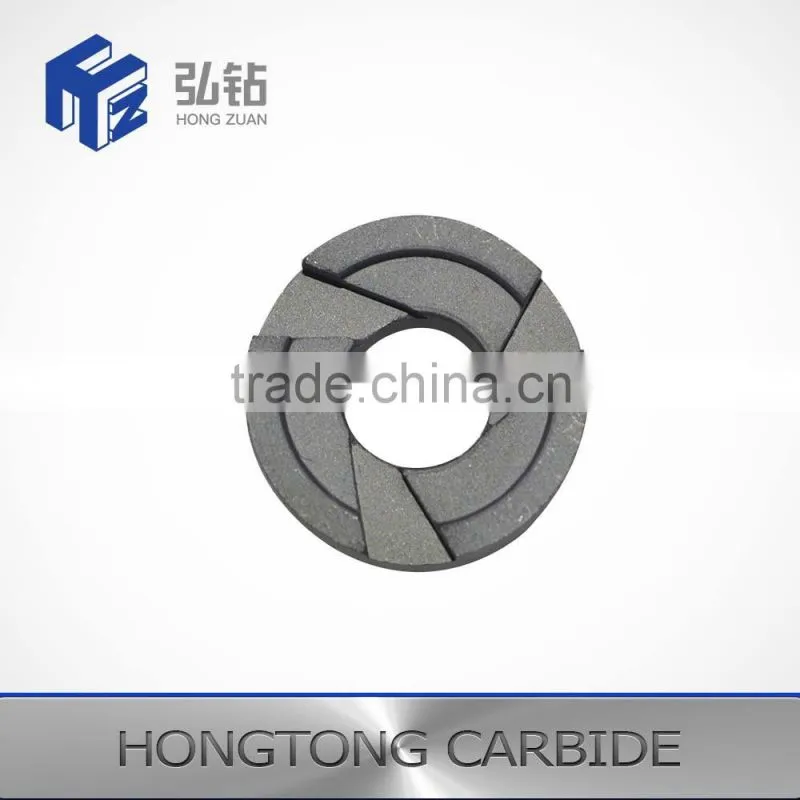

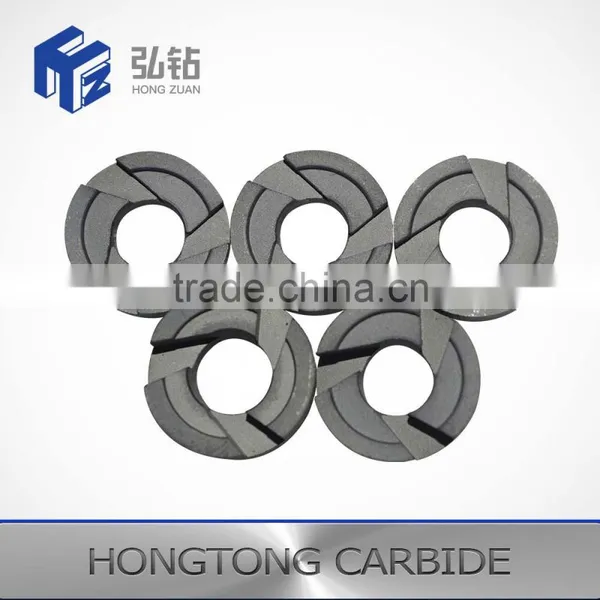

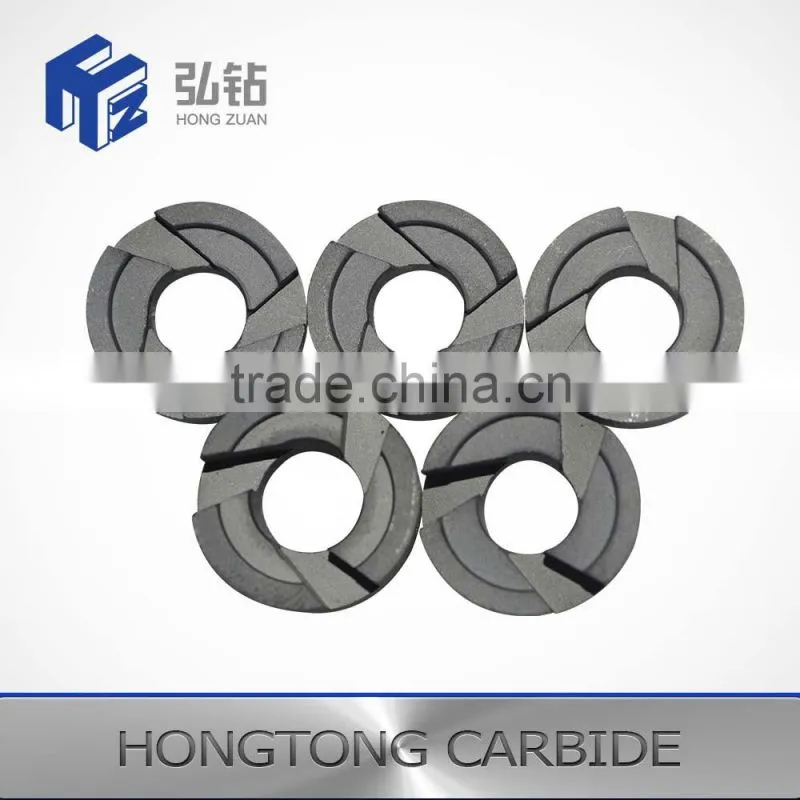

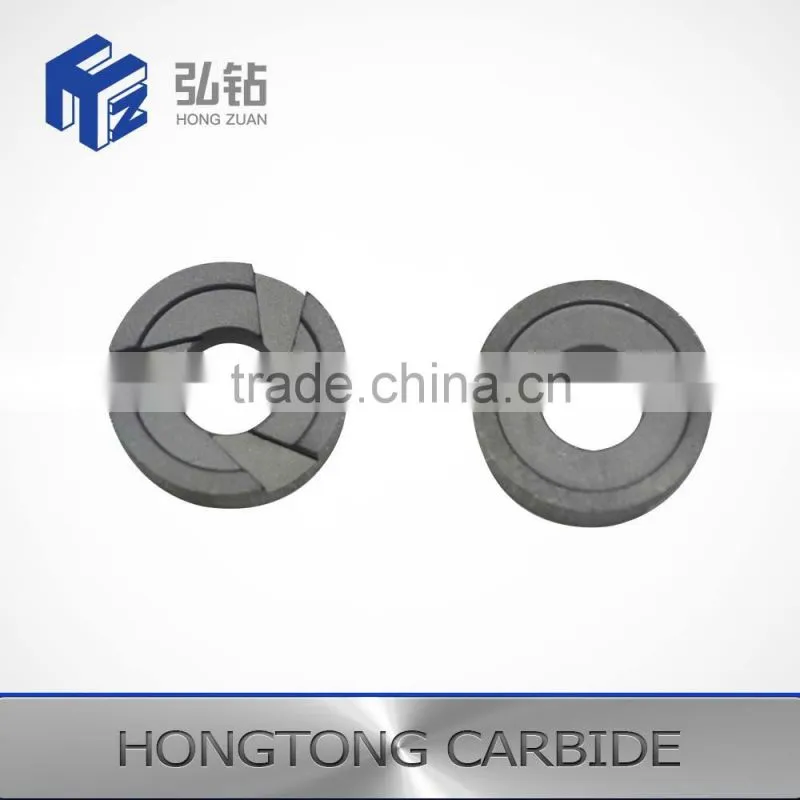

Tungsten carbide TC Three way swirl chamber
TC 3 Way Swirl chamber can be purchased from us.
They are traditionally made of tungsten carbide
Salient Features :
- Fine grain size carbide with high hardness.
- Durable
- Compact design
Applications :
- Milk industry
- Powder industry
- Shot blasting machine.
Grades and Applicaton recommended:
Grade | Equivalent | Density | HRA | T.R.S | Application |
To ISO | (g/cm3) | (Mpa) | |||
YG3X | K05 | 14.9 | ≥91.5 | ≥1300 | For drawing non-ferrous metal wire and stainless steel wire etc. |
YG6 | K10 | 14.75-15.1 | ≥89.5 | ≥1520 | For drawing steel ,nonferrous alloy bars of less than dia 20mm under more stress and also for drawing tubes of less than dia 10mm. |
For drawing steel and nonferrous wire or bars of less than dia 6mm under not so much stress. | |||||
YG6X | K10 | 14.8-15.1 | ≥91.0 | ≥1420 | |
YG8 | K20-K30 | 14.6-14.9 | ≥89. | ≥1470 | For drawing steel and nonferrous bars and tubes,Also for manufacturing mechanical parts, tools and wear parts. |
For fabricating drawing dies of steel tubes and rods under high compreesibility ratio; punching, stamping, forging tools under large stress. | |||||
YG11 | 14.4 | ≥88.5 | ≥2420 | ||
YG15 | 13.9-14.2 | ≥86.5 | ≥2060 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils ,drilling and punching and impacting dies. | |
YG20 | 13.4-13.8 | ≥83.5 | ≥2480 | For making punching and impacting dies for watch parts and musical instrunments springs, batteries shells and tooth paste shells, etc,Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc. | |
YG20C | 13.4-13.8 | ≥82 | ≥2480 | For making cold heading and cold punching and impacting dies for standardized parts, bearing s, bullet head and shell.etc. | |
YG20D | 13.4-13.8 | ≥82 | ≥2300 | For making cold heading and cold punching and impacting dies for standardized parts, bearing s, bullet head and shell.etc. | |
YSN30 | 13.9-14.9 | ≥87 | ≥1900 | It is a demagnetized cemented carbide suitable for manufacturing forming tools in industries of magnetism. |
All the produces must be inspected strictly with the ultrasonic and only those haven’t any harm such as pore can be shipped out.
- OEM & ODM are welcomed.
- Customized design is available
- Reply your enquiry in 24 working hours
- Experienced staffs answer all your questions in fluent English.
ZhuZhou HongTong Tungsten Carbide Co., Ltd., located at Liyu Industrial Park, Zhuzhou National High-tech Development Zone, is a high-tech joint-equity enterprise integrating R&D, production and marketing of cemented carbide series products.
The company sets up an independent production and R&D base, covering a total area of 7,000m2 and a plant area of 4,000m2. There is a group of experienced technical personnel and a staff of 80 people including 5 engineers, 8 assistant engineers, and 29 people having college degree or above. The company mainly produces cemented carbide drawing dies, cold heading dies, mining tools, sealing rings, and other nonstandard products, wherein the cemented carbide drawing dies and cold heading dies take a leading position in the industry, and the bore of wire-drawing die can be minimized to 0.1mm, deeply popular with customers.
If anything we can help, please feel free to contact us.
