Home > Products > Carbide brazed tips > knife-lock carbide knives

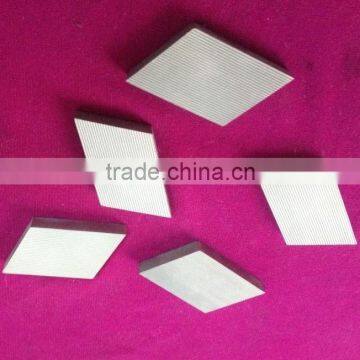

knife-lock carbide knives
US$ 45 - 60
/ Kilogram
5 Kilograms(Min. Order)
- Any port in china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Lipai | |
| Model Number | yg6,yg8,yt14,P30,yg15 | Type | Hand Tool Parts |
Product Description
Type B2
Application for making forming tools for machining concave radii and forming turning tools for railway wheels.
Type as below: B208, B210,B212,B214,B216,B220,B225,B228
Grade as below: YG3, YG6A,YG6X,YD201,YG6,YG8,YG15/14, YT5,YW1, YW2,YS25,YC40,YC45,YS8,YT26,YM40
| Brazed turning inserts | ||||||||
| Grade | ISO Code | Performance | Performance&application recommended | |||||
| Density | Hardness | Bend Strength | ||||||
| G/Cm3 | HRA | N/mm2 | ||||||
| YG3 | K05 | 15 | 90.5 | 1300 | Suitable for finishing of cast iron and nonferrous metal. | |||
| YG6X | K10 | 14.8 | 91 | 1560 | The finishing&semi-finishing of cast iron and nonferrous metals and also | |||
| for the machining of manganese steel and hardening steel. | ||||||||
| YG6A | K10 | 14.7 | 91.5 | 1510 | ||||
| YG6 | K15 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the | |||
| YG8 | K20 | 14.6 | 89 | 1840 | milling of cast iron and low-alloy steel. | |||
| YW1 | M10 | 13 | 91 | 1290 | Suitable for finishing and semi-finishing of stainless steel and | |||
| alloy steel. | ||||||||
| YW4 | M10 | 12.3 | 92 | 1390 | conventional alloy steel. | |||
| YW3 | M10 | 12.9 | 92 | 1390 | ||||
| YW2 | M20 | 12.9 | 90.5 | 1460 | The grade can be used for the semi-finishing of stainless steel and low- | |||
| alloy steel and it is mainly used for the machining of railway wheel hubs. | ||||||||
| YT15 | P10 | 11.3 | 91 | 1300 | Suitable for the finishing and semi-finishing for steel and cast steel with | |||
| YT05 | P10 | 12.6 | 92.5 | 1260 | a moderate feed rate and rather high cutting speed. | |||
| YT14 | P20 | 11.4 | 90.5 | 1400 | Suitable for the finishing and semi-finishing for steel and cast steel . | |||
| YS14 | P20 | 11.4 | 91.5 | 1550 | ||||
| YS25 | P20 | 13 | 90.5 | 1780 | YS25 is specially used for the milling of steel and cast steel. | |||
| YT5 | P30 | 12.8 | 89.5 | 1560 | Suitable for the heavy duty rough turning of and cast steel with a big feed | |||
| rate at a medium and low speed under unfavorable working conditions. | ||||||||
| YT26 | K05-K10/M20 | 14 | 92.5 | 1600 | Suitable for fine and semi-finishing machining of chilled cast iron and non | |||
| ferrous metals with good performances of the mosetting and wear resistance | ||||||||
| ,also suitable for turning and milling of manganese steel and hardened steel. | ||||||||
| YD201 | K20 | 14.9 | 91 | 1800 | Suitable for semi-finishing and the roughing of cast iron and lisht alloys and also | |||
| for the milling of cast iron and low alloy steel. | ||||||||
| YS8 | M05-M10 | 13.9 | 92.5 | 1720 | It can be used for the finishing of iron based and nickel based high-temperature | |||
| alloys and high -strength steel and it can also be used for the finishing of chilledcast iron, heat resistant | ||||||||
| sfainless steel, high manganese steel and bardend steel. | ||||||||
| b60 | M10 | 12.8 | 92.5 | 1500 | Mainly used for threading of petroleum pipe, also used for fine machining of | |||
| hardened steel. | ||||||||
| YM20 | M20 | 13 | 91 | 1750 | ||||
| YC30S | P30 | 12.9 | 90 | 1600 | Used for the milling of steel, cast steel and alloy steel. | |||
| YC40 | P35-P40 | 12.9 | 91 | 2200 | Suitable for the heavy duty turning of steel and cast steel with a big feel rate under | |||
| unfavorable working condifion. | ||||||||
| YM40 | P40 | 12.75 | 90 | 2100 | Suitable for the heavy duty turning of steel and cast steel with a big feel rate and | |||
| YC45 | P40 | 12.75 | 90 | 2300 | for face milling. | |||
