Home > Industrial Equipment & Components > Universal Hardware Parts > Tungsten Carbide Coal Excavation Auger Tips
US$ 1 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
LIPAI
Model Number:
YG6,YG8,YG6X,YG16, YG20
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hard Metal Round Nose Tool Bit for Drilling ToolUS$ 40 - 45MOQ: 5 Kilograms -
K0 Type Tungsten Carbide Rock Drill Bits for Rock Drilling ToolsUS$ 40 - 45MOQ: 5 Kilograms
-
Sintered Abrasive Drill BitUS$ 40 - 45MOQ: 5 Kilograms
-
Tungsten Carbide Punching HeadUS$ 40 - 45MOQ: 5 Kilograms
-
Tungsten Carbide Road Milling Bit TipsUS$ 45 - 50MOQ: 5 Kilograms
Place of Origin
Hunan, China
Brand Name
LIPAI
Model Number
YG6,YG8,YG6X,YG16, YG20
Type
Construction Tool Parts

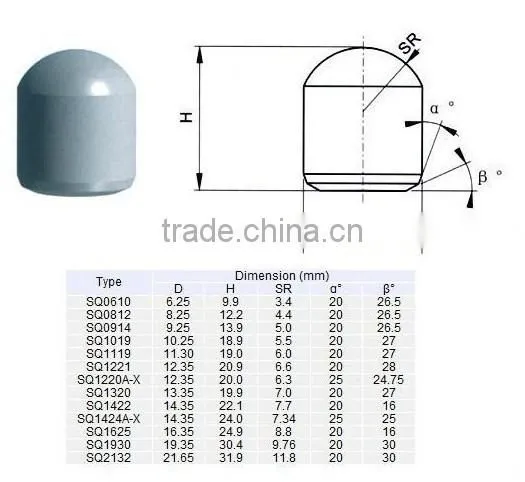

Tungsten carbide coal excavation auger tips
Application:
Tungsten carbide brazed tips has the characters of high wear resistance and good compressive properties. They are widely used for cutting wood, metal, or other hard materials, and also used for turning, milling and thread of cast iron or steel. Further more, they're widely used as agricultural machines accessories.
Properties.
--Easy to weld, no crack
--Superior wear resistance
--High hardness and strength
--OEM & ODM are welcomed
--Fast delivery and after-sale service timely
Grades recommend:
| Grade/ Properties / Application | ||||||||
| Grade | Equal to ISO Category Number | Performance | Performance&application recommended | |||||
| Density | Bend Strength | Hardness | ||||||
| G/Cm 3 | N/mm 2 | HRA | ||||||
| YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting n | |||
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | ||||
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and bits medium sized percussion | ||||
| YG8C | 14.8 | 2400 | 88.5 | and as the inserts of rotary prospecting bits to cut soft and | ||||
| medium hard formations. | ||||||||
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil | ||||
| cone bits and scraping knife bits,used in coal geological prospecting, | ||||||||
| mining and oil well boring. | ||||||||
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. | |||
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | ||||
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. | |||
| YG8 | K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. | |||
| YG10X | 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance,Used for processing hard | ||||
| wood, veneer board,PCB,PVC and metals. | ||||||||
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmental powders. | ||||
| YG11C | K40 | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium | |||
| hard, hard and very hard formations. | ||||||||
| YG15 | K40 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubesand rods under high | |||
| compressibility ratio;punching,stamping,forging tools under large stress. | ||||||||
| YG15C | 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. | ||||
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance, hot&forging dies etc. | ||||
| YGH40 | 13.5-13.9 | ≥2450 | ≥83.0 | Mainly for making hot dies. | ||||
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical | ||||
| instruments, battery jars,small sized steel balls,screws,screw caps. | ||||||||
| YG18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies,hot-press forging dies and rollers. | ||||
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. | ||||
| YG22C | 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. | ||||
| YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. | ||||
| YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. | |||
| YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. | |||
| YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. | |||
Company info:
Zhuzhou Hongtong, a professional Chinese manufacturer of tungsten carbide products. We supply tungsten carbide ball/seat, seal ring,plate,strip,nozzle,rod,brazed tips,mining tips,inserts,disc cutter,wire drawing die,cold heading die,and so on. With more than 10 years experience, we can provide you more than you can image.
Contact:
Shelly Cai
Oversea sales manager
Mobil: 86 18874160294
Web:
Add: No.86, Mingri Rd, Tianyuan Dist,Zhuzhou,Hunan,China.
Postal:412007
