Home > Products > button inserts > carbide spherical type button inserts for drill bit

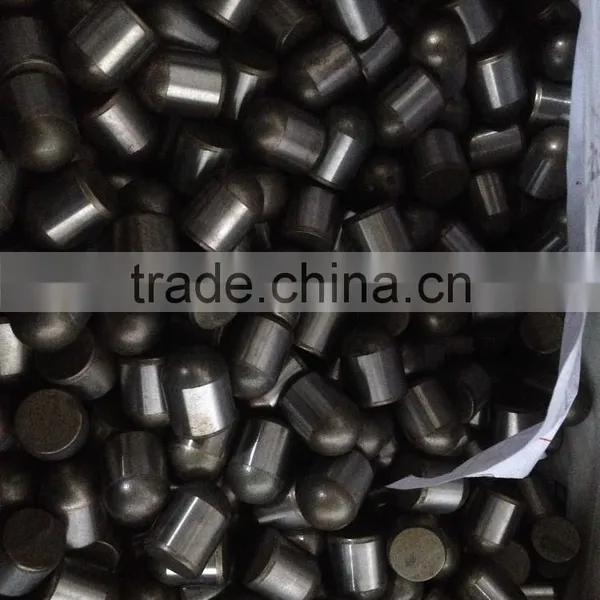

carbide spherical type button inserts for drill bit
US$ 56 - 65
/ Kilogram
5 Kilograms(Min. Order)
- Any port in china
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Lipai | |
| Model Number | YK05,YK20,YG8,YG11C,YG8C, | Type | Core Drill Bit | |
| Material | Tungsten Carbide | Use | Well Drilling |
Product Description
The mining tungsten carbide insert are mainly applies in the mine. The petroleum, geological, in the urban road construction excavation, mining ,the drilling and so on . We could processing based on your drawing !
| Carbide mining bits | |||||||
| Grade introduction | |||||||
| Grade | Performance | Performance&application recommended | |||||
| Density | Bend Strength | Hardness | |||||
| G/Cm3 | N/mm2 | HRA | |||||
| YG4C | 15.1 | 1800 | 90 | Mainly used as small buttoon ns for percussion bits to cut soft and medium | |||
| hard formations. | |||||||
| YG6 | 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil cone bits and | |||
| scraping knife bits,used in geological prospecting,coal mining and oil well | |||||||
| boring. | |||||||
| YG8 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. | |||
| YK05 | 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and medium sized percussion bits and as | |||
| YG8C | 14.8 | 2400 | 88.5 | the inserts of rotary prospecting bits to cut soft and medium hard formation. | |||
| YK15 | 14.6 | 2450 | 87.6 | Suitable to strips, conical buttons for rotary percussion-resistant,geological | |||
| prospectioin buttons, cut soft and medium hard formation. | |||||||
| YK20 | 14.4 | 2500 | 86.8 | Primarily for the buttons and inserts of rotary percussion bits to cut | |||
| medium-hard and very hard formations. | |||||||
| YK25 | 14.4 | 2550 | 87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut | |||
| medium-hard and very hard formations. | |||||||
| YG11C | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut | |||
| medium-hard, hard and very hard formations. | |||||||
| YG13C | 14.2 | 2850 | 86 | Primarily for the buttons of tricone bits and inserts or rotary percussion bits to | |||
| cut hard and very hard formations. | |||||||
| YG15C | 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. | |||
