19250 Bottle-cleaning Rotating Nozzle

 19250 bottle-cleaning rotating nozzle

Design features:

1. The 19250-type continuous rotating cleaning nozzle is driven by the reacting force of the liquid, with no need for external motors or gears.
2. The 19250-type nozzle is compact, able to get through a 26mm diameter hole.
3. The 19250-2 type nozzle is characterized by two fan-shaped spray tanks on the side, producing a self-rotation force and the side jet.

4.The 23240-3 type nozzle is installed with a top opening to provide complete spherical spray coverage.
5. The nozzle is made of whole stainless steel(also can choose brass), plus PTFE bushings, with a maximum temperature of 177 °C

6. The permitted range of pressure is 0.7 bar to 13.8 bars.
7. The inlet connection size is 1 / 2 inch internal thread.
8. The biggest tank that it can clean is of 1.0 meter diameter.

The spray pattern of the19250-type bottle washing nozzle:

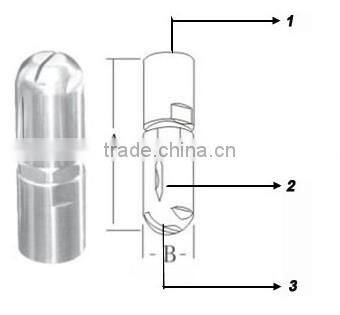

19250-2, -3 bottle-cleaning rotating nozzle

1. Female connection (1 / 2 inch)
2. The 19250-2 type nozzle has two fan-shape jet tanks on its side, without any tanks on its top.
3. The 19250-3 has a fan-shape spray tank on the top, plus two fan-shaped jet tanks on the side, providing complete spherical coverage.


The size and weight of the 19250-type bottle-cleaning rotating nozzle:

Applications

Agitated reactor cleaning

Pharmaceutical barrel cleaning

Dry powder tank cleaning

Freeze dryer cleaning

Sterilization tank cleaning

Milk storage tank cleaning

Headbox cleaning

Mixing tank cleaning
