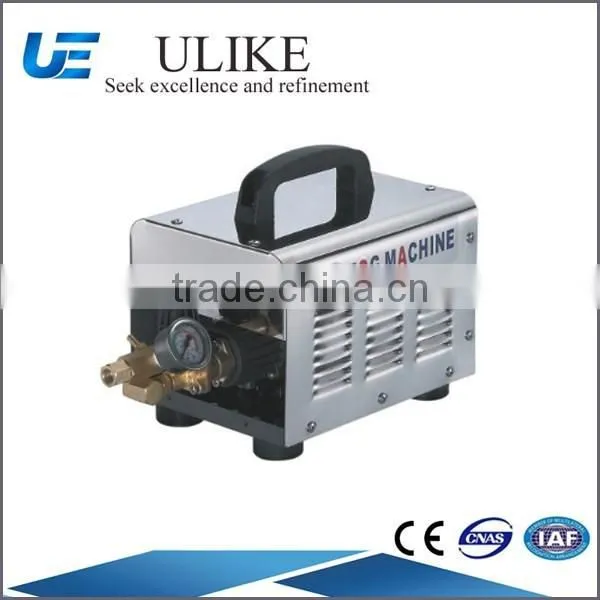

3L/min 800W Outdoor Garden Misting Fog Machine

Features:

1. Pump Type: Axial Pump(2plungers)
2. Flow Rate:4L/min
3. Power: 750W, single phase(can do different voltage and rate)

4.Drop the Temperature: 4-10°C

5.Spray Effective Area: 200M2

6.Diameter of Fog: < 7μm

7.Spray Sustainable Time:12 hours

8. Motor Speed: 1400RPM
9. Tubing Size: 3/8" (9.52mm)

10.Working Pressue: 60bar

11. Accessories List: 60m hose, 65 nozzles and 66 connectors

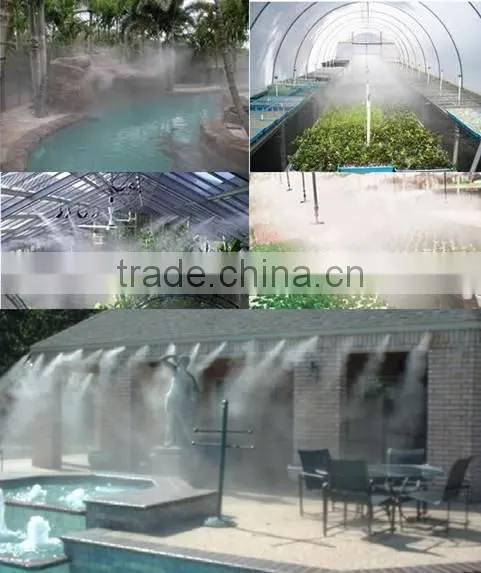

Functions:

1. Cooling

Residential cooling, outdoor cooling, commercial place cooling

2. Humidification

Industrial, agricultural and horticultural: green house, garden, livestock farming

3. Dedusting and Deodorization

Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process

4. Insect Control

Please use water-soluble chemical to kill insect.

Mist system :

Except fog machine ,we can also supply all the accessories separately, such as nozzle, connectors, hose and hose cutter.

1. Fog Nozzle:

Orifice diameter: 0.1mm up to 0.5mm, usually we offer 0.15mm

Working pressure: 60bar

Body material: 304ss, brass and 316ss

Orifice material: ceramic & ss

2. 3/8 Brass Connector:

Material: brass

Nozzle thread: 10/24

Tubing Size: 3/8" (9.52mm)

3. PE Hose:

Outer diameter: 3/8"
