Specifications
Quick couple high pressure nozzle tips1) Colorful plastic cap ,metal tip
2)widly used on washing machines
High pressure washing flat fan spray nozzles
Features;
Pressure Washer Spray Nozzle can be identified by the nozzle "number", a four or five digit number that is stamped on the nozzle, which indicates the spray angle and orifice size. In all cases the first two digits of the nozzle number indicate the spray angle (disperse) in degrees.
EXAMPLE: 00 is 0 degree, 15 is 15 degree, 25 is 25 degree and 40 is 40 degree. The last two digits of the nozzle number indicate the orifice size, a standard industry designation. EXAMPLE: 06 is a 6.0 orifice, 55 is a 5.5 orifice. These numbers correspond to the actual dimensions.

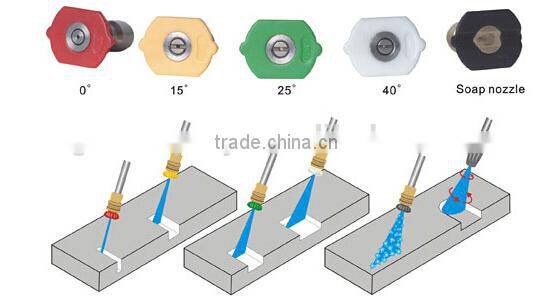

These pressure washer nozzles are color coded to indicate what pattern (degree) of fan spray they produce.

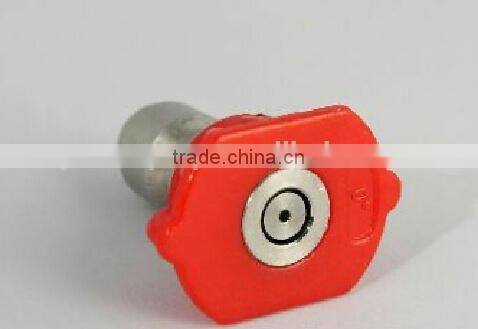

The red tip is the zero degree nozzle - these pressure washer nozzles produce a pencil point pattern, there is no fan created so this is not the tip to use when cleaning coverage is desired. The red tip does deliver the highest impact as it concentrates the pressure into the smallest area. Avoid damaging wood or other fragile surfaces. This is an ideal tool for cleaning under the deck of a lawnmower, removing caked on mud from equipment, cleaning stains from concrete, masonry, steel and aluminum even removing the grass from cracks in the sidewal

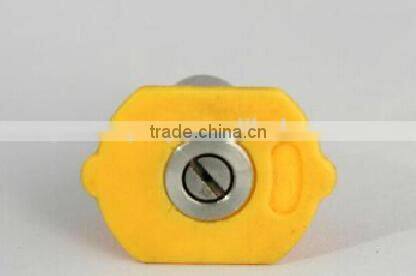

The yellow tip creates a 15 degree fan pattern.These pressure washer nozzles are referred to as chiseling tips. Held at a 45 degree angle you can use it like a scraper to remove peeling paint or mildew. It is also used for other tasks where breaking the bond is harder than average. Of your different pressure washer nozzles You will find yourself using this one the most often when the task is tough. This is the only situation I know where you'll find that when the going gets tough the tough gets yellow. The yellow tip creates a 15 degree fan pattern.These pressure washer nozzles are referred to as chiseling tips. Held at a 45 degree angle you can use it like a scraper to remove peeling paint or mildew. It is also used for other tasks where breaking the bond is harder than average. Of your different pressure washer nozzles You will find yourself using this one the most often when the task is tough. This is the only situation I know where you'll find that when the going gets tough the tough gets yellow.

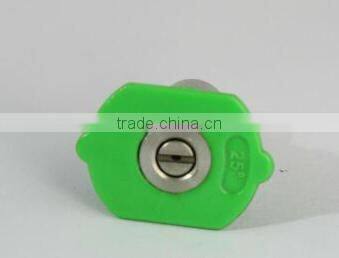

The green tip produces a 25 degree fan pattern. This is a wash tip. These pressure washer nozzles are the ones to use when breaking the bond between the grime and substrate is reasonably easy. These can also be used for sweeping leaves or debris from flat surfaces or curbing. These pressure washer nozzles have the widest variety of applications as the fan degree allows for good impact pressure and cleaning coverage.
The white tip is rhe 40 degree fan tip. The wider dispersion of the impact pressure limits these pressure washer nozzles to rinsing and delicate washing. These are the tips to use for washing/rinsing glass or washing vehicles. These are great tips for wooden decks and all delicate substrates
