Help CenterBelt & Disc Sander
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
eagle
Model Number:
BS2315/3015
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
eagle
Model Number
BS2315/3015
Power Source
Electricity
Variable Speed
No
Rated Voltage
230V
Rated Input Power
370W OR 550W
Frequency
50HZ OR 60HZ
No-Load Speed
1700
Sand Pad Size
1219x152
Weight
58KG OR 95KG
Specifications

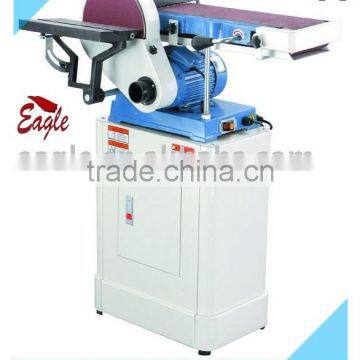

Belt & Disc SanderBelt size: 1219x152mm
Belt speed: 1240smpm
Disc Size: 228.9~305 mm Dia.
Disc speed: 1700 rpm
| Belt & Disc Sander | |||
| Features | / |
1.Powerful 3/4HP motor powers both sanders with plenty of power to complete wven heavy duty sanding jobs. 2.The belt sander platen features a graphite sheet which helps the unit run cooler giving the machine and sanding belt much longer life. 3.Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces of mitered angles;allow belt sander to be used vertically,horizontally or anywhere in between. 4.The quick change belt tension lever allows you to change belt quick. 5.One-piece formed steel heavy-duty closed stand provides solid support. |
|
| Model | BS 2315 | BS 3015 | |
| Motor | 1/2HP(370w) | 3/4 HP(550w) | |
| Speed | Belt | 1240SMPM | 670SMPM |
| Disc | 1700RPM | 1700RPM | |
| Abrasive Belt | Length | 1219mm | 1219mm |
| Width | 152mm | 152mm | |
| Disc Diameter | Φ228.9mm | Φ305mm | |
| Table Size and Tilt | Belt Table | / | 419mm x 177mm Tilt |
| 45° down and 20° up | |||
| Disc Table | 298mm x 152mm Tilt | 317mm x 177mm Tilt | |
| 45° | 45° down and 20° up | ||
| Dust Collection Port | 102mm | 102mm | |
| Overall Dimensions(mm) | 700x600x1120 | 830x800x1350 | |
| Weight(kgs) | 58 | 95 | |
| Item No. | 421124 | 421126 | |
| Standard Accessories | Sanding Belt, Miter Gauge, Abrasive Disc | ||
