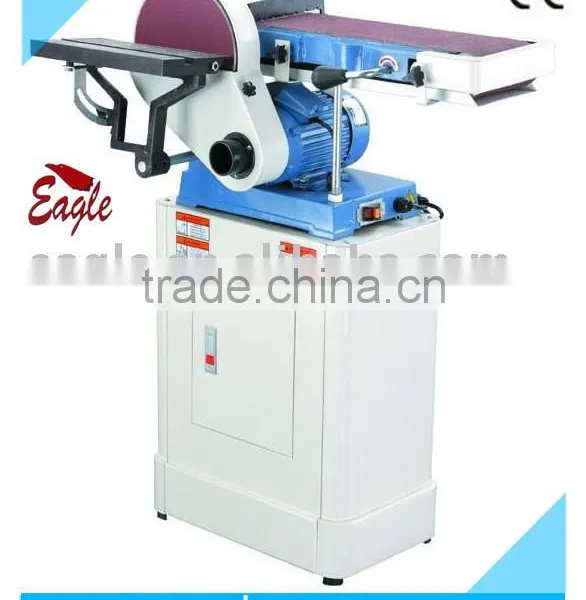

BS2315&BS3015 Belt & Disc Sander

Name: BS2315&BS3015 Belt & Disc Sander
Brand: EAGLE
SKU: 140925136
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

EAGLE

Model Number:

BS2315/3015

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name EAGLE

Model Number BS2315/3015

Power Source Electricity

Variable Speed No

Rated Voltage 230V

Rated Input Power 370W OR 550W

Frequency 50HZ OR 60HZ

No-Load Speed 1700

Sand Pad Size 1219x152

Weight 58KG OR 95KG

Specifications

BS2315&BS3015 Belt & Disc Sander
1.Belt size: 1219x152mm
2.Belt speed: 1240smpm
3Disc Size: 228.9~305 mm Dia.

BS2315&BS3015 Belt & Disc Sander

Specification:

Belt & Disc Sander
Features		/	1.Powerful 3/4HP motor powers both sanders with plenty of power to complete wven heavy duty sanding jobs. 2.The belt sander platen features a graphite sheet which helps the unit run cooler giving the machine and sanding belt much longer life. 3.Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces of mitered angles;allow belt sander to be used vertically,horizontally or anywhere in between. 4.The quick change belt tension lever allows you to change belt quick. 5.One-piece formed steel heavy-duty closed stand provides solid support.
Model		BS 2315	BS 3015
Motor		1/2HP(370w)	3/4 HP(550w)
Speed	Belt	1240SMPM	670SMPM
	Disc	1700RPM	1700RPM
Abrasive Belt	Length	1219mm	1219mm
	Width	152mm	152mm
Disc Diameter		Φ228.9mm	Φ305mm
Table Size and Tilt	Belt Table	/	419mm x 177mm Tilt
			45° down and 20° up
	Disc Table	298mm x 152mm Tilt	317mm x 177mm Tilt
		45°	45° down and 20° up
Dust Collection Port		102mm	102mm
Overall Dimensions(mm)		700x600x1120	830x800x1350
Weight(kgs)		58	95
Item No.		421124	421126
Standard Accessories		Sanding Belt, Miter Gauge, Abrasive Disc
