Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > China Universal Turret Milling Machine

China Universal Turret Milling Machine

Name: China Universal Turret Milling Machine
Brand: Eagle
SKU: 140924718
Availability: InStock

China Universal Turret Milling Machine thumbnail-1

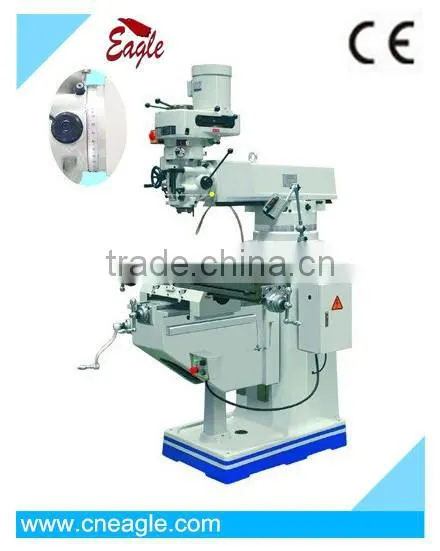

China Universal Turret Milling Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

Eagle

Model Number:

UM25

Contact Supplier Request Quote Chat Now

Eagle Industries, Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name Eagle

Model Number UM25

Type Other, Universal, Universal

CNC or Not Normal

Voltage 380~415V

Power(W) 2.25~5KW

Dimension(L*W*H) 1730X1750X2100

Weight 1400~1600kg

Certification CE

Warranty one year

Specifications

UM 25 series Universal Turret Milling Machine
1.CE certificate
2. ISO40; R8.ISO30
3.Easy operation
4.Perfect pai

UM 25 series Universal Turret Milling Machine

1, UM 25 : rectangular guideway is adopted both on Y-and Z-axis.The guideway on saddle is lined with TF weatable material.Which makes the machine stably and rigidly. Also makes it beautiful and easy to operate.

2, UM 25A : rectangular guideway on Y-axis and55º swalloutail guideway on Z-axis.The guideway on saddle is lined with TF wearable material. Adopted strengthen rib on both sides of the columb, that makes the machine rigidly and beautiful.

3, UM 25B : rectangular guideway on Y-axis and55º swalloutail guideway on Z-axis.The guideway on saddle is lined with TF wearable material. Adopted strengthen rib on both sides of the columb, that makes the machine rigidly and beautiful

4, UM 25C : fixed struture is used to connect the mill head without addapter.Which makes the cut intensity well. Rectangular guideway on Y-and Z-axis makes the machine stably and rigidly.The guideway on saddle is lined with TF wearable material.

5, UM 25D : rectangular guideway is adopted both on Y-and Z-axis.The guideway on saddle is lined with TF weatable material.Which makes the machine stably and rigidly. Also makes it beautiful and easy to operate.

Model	Unit	UM 25	UM 25A	UM 25B	UM 25C	UM 25D
Table size	mm	254×1270(10''×50'') 254×1370 (10''×54'')
Long travel	mm	850/950
Cross travel	mm	420	400	400	420	420
Vertical travel	mm	420
T-slot NO.and size	mm	3×16
Ram travel	mm	470
Distance from spindle nose to table surface	mm	0~420
Spindle hole taper	MT	(standard):R8 (optional):ISO30/40			(standard):ISO40
Spindle travel	mm	127
Spindle speed	Rpm	standard:shiftgrade 50HZ 65~4500 60HZ 80~5440 optional: wariable65~4500			standard:shiftgrade 50HZ 65~4500 60HZ 80~5440 optional: wariable 65~3750
Auto quill feed	mm/rev	threesteps: 0.04(0.0015") 0.08(0.003") 0.15(0.006")
Spindle motor	kw/HP	2.25/3			3.75/5
Head swivel	º	90
Head tilting	º	45			FIX	45
One mille rper case	mm	1516×1550×2080
Two mille rper case	mm	1650×1790×2170
Three mille rper case	mm	1650×2285×2235
Gross weight	kg	1550	1380	1420	1590	1590
Item NO.		131030 131031	131040 131041	131050 131051	131060 131061	131070 131071
Standard accessory	Optionala ccessory
Draw bar	Digital readout			R8 collet chuck and collets
Electrical box	Machine vise			Oil colledting plate
Working lamp	Power feed unit			Plastic splash guard
Handle oil pump	Universal clamping apparatus			Cooling system
Tools and tool box	NT30.NT40collet chuck			Gear box power feed
