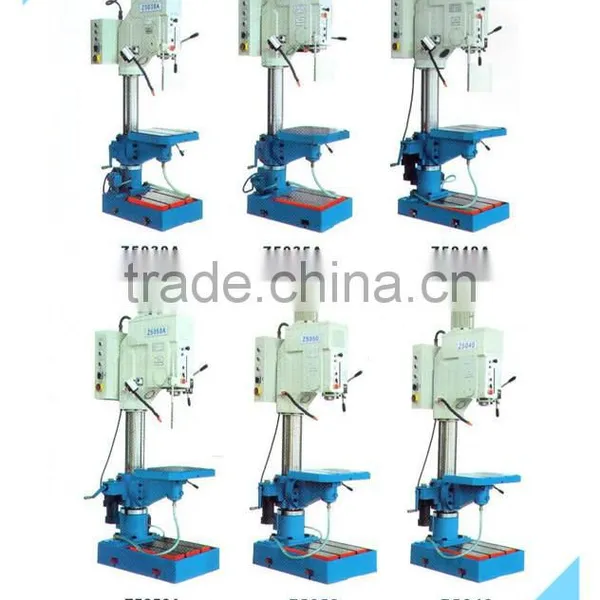

ZA Series Vertical Drilling Machine

ZA Series Vertical Drilling Machine thumbnail-1
ZA Series Vertical Drilling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Eagle Industries, Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Shandong, China
Brand Name EAGLE
Model Number ZA series Vertical Drilling Machine
Certification CE
After-sales Service Provided No overseas service provided

Specifications

ZA series Vertical Drilling Machine
Change speed with gears and operate easily
High spindle speed and wide speed range

ZA series Vertical Drilling Machine

Specification



STANDARD ACCESSORIES
Key type drill chuck;
Connecting bar of drill chuck;
Short sleeve for taper shank tool;
Wedge for taper shank tool
Foundation bolt.



           MODEL Z5025A Z5025S Z5030A Z5030S Z5035A Z5040A Z5050A

SPECIFICATIONS
Max. Drilling Capacity (mm) 25 25 30 30 35 40 50
Max. Tapping Capacity (mm) M16 M16 M18 M18 M20 M24 M24
Distance from spindle centre to column generatrix (mm) 315 315 315 315 330 360 360
Max. distance from spindle nose to worktable (mm) 520mm 520mm 520mm 520mm 610mm 600mm 600mm
Max. distance from spindle nose to base worktable (mm) 1080mm 1080mm 1080mm 1080mm 1150mm 1215mm 1205mm
Max. travel of spindle (mm) 135mm 135mm 135mm 135mm 150mm 180mm 180mm
Max. traverse of worktable and bracket (mm) 480mm 480mm 480mm 480mm 540mm 560mm 525mm
Lever rotation angle of worktable and bracket (degree) ±45º ±45º ±45º ±45º ±45º ±45º ±45º
The taper bore of spindle (Morse) 3 3 3 3 4 4 4
Number of spindle variable speed (Number) 12 12 12 12 12 12 12
Range of spindle variable speed (r/min) 70-2600 70-2600 70-2600 70-2600 70-2050 42-2050 45-1865
Number of spindle feed (Number) 3   3   3 4 4
Range of spindle feed (mm/r) 0.1,0.2,0.3   0.1,0.2,0.3   0.1,0.2,0.3 0.07,0.15,0.26,0.4 0.07,0.15,0.26,0.4
Diameter of column (mm) ø125 ø125 ø125 ø125 ø140 ø160 ø170
Effective working dimension of worktable (mm X mm) 374x374 374x374 374x374 374x374 424X424 500 X 370 500 X 370
Effective working dimension of base (mm X mm) 370 X 360 370 X 360 370 X 360 370 X 360 420X380 460 X 450 460 X 450
Dimension of worktable and base T-slot (mm) 2-14 2-16 2-14 2-16 2-14 2-16 2-14 2-16 2-14 2-16 2-14 2-16 2-14 2-16
3-phase AC motor with double speed Power (Kw) 1.1/1.5 1.1/1.5 1.1/1.5 1.1/1.5 1.5/2.2 2.2/2.8 2.2/2.8
Voltage (v) 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440
Rotation speed (r/min) 960/1450 960/1450 960/1450 960/1450 960/1450 960/1450 960/1450
3-phase electrical pump Power (Kw) 0.09   0.09   0.09 0.09 0.09
Voltage (V) 220.380.420.440   220.380.420.440   220.380.420.440 220.380.420.440 220.380.420.440
Flux (L/min) 6   6   6 6 6
Overall dimension (cm) 65x105x195 70x115x215
Net weight/Gross weight (Kg.) 440/500 670/730 730/800 800/860
ITEM NO. 145030 145035 145040 145045 145050 145055 145060
