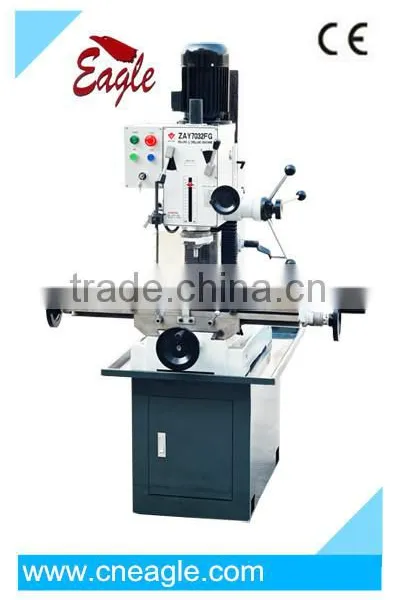

MODEL ZAY7045FG DRILLING & MILLING

Name: MODEL ZAY7045FG DRILLING & MILLING
Brand: EAGLE
SKU: 140924666
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

Used

Place of Origin:

Shandong, China

Brand Name:

EAGLE

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition Used

Place of Origin Shandong, China

Brand Name EAGLE

Model Number MODEL ZAY7045FG DRILLING & MILLING

Type Universal

CNC or Not Normal

Certification CE

Specifications

MODEL ZAY7045FG DRILLING & MILLING

MODEL ZAY7045FG DRILLING & MILLING

Model	ZAY7040FG	ZAY7045FG	ZAY7045L
Max. drill capacity	40mm	45mm	45mm
Max. mill capacity (End;Face)	32mm;80mm	32mm;80mm	32mm;80mm
Swivel angle (perperdicular)	±90°	±90°	±90°
Distance from spindle axis to column surface	284.5mm	284.5mm	280mm
Spindle taper	MT4	MT4	MT4
Max. distance between spindle nose to table	450mm	450mm	450mm
Spindle travel	130mm	130mm	130mm
Step of speeds	6	6	6
Range of speeds (50Hz)	80-1250r/min	80-1250r/min	160-3150r/min
4 pole motor (60Hz)	100-1500r/min	100-1500r/min	80-1575r/min
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	205mm	205mm	205mm
Left and right travel of table	585mm	585mm	585mm
Power	1.1kw(1.5HP)	1.5kw(2HP)	1.1kw(1.5HP)
Voltage/frequency	As customer's requirement
Net weight/ Gross weight	310kg/350kg	310kg/350kg	320kg/360kg
Packing size (L×W×H)	1032×832×1160(1400)mm	1032×832×1160(1400)mm	1032×832×1160(1400)mm
Item No	143010	143015	143020
