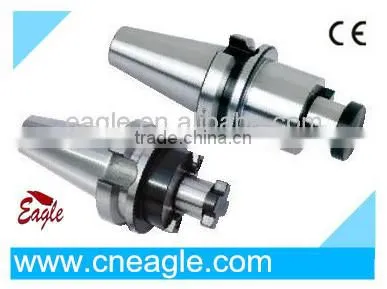

BT Shell Mill Arbors

Specifications

1.Made from carburized alloy steel.
2.Work surface hardness to HRC58~62.
3.Concentrictity and runout <0.005mm in high rpm.

BT Shell Mill Arbors

Features:

1.Made from carburized alloy steel, work surface hardness to HRC58~62.

2.Taper accurary≤ AT3, ensure well contact with spindle cone for high speed

   running to protect the spindle.



3.Concentrictity and runout ≤0.005mm in high rpm.



Item NO.	BT.NO.S	D(mm)	d(mm)	L1(mm)
56190101	30	32	16	60
56190102	30	40	22	60
56190103	30	48	27	60
56190104	30	58	32	60
56190105	30	70	40	60
56190106	40	32	16	45
56190107	40	32	16	60
56190108	40	32	16	120
56190109	40	40	22	45
56190110	40	40	22	60
56190111	40	40	22	100
56190112	40	40	22	120
56190113	40	48	27	75
56190114	40	48	27	60
56190115	40	48	27	75
56190116	40	48	27	105
56190117	40	48	27	120
56190118	40	58	32	45
56190119	40	58	32	60
56190120	40	58	32	75
56190121	40	58	32	120
56190122	40	70	40	60
56190123	40	70	40	75
56190124	40	90	50	70
56190125	50	32	16	60
56190126	50	32	16	75
56190127	50	32	16	120
56190128	50	40	22	60
56190129	50	40	22	75
56190130	50	40	22	100
56190131	50	40	22	120
56190132	50	48	27	60
56190133	50	48	27	105
56190134	50	58	32	60
56190135	50	58	32	75
56190136	50	58	32	105
56190137	50	70	40	60
56190138	50	70	40	75
56190139	50	70	40	90
56190140	50	70	40	100
56190141	50	70	40	105
56190142	50	90	50	60
56190143	50	90	50	70
56190144	50	90	50	120



*When you order please indicate the hilt the concrete form.

1.A model:Without through hole.

2.AD model:With through hole for center coolant.

3.AD/B model:Form AD and farm B, the former is in the center cold. the latter is in the flange plate cold. may realize central cooling and the side cools two forms the freedoms to transform.



*According to needs to be possible to provide the balanced hilt. the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm.
