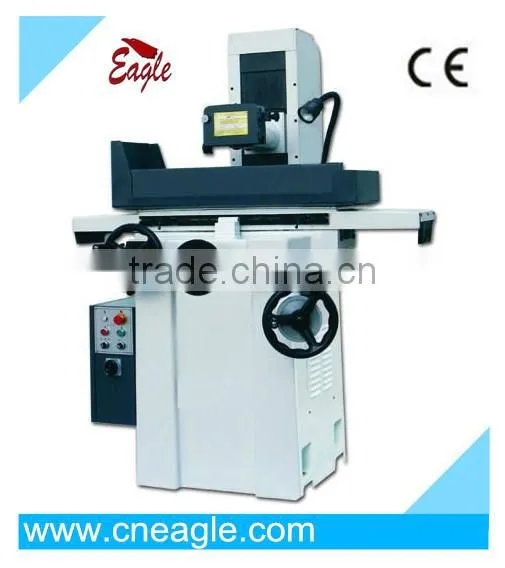

Manual Surface Grinder

Name: Manual Surface Grinder
Brand: Eagle
SKU: 140923812
Availability: InStock

Eagle Industries, Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Place of Origin Shandong, China

Brand Name Eagle

Model Number GM150/200

Certification CE

Specifications

Manual Surface Grinder
1.Pass the CE standard.
2.Best quality resinify cast.
3.Processing of high stability.

Manual Surface Grinder

Model		Unit	GM 150	GM 200	GM 150A	GM 200A
Max. width to be groud		mm	165	220	165	220
Max. length to be groud		mm	470	470	470	520
Max. height to be groud		mm	350	350	350	350
Tabel size		mm	155×460	210×450	150×460	200×520
Permanent magnetic chuck size (optional)		mm	150×400	200×400	150×400	200×450
Max.longitudinal travel of the table		mm	500	500	500	570
Max.cross travel of the table (mm)		mm	185	240	200	250
Max.distance from spindle center to table surface		mm	450	450	450	450
Vertical movement of hand feed	per rew.	mm	1	1	2	2
Vertical movement of hand feed	per div.	mm	0.005	0.005	0.005	0.005
Grinding wheel size (OD×W×ID)		mm	200×13×31.75	200×13×31.75	200×20×31.75	200×20×31.75
Spindle speed		r/min	3450 (60HZ),2850 (50HZ)
Power of spindle head		kw	Standard 1.5(build in spindle:1.1kw)
Max.load capacity(include permanent magnetic chuck)		kg	97	128	110	140
Machine weight		kg	790	920	1000	1120
Machine dimension (L×W×H)		mm	1330×1090×1680	1330×1150×1680	1360×1150×1710	1450×1390×1770
Package dimension (L×W×H)		mm	1340×1120×1930	1400×1200×1980	1670×1560×1930	1670×1700×1980
Item NO.			121010	121015	121011	121016

Standard accessories				Optional accessories
Wheel	1 pc	Wheek dresser	1pc	Permanent magnet plate	1set
Wheel balance bar	1 pc	Level wedge and screw	1set	Dust collector	1set
Hoisting set	4 pcs	Tool box and special wrench	1set	Wheel balance stand	1set
Monkey spanner	1 pc	I llumination lamp	1set	Cooling and dust collecting equipment	1set
Wheel chuck	1 pc
