Frog or Fish Small Size 2m to 1m Manual Leather Toggling Drying Machine

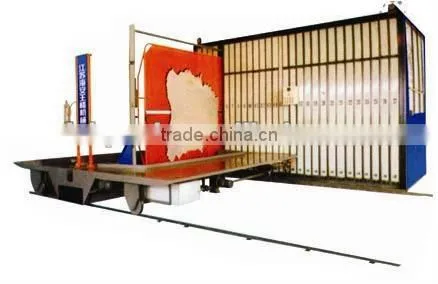

Frog or Fish Small Size 2m to 1m Manual Leather Toggling Drying Machine photo-1
US$ 500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name DUNCHENG
Model Number Leather Toggling drying machine
Type Other, Leather Toggling drying machine
Voltage 380
Power(W) 70
Dimension(L*W*H) 3000x2500x2000
Weight 5600
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

Specifications

Leather Toggling drying machine
1.manual stretch
2.lower temp finalize
3.steam,natural gas ,electric,hot oil
4.1000pcs



Product Description





Leather Toggling drying machine

1.manual strech

2.lower temp finalize the design

3.steam,natural gas as recycling hot energy

4.toggling dry the carton



Technical parameters of

Leather Toggling drying machine

No

Part

Detail

1

Working area

Max length 3500mm,max width 3000mm

2

Toggling number

20-100 pcs

3

Number for leather for stretch once time

60 pcs

4

Max temp of oven

60 degree

5

Steam pressure

0.4-0.6mpa

6

Steam consumption

30L/h

7

Air pressure

4-6h

8

Drying time

0-150mm

9

Range for stretch

Max more 4 person

10

Operate worker

11kw



Material of Leather Toggling drying machine

No

Machine part

 Description

1

Machinery structure

Square pipe weld for dry room, square pipe size:50x50x2, 50x30x2mm





Steel with foam for outside structure , 50mm thickness

2

Toggling structure

Seamless tube n60x4mm, steel pipe n48x4mm,square pipe 40x40x3.5mm, Weld together for toggling

3

Toggling screen

Steel 1.8mm punching into screen

4

Guide system

Each toggling distance is 160mm,guide steel :80x8mm,pulley make the guide system

5

Guide crossbirdge

Weld by 50x30x2.5mm square pipe,10# and 12# u-steel with 50x30x2.5mm square pipe,5#angle iron,8mm A3 steel make up

6

Dry system

The steam as heat source,bolwer (0.75kw,diameter 500mm fan blade),radiator make the dry device.



7.

energy

steam ,gas,electric ,hot oil

Leather Toggling drying machine for machinery process



frog or fish small size 2m to 1m manual Leather Toggling drying machine





frog or fish small size 2m to 1m manual Leather Toggling drying machine





frog or fish small size 2m to 1m manual Leather Toggling drying machine





frog or fish small size 2m to 1m manual Leather Toggling drying machine

Leather Toggling drying machine  certificate





frog or fish small size 2m to 1m manual Leather Toggling drying machine



Leather Toggling drying machine company information







Company Information

 frog or fish small size 2m to 1m manual Leather Toggling drying machinefrog or fish small size 2m to 1m manual Leather Toggling drying machine

Leather Toggling drying machine  famous brand frog or fish small size 2m to 1m manual Leather Toggling drying machine

Leather Toggling drying machine FAQ

FAQ

 frog or fish small size 2m to 1m manual Leather Toggling drying machine



Leather Toggling drying machine buyer list



frog or fish small size 2m to 1m manual Leather Toggling drying machine

Leather Toggling drying machine partner

frog or fish small size 2m to 1m manual Leather Toggling drying machine

Leather Toggling drying machine contact information





frog or fish small size 2m to 1m manual Leather Toggling drying machine







leather type:crocodile,Steer hide,cow,crown,dog skin,saffian,sheep,Wool skin,Cow hide,Calf skin,Kangaroo,Kid skin

Kip skin,Cattle hide,Glace kid,Deer skin,Water buffalo hide,chamois
