Help CenterD3x2.5/D2.5X2.2 Retanning or Dyeing Wooden Drum for Cow Goat Sheep Leather Wooden Drum
Related Products
-
Leather Process Goat Skin Tanning DrumUS$ 2,000 - 400,000MOQ: 1 Piece -
pp Dyeing Drum for Leather ProcessUS$ 30,000 - 60,000MOQ: 1 Piece
-
Leather Process PP DYEING DRUMUS$ 1,000 - 5,000MOQ: 1 Piece
-
Goat Tannery Machine Leather Drum Wood DrumUS$ 2,000 - 40,000MOQ: 1 Piece
-
Leather Tannery Machine Paddl DrumUS$ 1,000 - 5,000MOQ: 1 Piece
retanning or dyeing wooden drum key point
aking ,liming,tanning, retanning ,dyeing
2.40-45% space for use
3.imported Africa IKKI original nature grow tree
4.dry as nature beside sea
5.original wooden diameter enough big for ensure all drum material keep completely group
6.drum running as shaft droved by motor and gear box
7.water recycle by Italy special technical
pletly running shaft
9.stainless steel door
retanning or dyeing wooden drum Specification :
The Specification(mm) |
Φ 3000x2500/2500x2200mm |
|
Drum |
Material |
Imported Ekki |
Plate thickness(plank) |
80mm/70mm |
|
The drum’ s door |
Material and style of the door |
Stainless steel traversing gate |
Dimension of the door |
Size of large door 800x900/500x600, size of small door 400x400 |
|
Gearwheel |
diameter, (modulus) |
Φ 2808, m12 |
Material |
Standard cast- iron |
|
Bracket panel |
Diameter |
Φ 2600 |
Material |
Standard cast- iron |
|
Revolution speed |
About 6.0rpm (made as request) |
|
Motor |
15kw/7.5kw, provide hydraulic coupling |
|
Speed reducer |
463 style Specially used in drum, and provide pneumatic brake |
|
Pinion of the speed reducer |
Wear-resistant copper gear |
|
Drain valve |
All Material are Stainless steel, draining two sides, 2 valves each side |
|
Main spindle and the bearing |
Main spindleZG45#, provide 3538 self-aligning bearing |
|
Outside drum |
CranesΦ 20x16, transverse braceΦ 22x6, vertical rod Φ 20x12, all 45#( Material) |
|
Drum pile |
Wooden drum pileΦ 76xL(total)420, 10 steps, 5/4crisscross |
|
Electrical control cabinet |
Every drum has a cabinet with functions of pros and cons starting, crawl, controlling total working time, reduced voltage starting and brake lag. |
|
retanning or dyeing wooden drum parts brand and quality:
Inverter |
TAIWAN national brand |
Gear box |
China national brand |
motor |
China national brand |
Electric and all running control |
China national brand |
retanning or dyeing wooden drum guarantee time:
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer

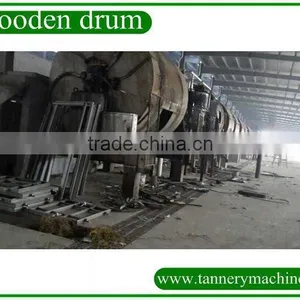

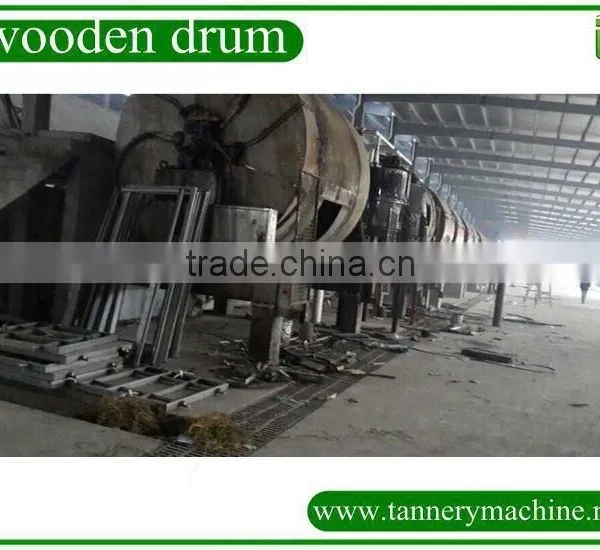

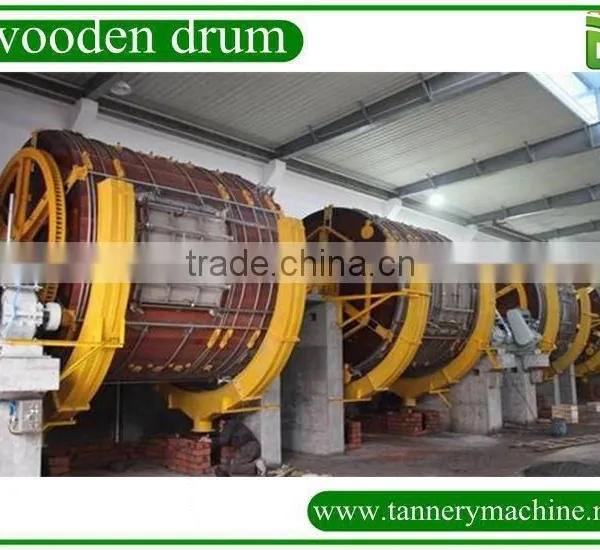

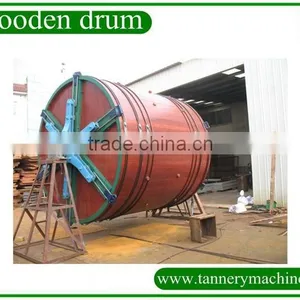

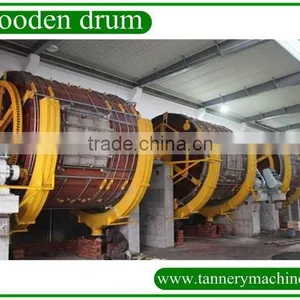

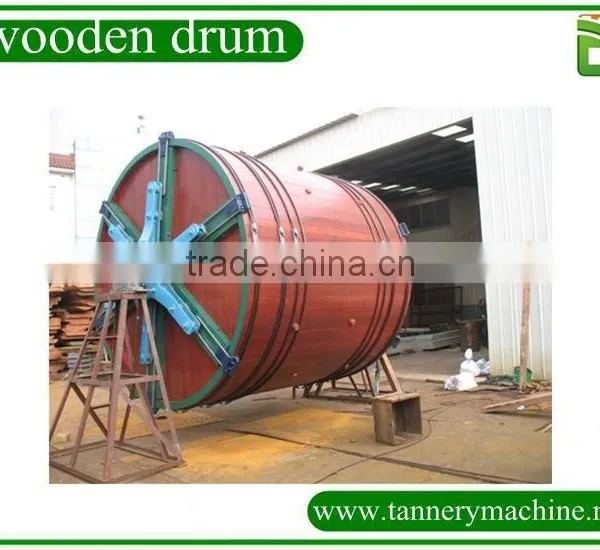

retanning or dyeing wooden drum
retanning or dyeing wooden drum
retanning or dyeing wooden drum
