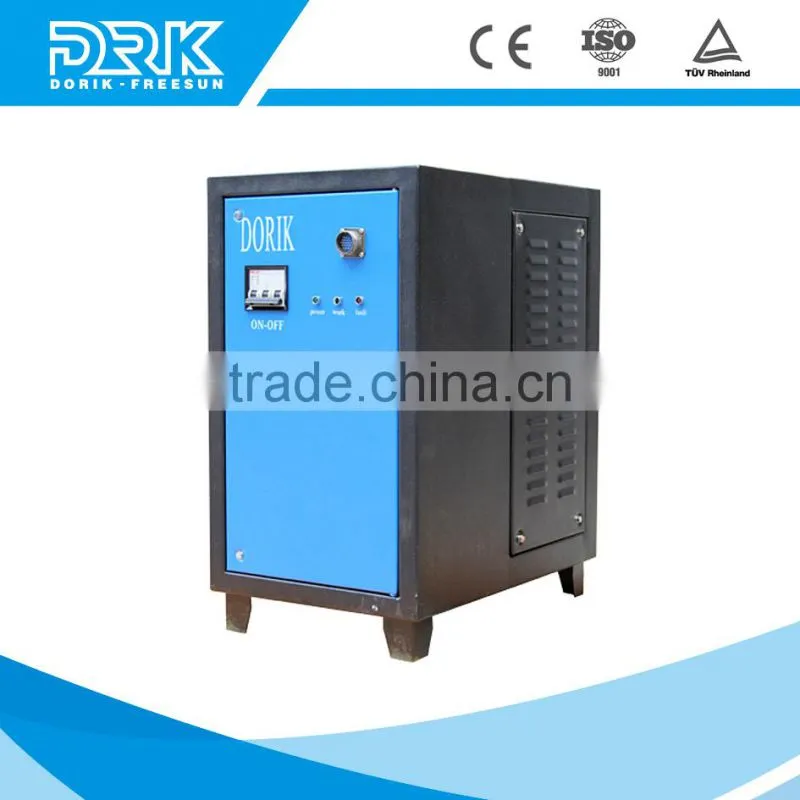

New design transformer rectifier for chrome electroplating
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
type |
DR-3000A-12V |
|
|
Electrical specification |
Input voltage |
3 phase AC220±15% / AC380±15% 50HZ |
Rated output voltage |
0-12V |
|
Rated out current |
0-3000A |
|
Rated out power |
36KW | |
|
Range of output Conditioning |
At 0 to100% of rated voltages |
|
At 0 to100% of rated currents | ||
Adjustment range |
From 0-100%continuously adjustable |
|
Output conditioning method |
Switching mode |
|
Machine efficiency |
≥90% |
|
Constant voltage control accuracy |
Within 1.0%of rated output voltage |
|
Constant current control accuracy |
Within 1.0%of rated output current |
|
Insulation resistance |
5MΩor more |
|
Cooling system |
Water cooling or wind cooling |
|
|
Working condition |
Location |
Indoors |
Ambient temperature |
-20-55°C |
|
Relative humidity |
30-85% |
|
| Input voltage | 220V 380V AC(Three-phase four-wire) 415V AC 50-60HZ |
| Ouput DC current | 0-2000A |
| Ouput DC voltage | 12V 15v,18V 20V 24V 36V Arbitrary choice |
| Voltage stability | ≤1% |
| Current stability | ≤1% |
| Output Frequency | 50-60HZ |
| Working time | Forward direction:1S-99H99M setting Reverse:1S-99H99M setting |
| Ripple factor | 3%-5% |
| Cooling Mode | Forced air cooled Or Water cooled |
| workload | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
| working atmosphere | Temperature range 0 °C ~ 40 °C,Less than 90% humidity. |
1. All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions.
2. Strong technical ability ensures reasonable, professional and safe design.
3. Good quality components are used.
4. Full load testing before shipment.
5. Complete protections.
6. Meet CE requirement.
1) Surface treatment: Electroplating. Electrolytic metal treatment. Metal finishing. Base metals. Non metals and plastics. Barrel plating. Rack plating. Continuous plating. Hard aluminum anodizing. Decorative anodizing.
2) Electrolysis: All major applications. Metal electrowinning. Electrorefining. Sodium hydroxide electrolysis. Salt electrolysis. Sodium chloride electrolysis. Chlor alkali electrolysis. Water electrolysis.
3) Cathodic protection water purification. Water electrocoagulation and inductive heating.
