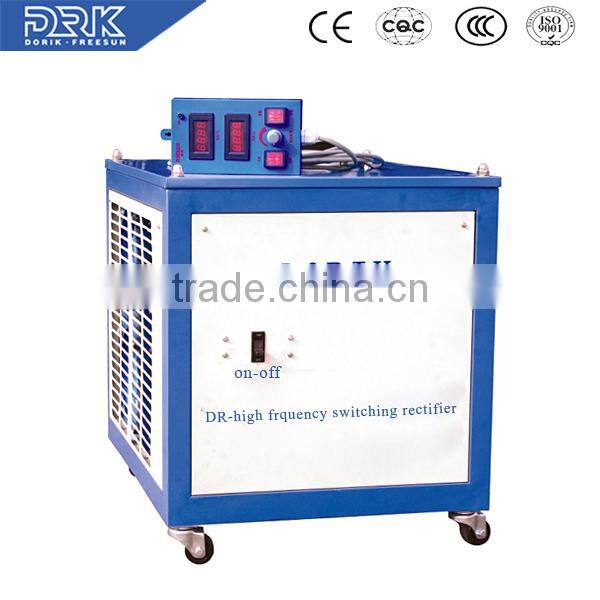

Help CenterAutomatic Periodic Reversing Water Treatment Rectifer & Power Supply,rs485,PLC
Related Products
-
High Current ac dc Water Treatment Rectifier for Sewage With RS485NegotiableMOQ: 1 Unit -
Water Electrolyser Industrial Power SupplyUS$ 2,300 - 3,000MOQ: 1 Unit
-
IGBT Electrolysis Rectifier for Sewage TreatmentNegotiableMOQ: 1 Unit
-
Electrolysis Water Treatment 50v Switching Power SupplyNegotiableMOQ: 1 Unit
-
3000A-36V High Performance Electrolyzer Sewage Power Supply for SewageNegotiableMOQ: 1 Unit
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
IGBT Rectifier advantages:
1)High stability
2) Fast response and high precision control, output control the whole accuracy can reach 1%
3) Commutation control ,according to the request of the manual reversing or automatic reversing function, may realize the automatic commutation cycle
4) Complete protection functions
5) ApplicationScope:Suitable for electrolytic polishing, electrolytic sewage, metallurgical industry,
electrolytic nickel, aluminum, copper, electrolytic chemical industry etc.
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0-36V adjustable |
| Output current | DC 0-2000A adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
Shape dimension
Specification | Size(mm) Outline | ||||
| L | W | H | N.W | G.W |
DR-100A-12V | 450 | 430 | 150 | 19 | 22 |
DR-200A-12V | 560 | 460 | 180 | 22 | 25 |
DR-300A-12V | 700 | 465 | 240 | 36 | 39 |
DR-500A-12V | 700 | 465 | 240 | 48 | 52 |
2. Working principle & products details
Principle block diagram:

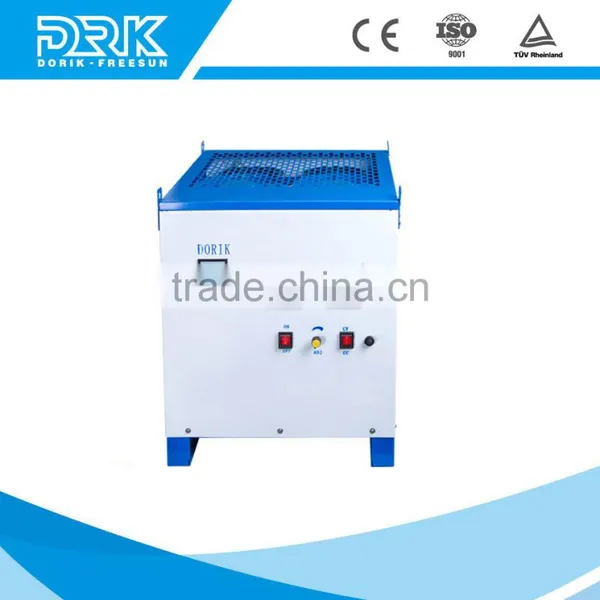

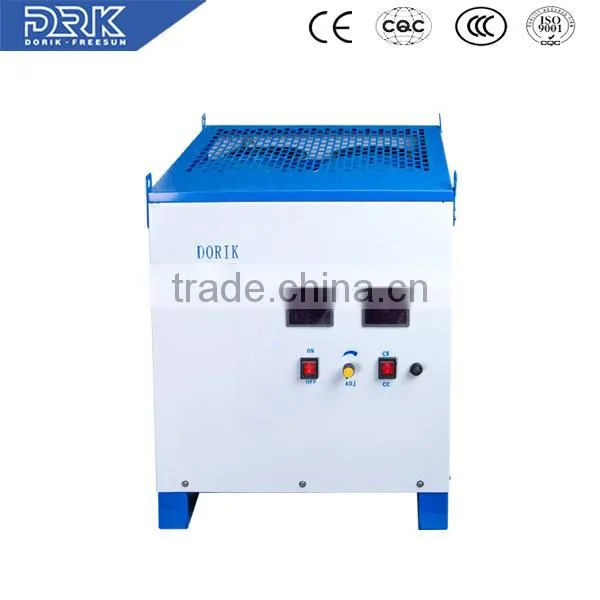

PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;
3.2Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used .
3.4 Full load testing before shipment ;
3.5 Complete protections
3.6 Meet CE requirement .
4.Packing &Shipment
5. Application Fields
1) Surface treatment : Electroplating . Electrolytic metal treatment. metal finishing. base metals, Non metals and Plastics. Barrel plating, rack plating, continuous plating, hard Aluminum anodizing, decorative anodizing.
2) Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali electrolysis, water electrolysis.
3) Cathodic protection Water Purification ,water electrocoagulation and Inductive heating .
6.After Service.
1. If components are broken within guarantee period due to power supply design or component bad quality, supply replacement free.
2. For overseas customers, in case of problems with power supply, respond within 24 hours from receiving customer's written inform.
3. Supply detailed operation manual and troubleshooting table .
4. Supply technical support to find out problem reason and guidance of troubleshooting.
