Communication With RS485 Water Treatment dc Power Supply
- NIngbo or Shanghai
- T/T Credit Card
You May Like
-
Front Panel Control Waste Water Treatment Bridge Rectifier
-
34V/36V/40V/48V IGBT Module Switching Water Treatment Power Supply
-
Front Panel Control Three Phase Rectifier for Water Treatment
-
Ac to dc Water Treatment Adjustable Power Supply
-
Supply Environmental Protection Switching Power Supply for Water Treatment
-
Heavy Metal Waste Water Treatment ac dc Rectifier
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dorik | |
| Model Number | DR-C-1200A-36V | Output Power | Other, >500W | |
| Output Type | Triple | Input Voltage | Other, 380V, 3 phase AC 220/380/415/480 50/60Hz | |
| Output Voltage | 32V,34V,36V,40V | Output Current | 850A,900A,1000A,1200A |
Product Description

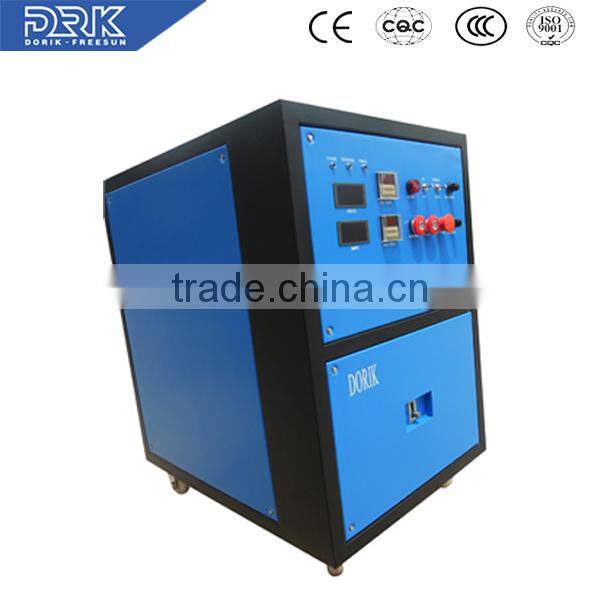

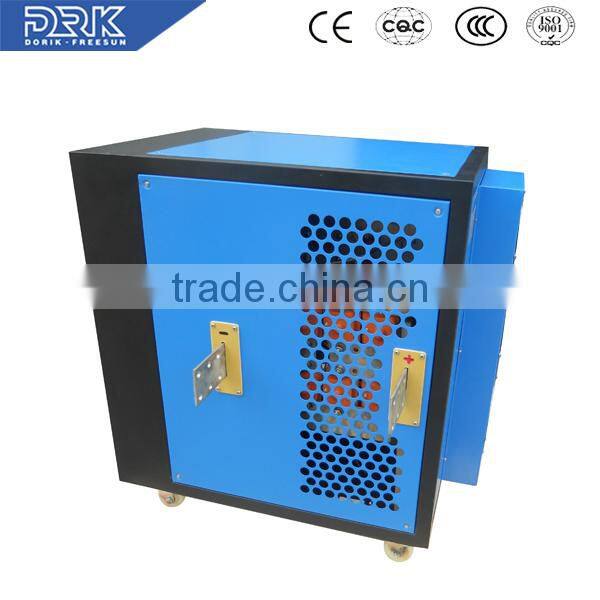

communication with RS485 water treatment dc power supply
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
Advantage:
1) small, light and high efficiency
2) High frequency pulse current output
3) flexible use, simple operation
4) Complete protection function
Application: Generally used in metallurgy waste water , mineral processing wastewater,heavy metal wastewater, chemical industry.
1.Product Parameters
| ITEMS | Technical parameters |
| AC input voltage | 3 phase 220V, 380V, 415V, 480V 50/60Hz |
| Output voltage | DC 32V,34V,36V,40V customizable |
| Output current | DC 850A,900A,1000A,1200A customizable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | Overheat, input over/under voltage, output overvoltage, output overcurrent, over water temperature, under water pressure. |
2. Working principle & products details
Principle block diagram:
PRODUCTS DETAILS:
3.Quality assurance &Controling
3.1 All units guaranteed 24 months from supply against failure, bad workmanship and material defects excluding misuse of operational conditions ;
3.2Strong technical ability ensures reasonable, professional and safe design;
3.3 Good quality components are used .
3.4 Full load testing before shipment ;
3.5 Complete protections
3.6 Meet CE requirement .
4.Packing &Shipment
5. Application Fields
1) Surface treatment : Electroplating . Electrolytic metal treatment. metal finishing. base metals, Non metals and Plastics. Barrel plating, rack plating, continuous plating, hard Aluminum anodizing, decorative anodizing.
2) Electrolysis. All major applications. Metal electrowinning, electrorefining, sodium hydroxide electrolysis, salt electrolysis, sodium chloride electrolysis, chlor alkali electrolysis, water electrolysis.
3) Cathodic protection Water Purification ,water electrocoagulation and Inductive heating .

7. CONTACT WAY .
Company Name: Ningbo Dorik Co., Ltd.
Tel: 0086-574-89075894-824 (Camille)
Skype: camillewjy
WhatsApp: +86 18758481953
Website: http://www.dorik.en.china.cn
All emails will be replied within 24 hours. Please leave a message in the Trade Manager. Thank you for ordering and hope you enjoy your purchase here. You comments are always welcomed andvery important in our long-term business corporation.
